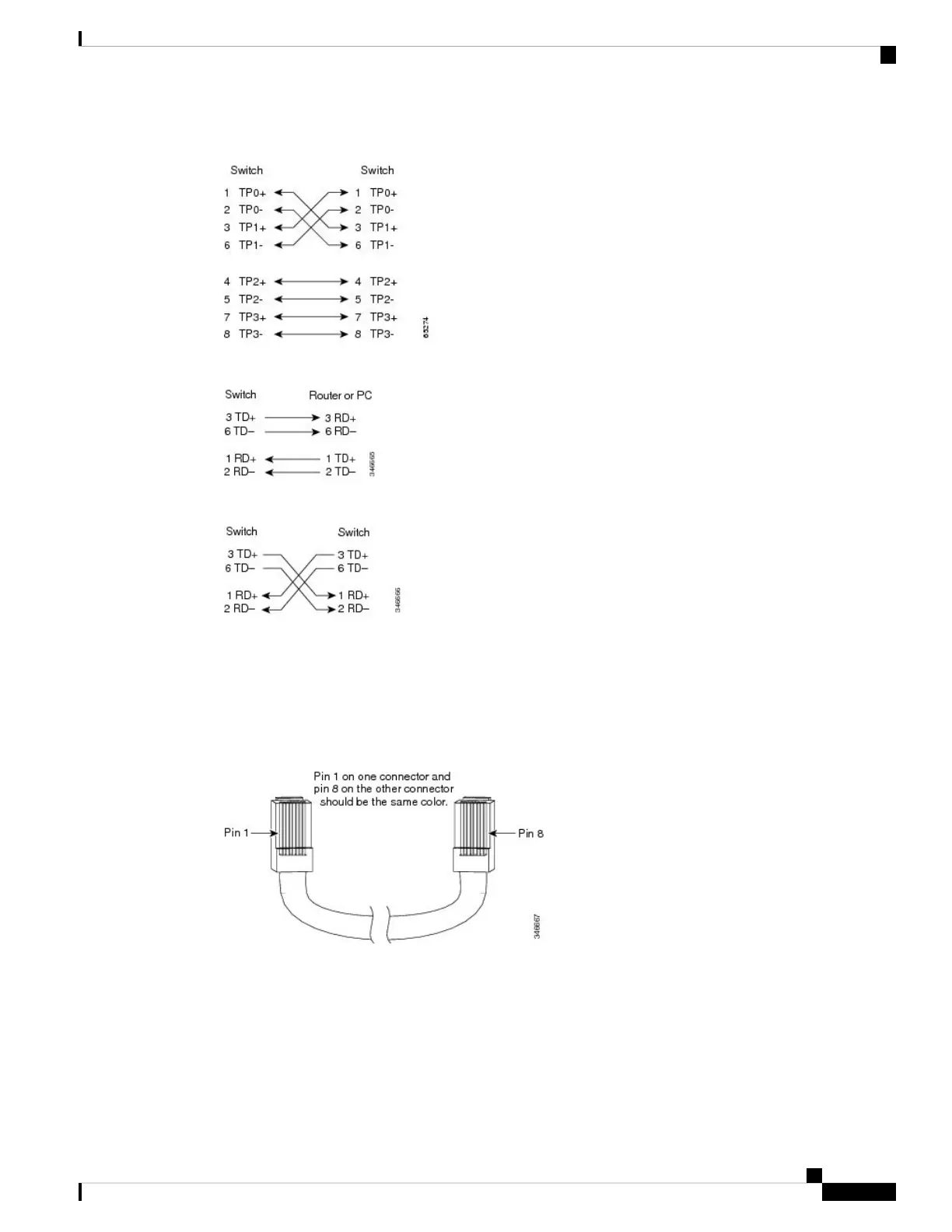

Figure 98: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 99: Two Twisted-Pair Straight-Through Cable Schematic
Figure 100: Two Twisted-Pair Crossover Cable Schematic
Identifying a Crossover Cable
To identify a crossover cable, compare the two modular ends of the cable. Hold the cable ends side-by-side,
with the tab at the back. The wire connected to the pin on the outside of the left plug should be a different
color from the wire connected to the pin on the inside of the right plug.
Figure 101: Identifying a Crossover Cable
Console Port Adapter Pinouts
The RS-232 console port uses an 8-pin RJ-45 connector. Use an RJ-45-to-DB-9 adapter cable to connect the
switch console port to a console PC. You need to provide a RJ-45-to-DB-25 female DTE adapter to connect
the switch console port to a terminal.
Catalyst 3850 Switch Hardware Installation Guide
123OL-26779-05
Connector and Cable Specifications
Console Port Adapter Pinouts

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
