Cisco Catalyst C3850 Series User Manual

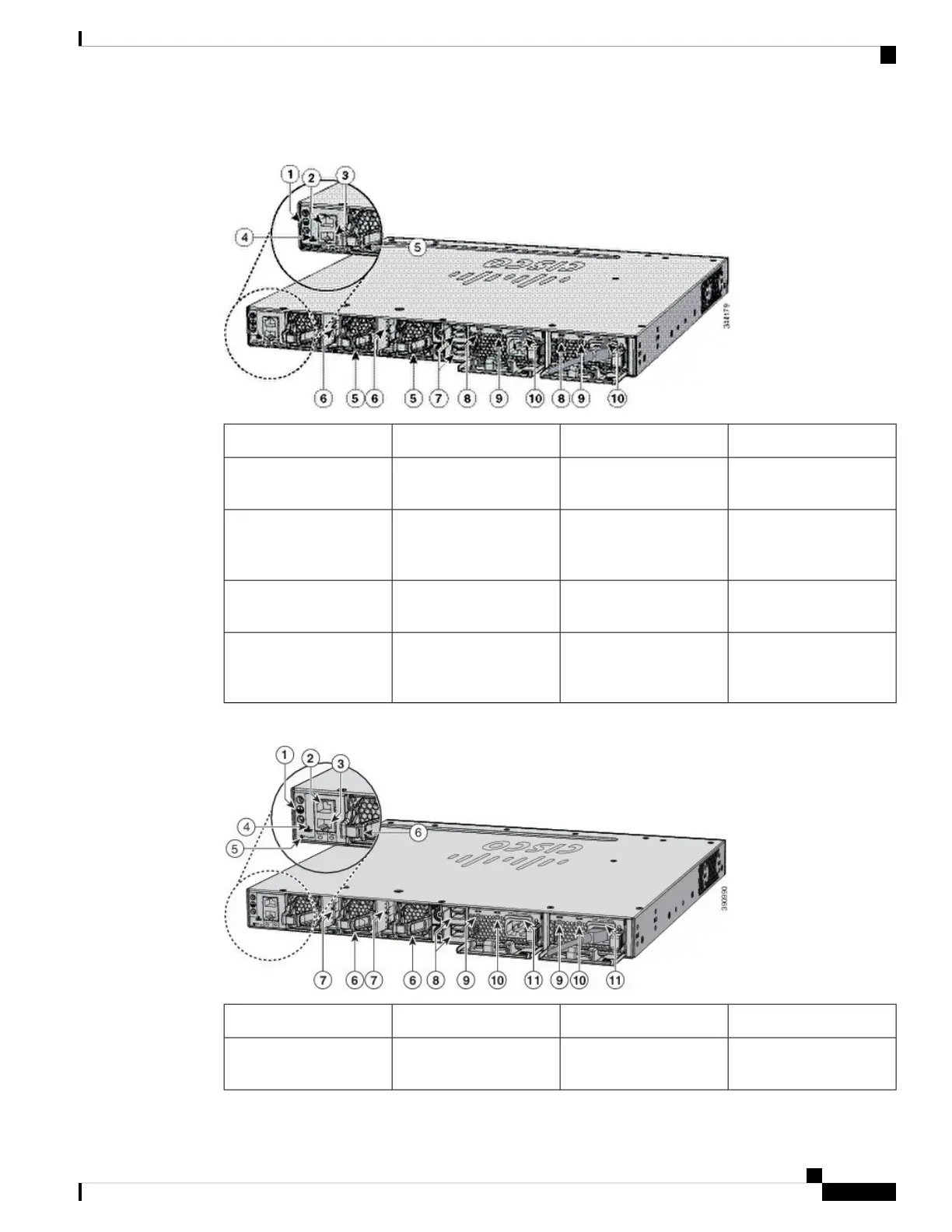

Figure 11: Catalyst 3850 Switch Rear Panel
StackWise port connector6Ground connector1
StackPower connector7CONSOLE (RJ-45
console port)
2
AC OK (input) status
LED
8MGMT (RJ-45
10/100/1000 management
port)
3
PS OK (output) status
LED
9RESET button4
Power supply modules
(AC power supply
modules shown)
10Fan module5
Figure 12: WS-C3850-12S and WS-C3850-24S Switches Switch Rear Panel
StackWise port connector7Ground connector1
StackPower connector8CONSOLE (RJ-45
console port)
2
Catalyst 3850 Switch Hardware Installation Guide
23OL-26779-05
Product Overview
Rear Panel

Cisco Catalyst C3850 Series Specifications

General

Max Stacking Units	9
Layer Support	Layer 2 and Layer 3
RAM	4 GB
Flash Memory	4 GB
Series	Catalyst 3850
Power Supply Options	AC or DC
Software	Cisco IOS XE
Operating Temperature	32 to 113°F (0 to 45°C)
Ports	12, 24, or 48 x 10/100/1000 Ethernet ports
Uplink Interfaces	Optional 10G uplinks
