Chapter 5 Web GUI Setup and Monitoring
Viewing Hardware Features and Software License Information

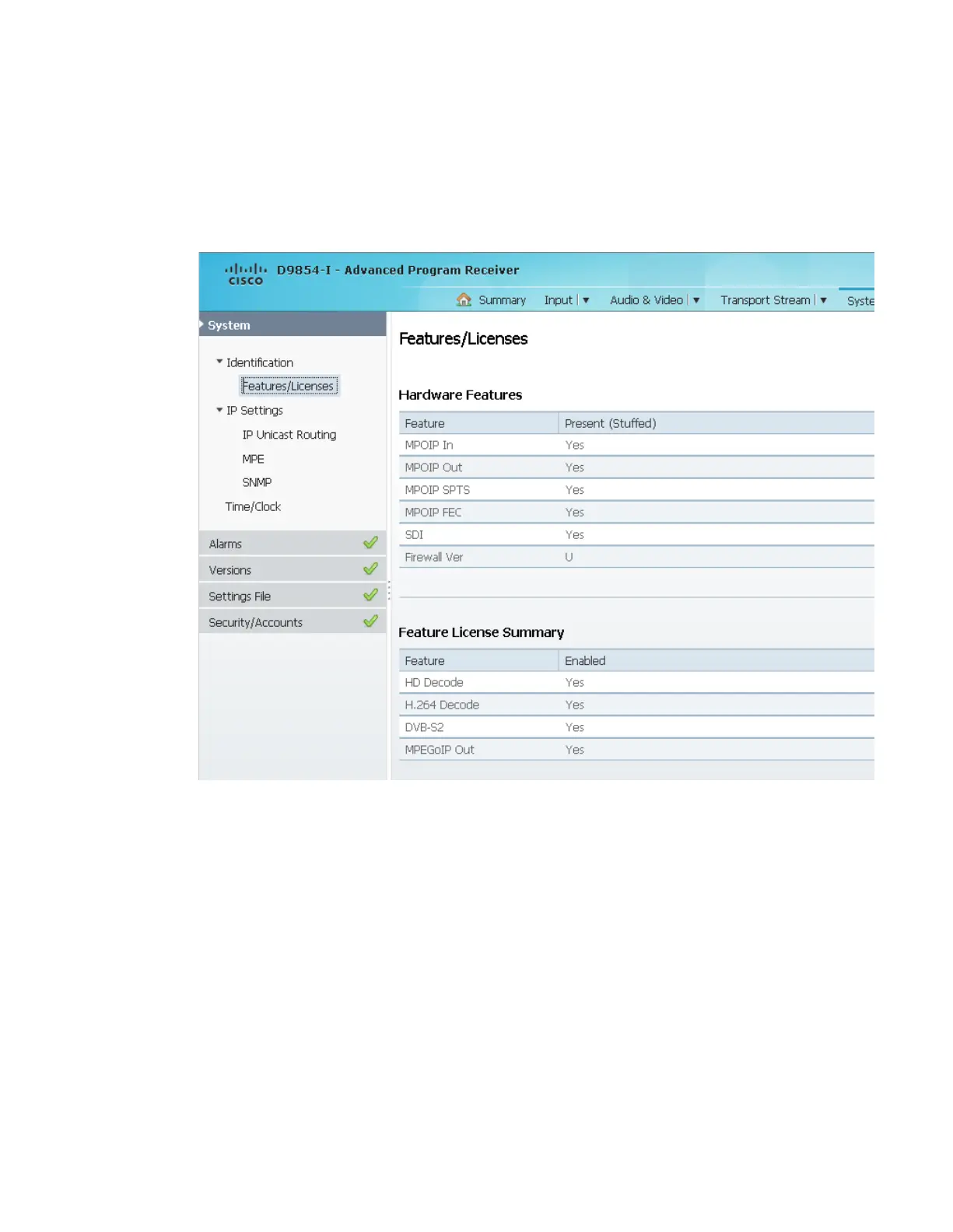

From the user interface of the D9854/D9854-I, choose System Settings >
Identification > Features/Licenses. The Features/Licenses page is displayed. The
following is an example of the D9854-I Features/Licenses page:
The Hardware Features area displays the hardware options installed in the current
D9854/D9854-I Advanced Program Receiver. For example, it indicates whether the
receiver equipped with an SDI output.
The Feature License Summary area displays a list of software licenses for the
D9854/D9854-I Advanced Program Receiver and whether each of the software
licenses are enabled or disabled.
Note: All software licenses are enabled for this release (temporarily). Any of these
required licenses will need to be purchased from Cisco in subsequent software
releases.
