D9854/D9854-I Receiver Rear Connector Panel

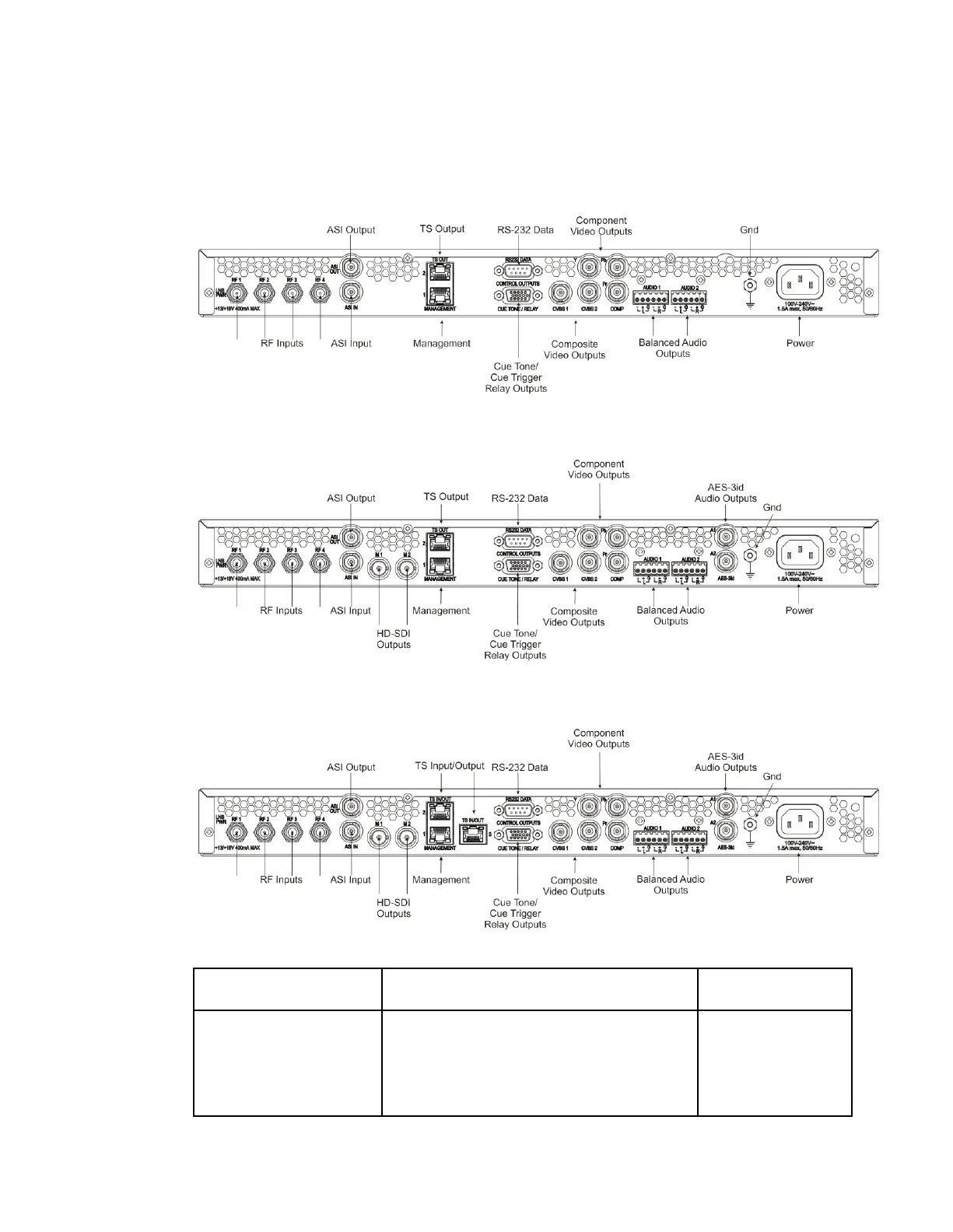

The following diagrams show the rear connector panel of the D9854 base model:
The following displays the rear connector panel of the D9854, with SDI, SD/HD-SDI,
and AES outputs:
The following displays the rear connector panel of the D9854-I receiver, with SDI
and MPEGoIP Input:
The following table describes the function and type of the various connectors.
Each input accepts an LNB signal input.
RF1 provides LNB power for use when no
external LNB power source is available. RF2
to RF4 require an external LNB power
source.
