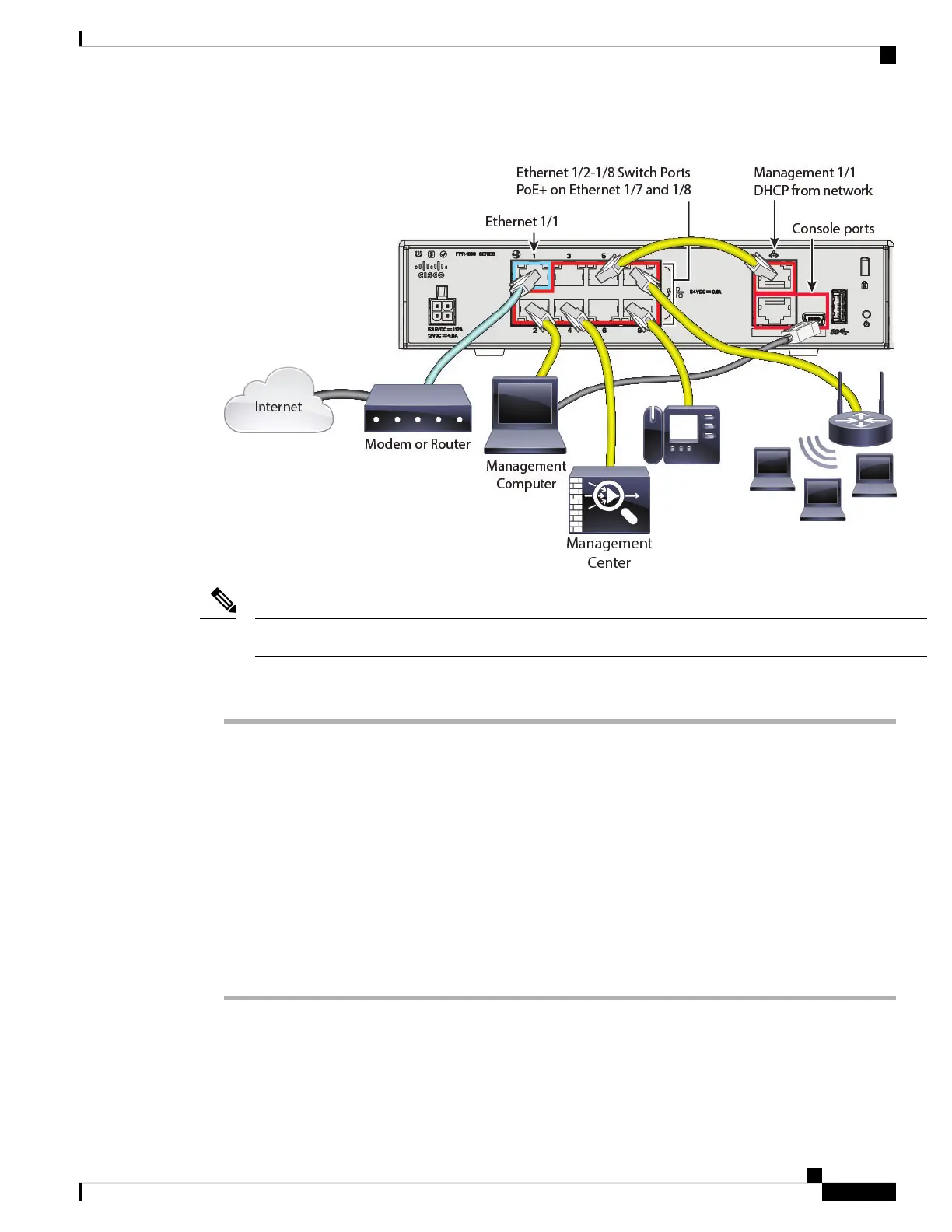

Figure 3: Cabling the Firepower 1010
For version 6.5 and earlier, the Management 1/1 default IP address is 192.168.45.45.
Note
Procedure
Step 1 Install the chassis. See the hardware installation guide.
Step 2 Connect Management1/1 directly to one of the switch ports, Ethernet1/2 through 1/8.
Step 3 Cable the following to the switch ports, Ethernet1/2 through 1/8:
• Management Center
• Management computer
• Additional end points
Step 4 Connect the management computer to the console port. You need to use the console port to access the CLI
for initial setup if you do not use SSH to the Management interface or use the device manager for initial setup.
Step 5 Connect Ethernet 1/1 to your outside router.
Cisco Firepower 1010 Getting Started Guide
11
Threat Defense Deployment with the Management Center
Cable the Device (6.5 and Later)
