Cable the Device

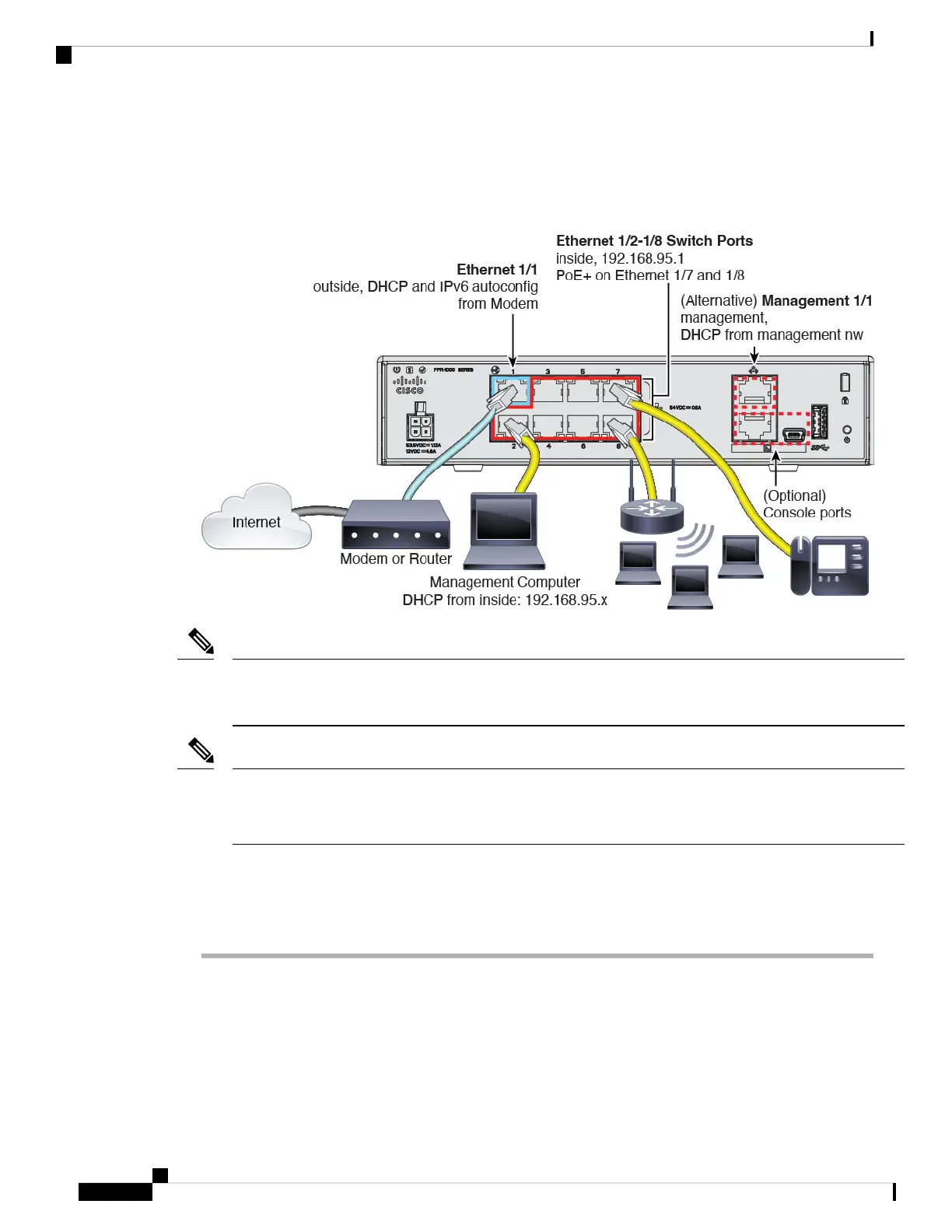

Figure 26: Cabling the Firepower 1010
For 6.7 and earlier, the inside IP address is 192.168.1.1.
For version 6.5 and earlier, the Management 1/1 default IP address is 192.168.45.45.
Note
In version 6.5 and later, Ethernet1/2 through 1/8 are configured as hardware switch ports; PoE+ is also available
on Ethernet1/7 and 1/8. In version 6.4, Ethernet1/2 through 1/8 are configured as bridge group members
(software switch ports); PoE+ is not available. The initial cabling is the same for both versions.
Note
Manage the Firepower 1010 on either Management 1/1 or Ethernet 1/2 through 1/8. The default configuration
also configures Ethernet1/1 as outside.
Procedure
Step 1 Install and familiarize yourself with your hardware using the hardware installation guide.
Step 2 Connect your management computer to one of the following interfaces:
• Ethernet 1/2 through 1/8—Connect your management computer directly to one of the inside switch ports
(Ethernet 1/2 through 1/8). inside has a default IP address (192.168.95.1) and also runs a DHCP server
to provide IP addresses to clients (including the management computer), so make sure these settings do
not conflict with any existing inside network settings (see Default Configuration, on page 92).
Cisco Firepower 1010 Getting Started Guide
94
Threat Defense Deployment with the Device Manager
Cable the Device

Cisco Firepower 1010 Specifications

General

VPN Throughput	500 Mbps
Concurrent Sessions	100, 000
Maximum Concurrent Sessions	200, 000
Ports	8 x 1 GE
Humidity	10% to 90% non-condensing
Form Factor	Desktop
Flash Memory	8 GB
Interfaces	8 x RJ-45
Power Supply	Internal
Dimensions (H x W x D)	4.44 x 21.59 x 17.27 cm
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-20 to 70°C
Memory	4 GB
