1-7
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 1 Overview
Front-Panel Description

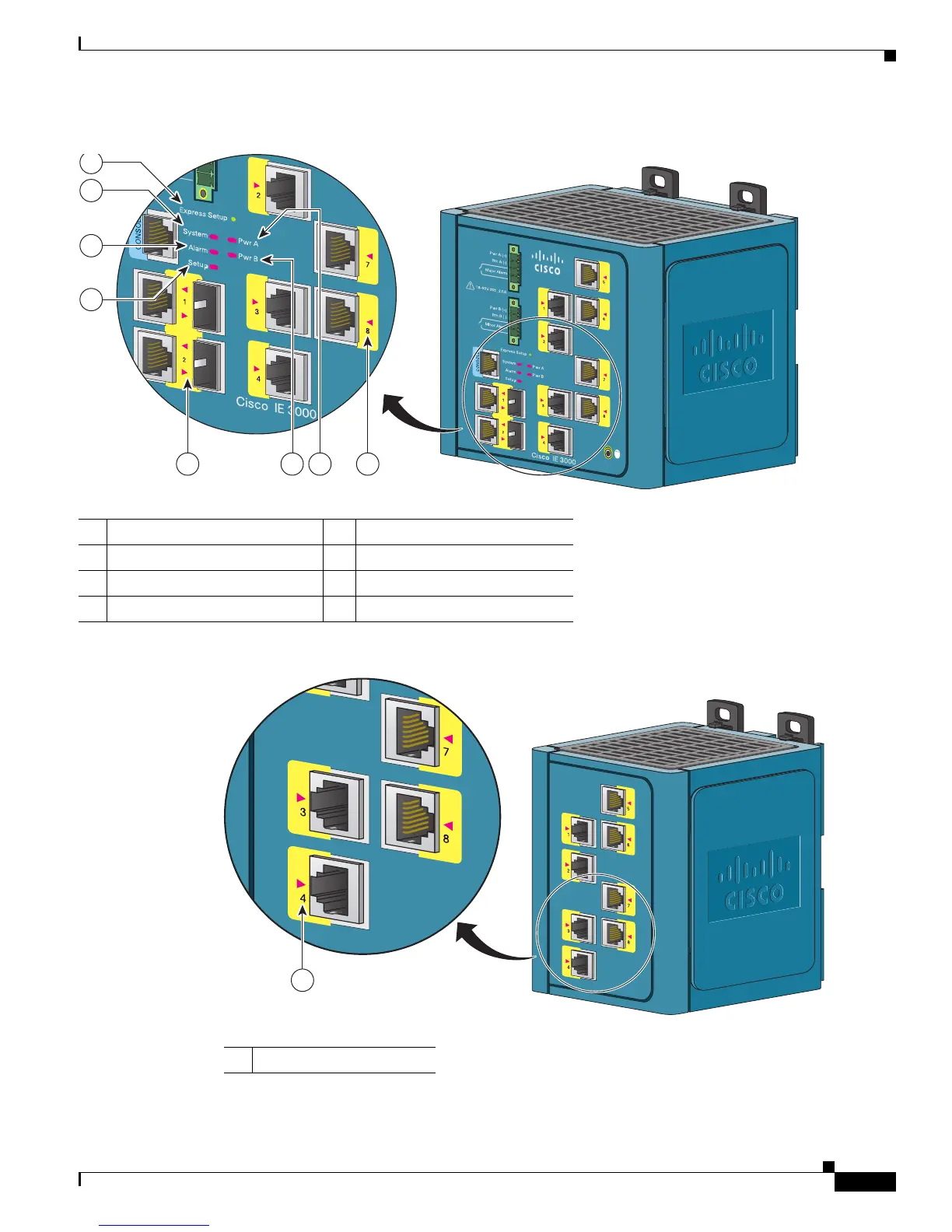

Figure 1-6 LEDs on the Cisco IE 3000 Switch
Figure 1-7 LEDs on the Cisco IEM-3000-8TM Module
1 Express setup button 5 Dual-purpose uplink port LED
2 System LED 6 Pwr B LED
3 Alarm LED 7 Pwr A LED
4 Setup LED 8 Port LED
201703
85
6
7
3
4
2
1
1 10/100 port LED
201706
1
