Appendix B Installation In a Hazardous Environment
Connecting the Switch to the Power Converter
Figure B-41 Connecting Wires to the Power Converter DC Output Terminal Block
Step 3 Use a ratcheting torque flathead screwdriver to tighten the captive screw to 2 in-lb.
Caution Do not over-torque the power and relay connector captive screws. The torque should not exceed 2 in-lb.
Connecting the Power Converter to an AC Power Source
These sections describe the steps required to connect the power converter to an AC power source:
• Preparing the AC Power Cord, page B-53
• Connecting the AC Power Cord to the Power Converter, page B-54
Preparing the AC Power Cord
To connect the power converter to an AC power source, you need a standard 18-gauge, unterminated AC
power cord. See
Figure B-42. Power cord connector types vary by country. Power-cord color codes also
vary by country. See Table 2-2.
Note Use copper conductors only, rated at a minimum temperature of 167°F (75°C).

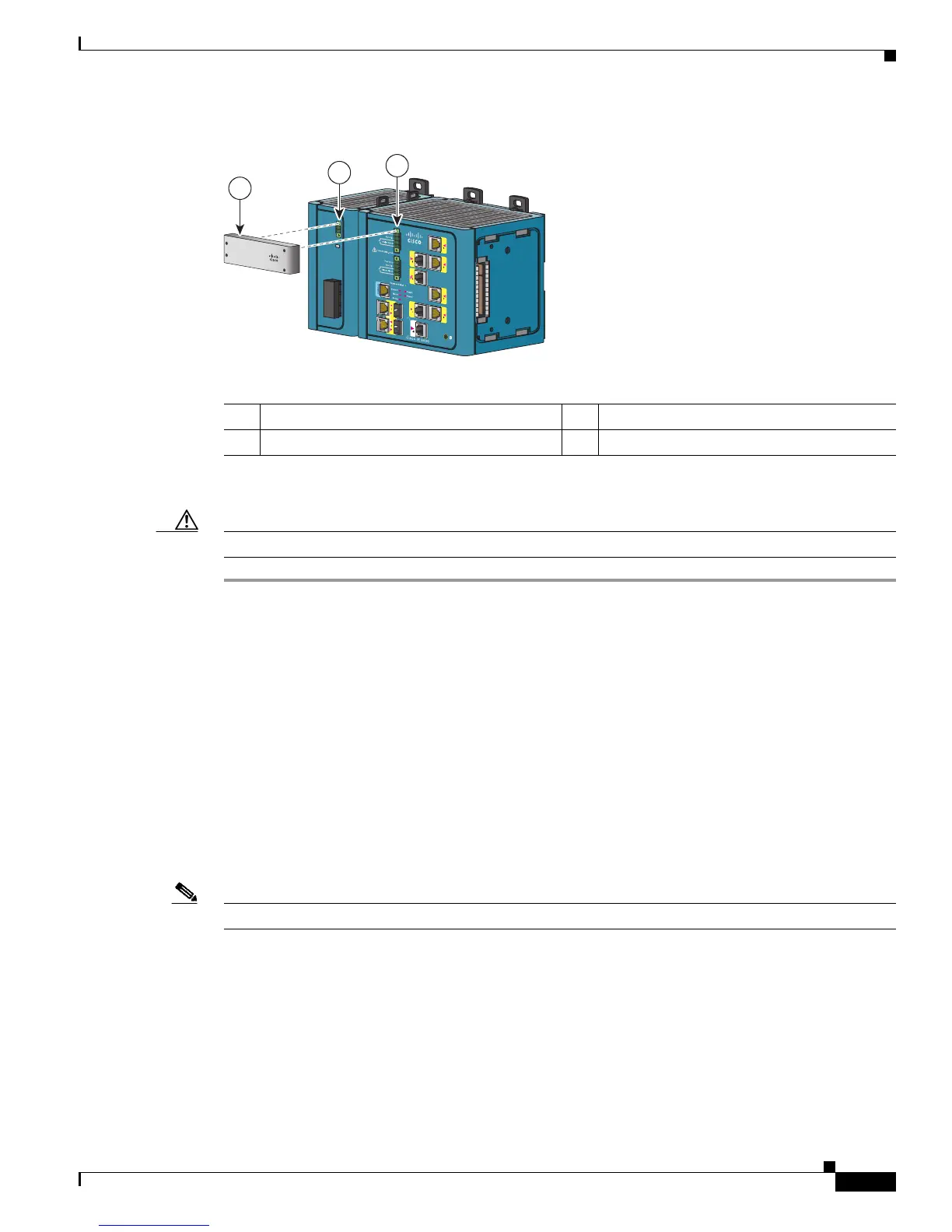

1 DC power clip 3 Four-pin connector on the switch
2 Two-pin connector on the power convertor
202298
1
5
2
6
3
7
4
8
CONSOLE
1
2
1
2
3

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
