Chapter 2 Switch Installation
Connecting the Switch to the Power Converter

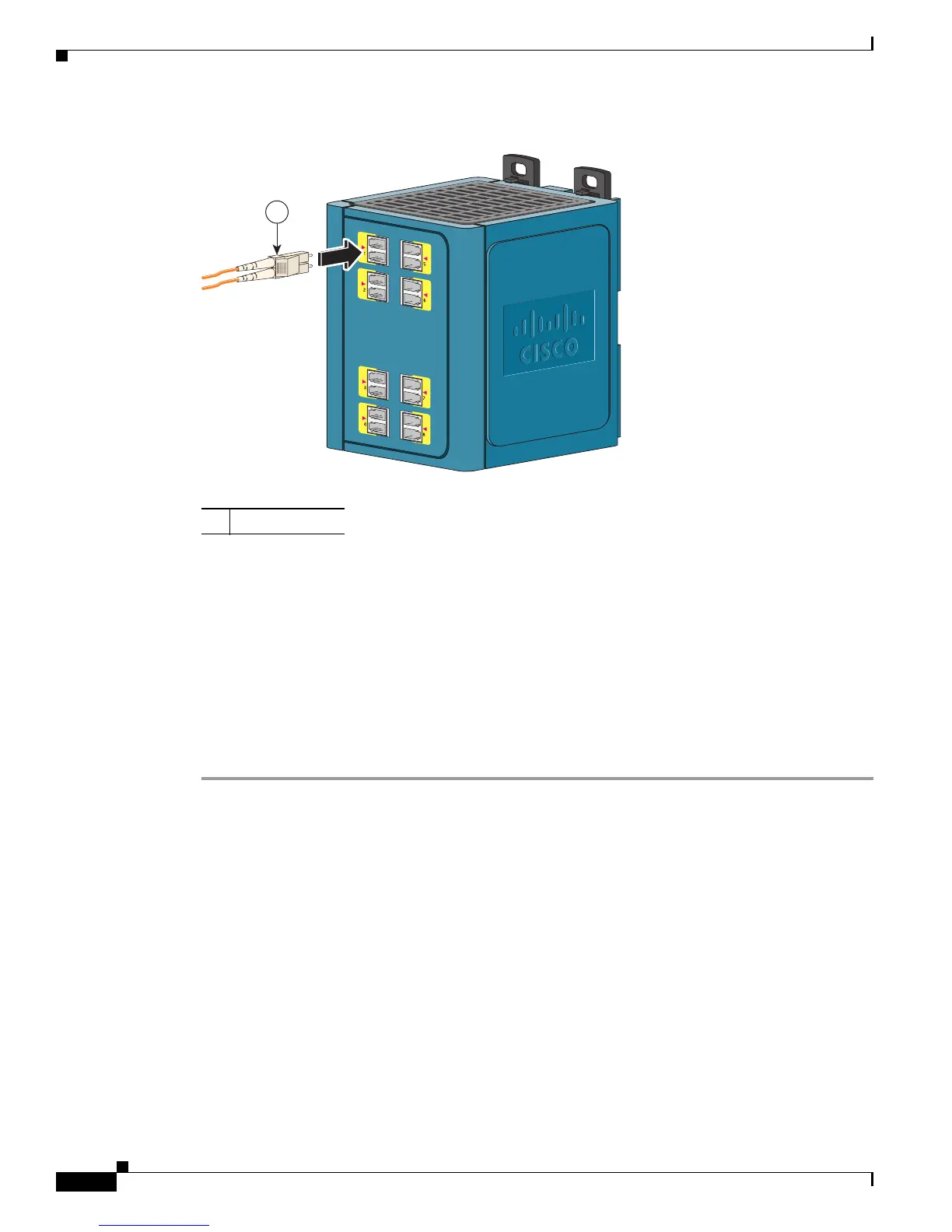

Figure 2-37 Connecting to a Fiber-Optic SFP Module Port
Step 3 Insert the other cable end into a fiber-optic receptacle on a target device.
Step 4 Observe the port status LED.
The LED turns green when the switch and the target device have an established link.
The LED turns amber while the STP discovers the network topology and searches for loops. This process
takes about 30 seconds, and then the port LED turns green.
If an LED is off, the target device might not be turned on, there might be a cable problem, or there might
be a problem with the adapter installed in the target device. See
Chapter 3, “Troubleshooting,” for
solutions to cabling problems.
Step 5 If necessary, reconfigure and restart the switch or target device.
Connecting the Switch to the Power Converter
The Cisco IE 3000 switch can be used with an optional AC/DC power converter (PWR-IE3000-AC).
These sections describe the steps required to connect the switch to a power converter:
• Attaching the Power Converter to the Switch, page 2-45
• Installing the Power Converter on a DIN Rail, Wall, or Rack Adapter, page 2-46
• Connecting the DC Power Clip, page 2-46
• Connecting the Power Converter to an AC Power Source, page 2-47
• Connecting the Power Converter to a DC Power Source, page 2-51
• Applying Power to the Power Converter, page 2-53
1 LC connector
1
202031

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
