Cisco IE-3000-8TC Hardware Installation Guide

2-8
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Adding Modules to the Switch
Connecting Modules
Follow these directions to connect the expansion modules to the switch:
Step 1 Remove the side panel by firmly grasping both sides of it in the middle and pulling it outward. If
necessary, use a screwdriver to pry open the side panel. See
Figure 2-2.

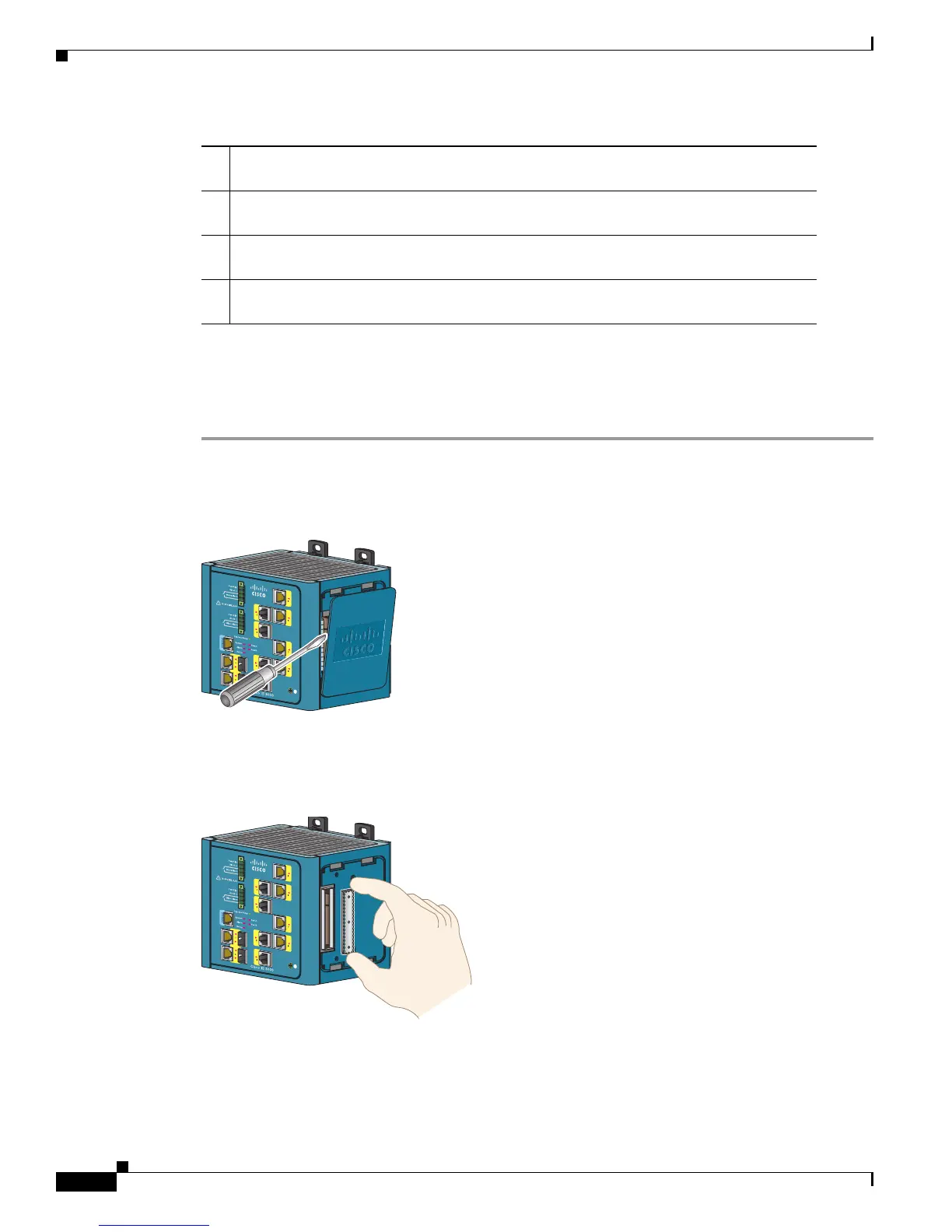

Figure 2-2 Opening the Side Panel of the Cisco IE-3000-8TC Switch
Step 2 Remove the EMI protective cover from the connector on the switch. See Figure 2-2.
Figure 2-3 Removing the EMI Cover
1 Cisco IE-3000-4TC switch with Cisco IEM-3000-8TM and Cisco IEM-3000-8FM
expansion modules (12 FE and 8 FX ports)
2 Cisco IE-3000-4TC switch with one Cisco IEM-3000-8FM expansion module
(4 FE and 8 FX ports)
3 Cisco IE-3000-4TC switch with one Cisco IEM-3000-8TM expansion modules
(12 FE ports)
4 Cisco IE-3000-4TC switch with two Cisco IEM-3000-8TM expansion modules
(20 FE ports)
201822
203759

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
