Cisco IE-3000-8TC Hardware Installation Guide

2-23
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Installing the Switch
Installing the Switch
This section describes how to install the switch:
• Installing the Switch on a DIN Rail
• Installing the Switch on the Wall
• Installing the Switch in a Rack
Warning This equipment is supplied as “open type” equipment. It must be mounted within an enclosure that is
suitably designed for those specific environmental conditions that will be present and appropriately
designed to prevent personal injury resulting from accessibility to live parts. The interior of the
enclosure must be accessible only by the use of a tool.
The enclosure must meet IP 54 or NEMA type 4 minimum enclosure rating standards. Statement 1063
Caution To prevent the switch from overheating, ensure these minimum clearances:
– Top and bottom: 4.13 in. (105 mm)
– Exposed side (not connected to the module): 3.54 in. (90 mm)
– Front: 2.56 in. (65 mm)
Installing the Switch on a DIN Rail
The switch ships with latches on the rear panel for a mounting on a DIN rail. See Figure 2-18.

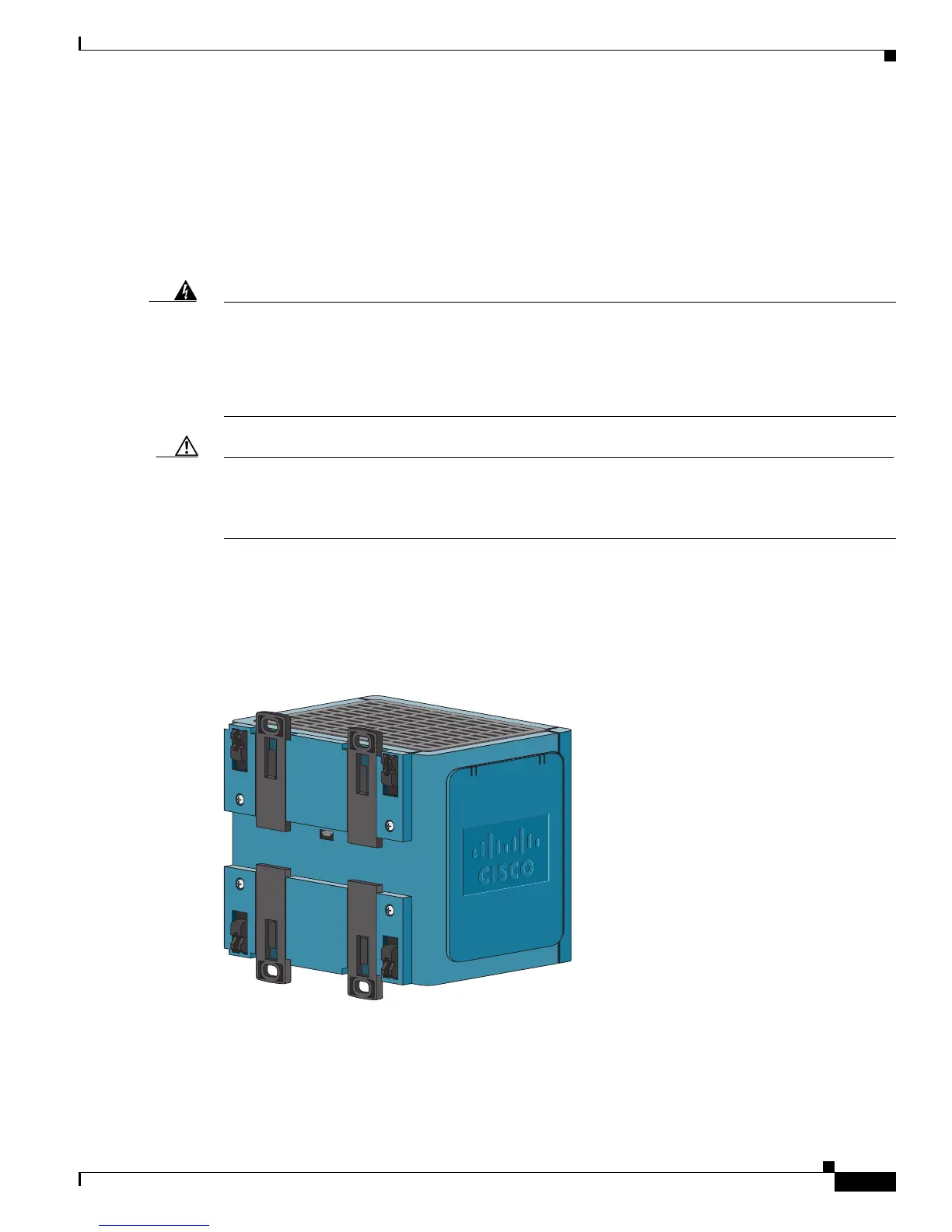

Figure 2-18 Cisco IE 3000 Switch Rear Panel
You can install the switch as a standalone device on the DIN rail or with the expansion modules already
connected. You must connect expansion modules to the switch before installing the switch on the DIN
rail. To connect the modules to the switch, follow the steps described in the
“Adding Modules to the
Switch” section on page 2-5.
203976

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
