Chapter 1 Overview
Compact Flash Memory Card
Dual-Purpose Port LEDs

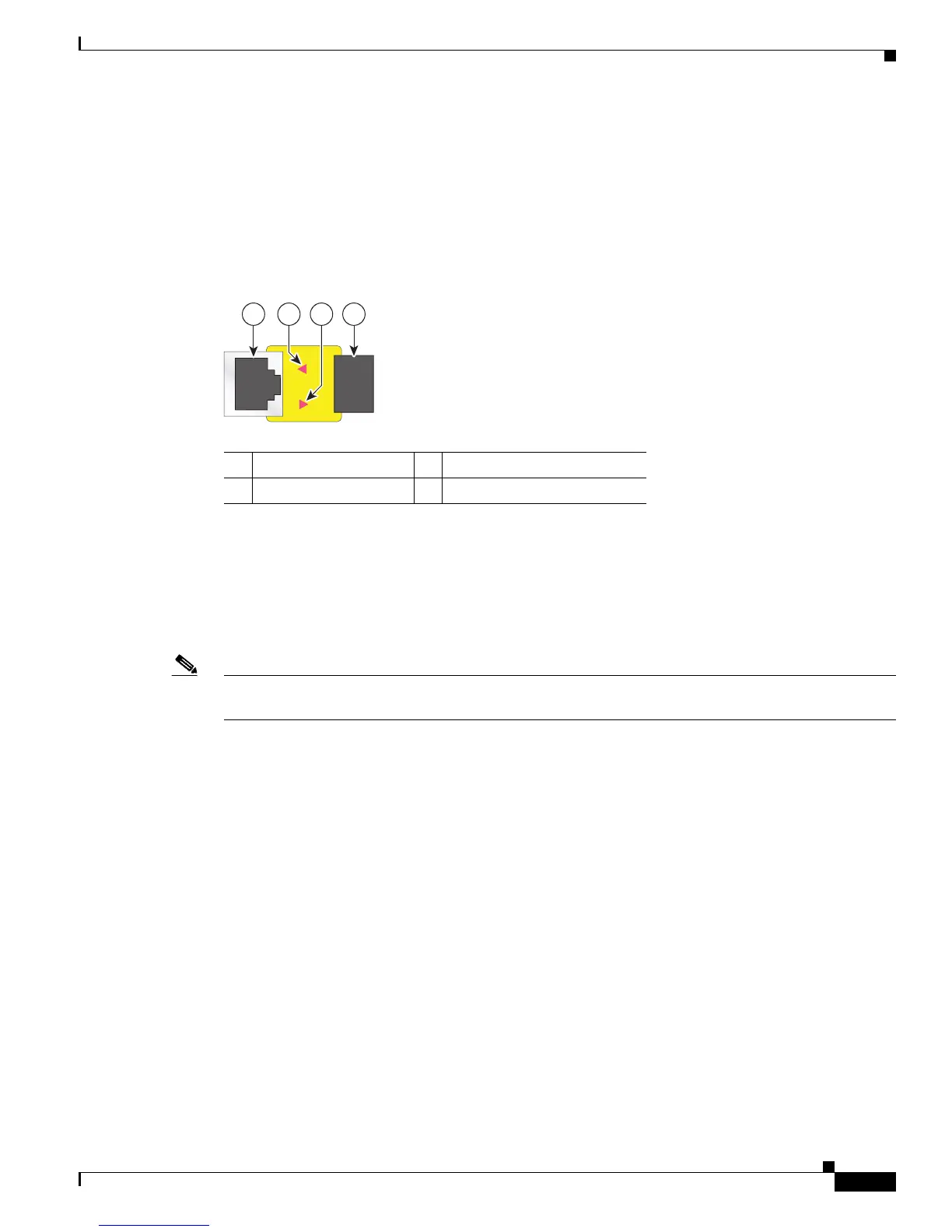

Figure 1-9 shows the LEDs on a dual-purpose port. You can configure each port as either a 10/100/1000
port through the RJ-45 connector or as an SFP module, but not both at the same time. The LEDs show
how the port is being used (Ethernet or SFP module).
The LED colors have the same meanings as described in Table 1-6.
Figure 1-9 Dual-Purpose Port LEDs
Compact Flash Memory Card
The switch supports a compact flash memory card that makes it possible to replace a failed switch
without reconfiguring the new switch. The slot for the compact flash memory card is on the bottom of
the switch. See
Figure 1-10.
Note For more information on inserting and removing the compact flash memory card, see the “Installing or
Removing the Compact Flash Memory Card” section on page 2-10.
1 RJ-45 connector 3 SFP module port in-use LED
2 RJ-45 port in-use LED 4 SFP module slot
1
41
2 3
203660

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
