Chapter 2 Switch Installation
Verifying Switch Operation

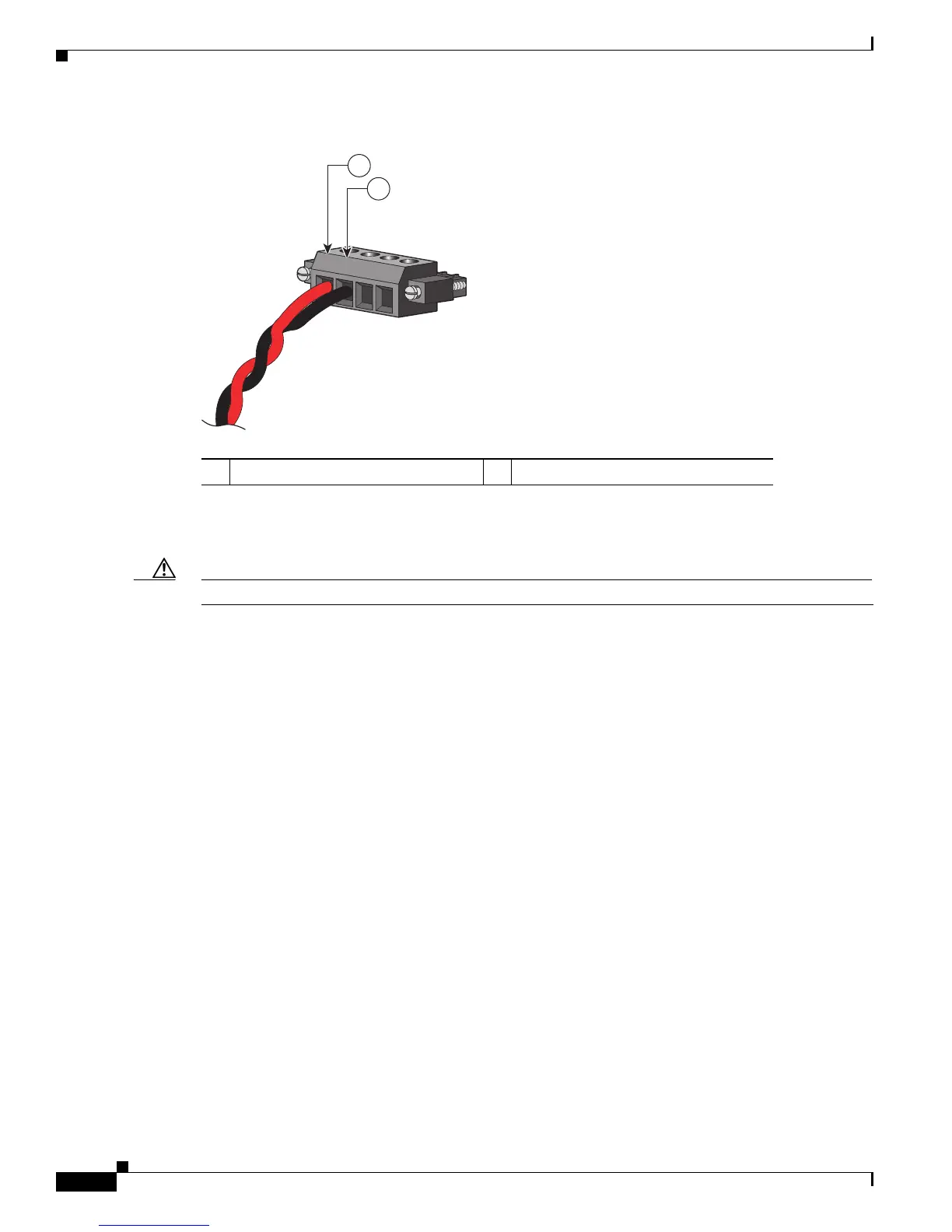

Figure 2-14 Inserting Wires in the Power and Relay Connector
Step 6 Use a ratcheting torque flathead screwdriver to torque the power and relay connector captive screws
(above the installed wire leads) to 2 in-lb. See
Figure 2-15.
Caution Do not over-torque the power and relay connector captive screws. The torque should not exceed 2 in-lb.
1 Power source positive connection 2 Power source return connection
202028
RT
A
V
A
1
2

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
