Cisco IE-3000-8TC Hardware Installation Guide

2-39
Cisco IE 3000 Switch Hardware Installation Guide
OL-13017-01
Chapter 2 Switch Installation
Connecting Destination Ports

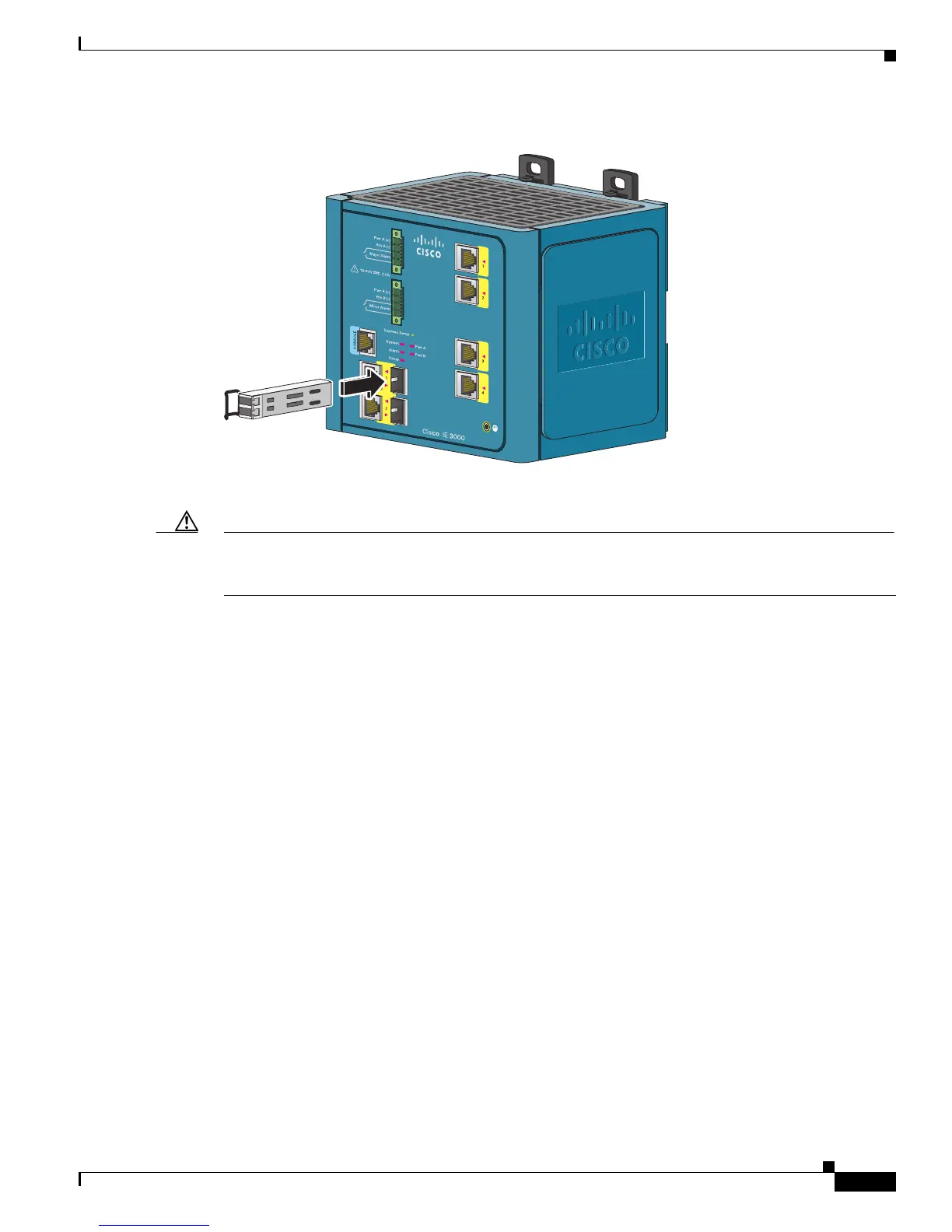

Figure 2-33 Installing an SFP Module into an SFP Module Slot
Step 5 Remove the dust plugs from the SFP module optical ports, store them for later use.
Caution Do not remove the dust plugs from the SFP module port or the rubber caps from the fiber-optic cable
until you are ready to connect the cable. The plugs and caps protect the SFP module ports and cables
from contamination and ambient light.
201866

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
