Chapter 2 Switch Installation
Connecting the Switch to the Power Converter
Caution Do not insert the cord into the AC outlet until you have completed wiring the line, neutral, and ground
connections.
Step 1 Remove the plastic cover from the input power terminals and set it aside. See Figure 2-43.

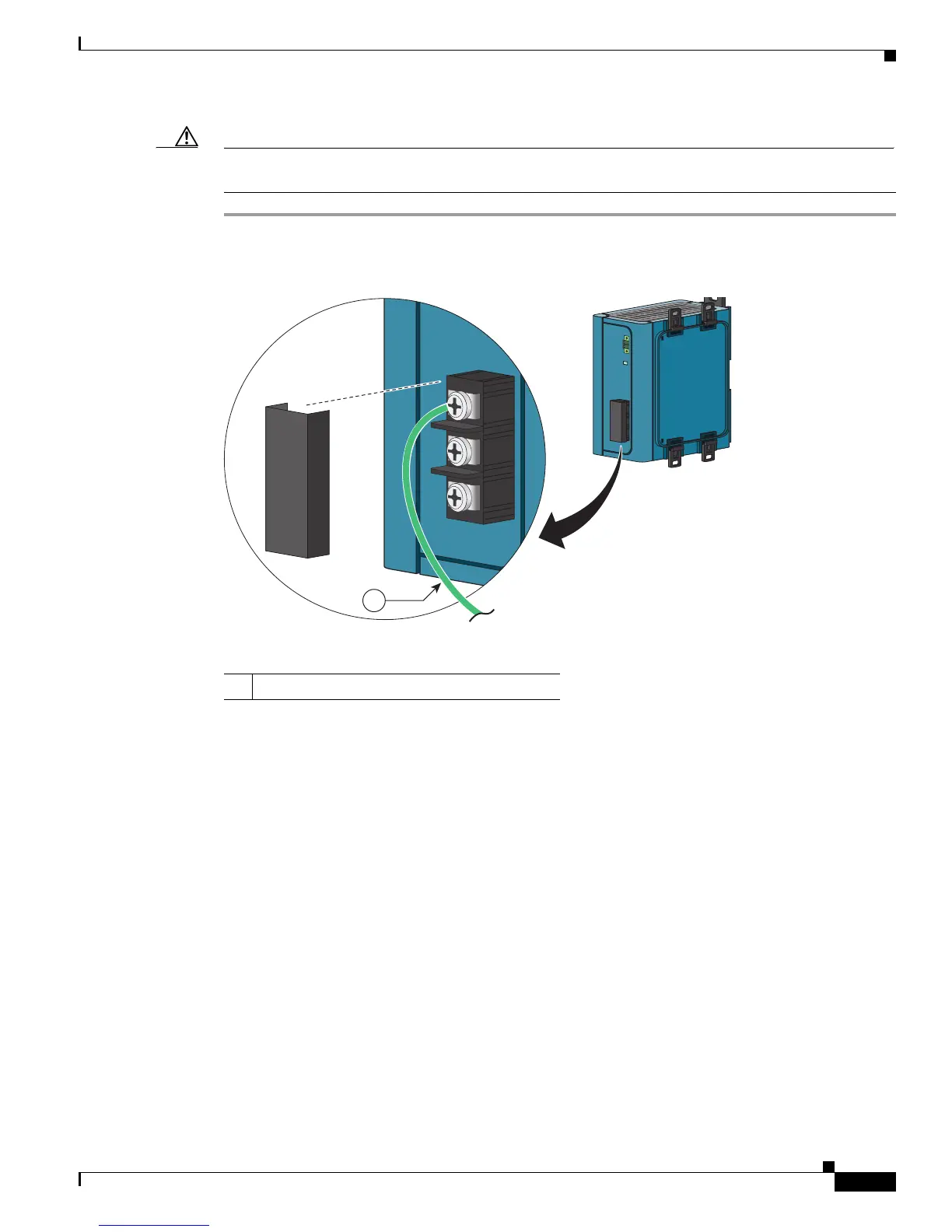

Figure 2-43 AC/DC Power Input Terminal Block
Step 2 Insert the exposed ground wire lead into the power converter ground wire connection. Ensure that only
wire with insulation extends from the connector. See
Figure 2-44.
1 Ground wire
202299
1

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
