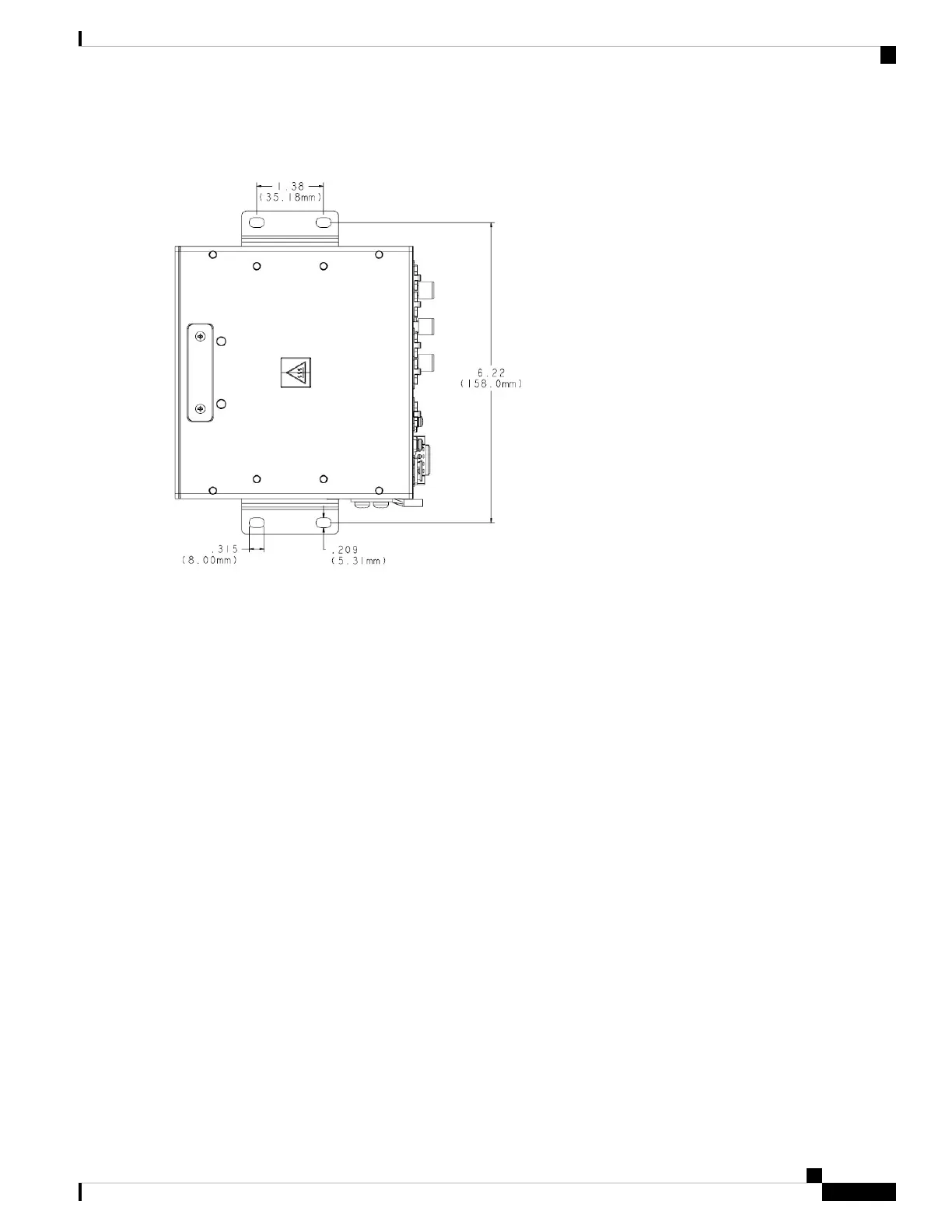

Figure 32: Wall/Floor mounting hole dimensions with mounting brackets attached
Note: Four #10-32 screws are recommended when mounting the Device with these brackets attached to the neighboring
surface.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
57
Installing the IRM-1100 Expansion Module
Mounting the Device Using Mounting Brackets
