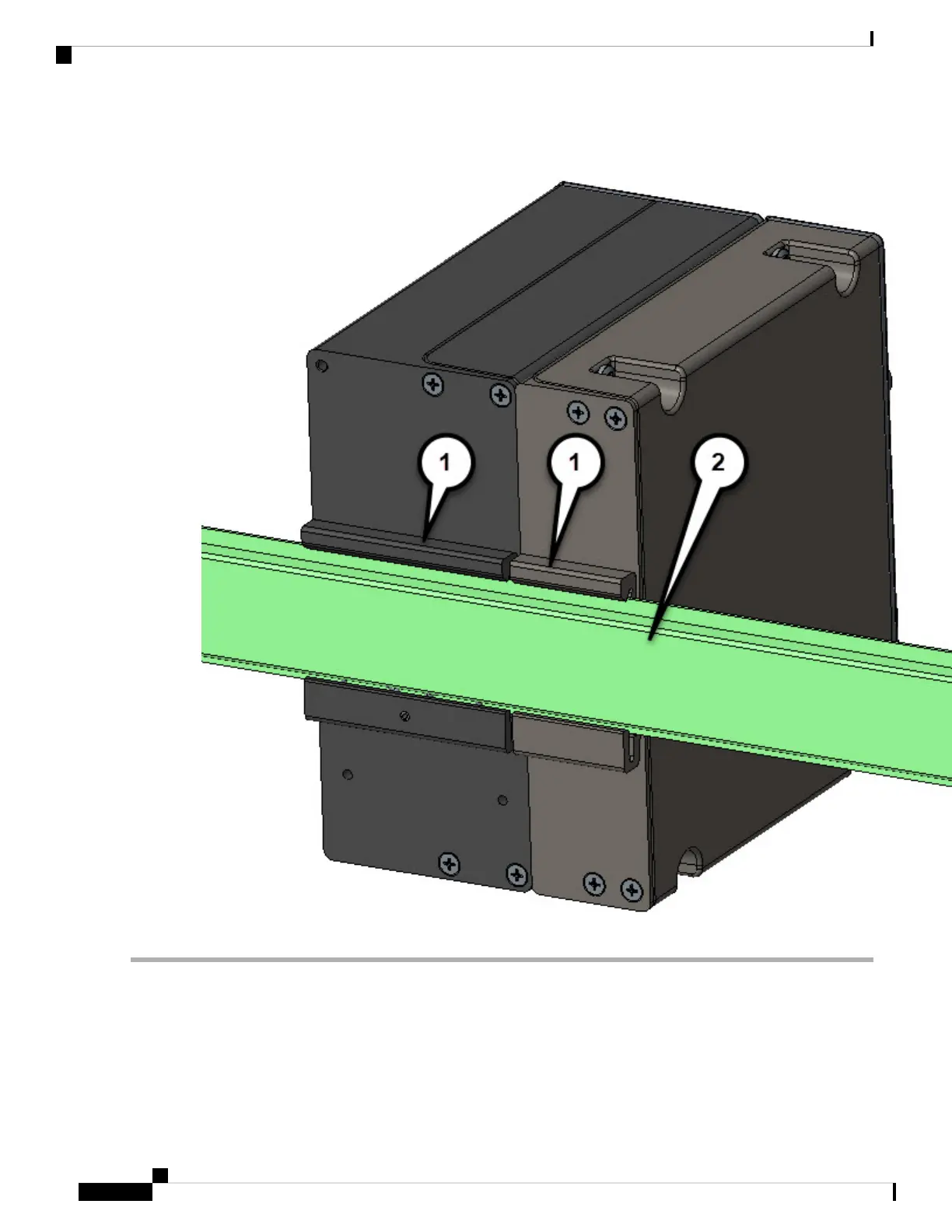

Figure 36: Attaching the Brackets to the DIN Rail
Step 1 Position the Device so that the lower edge and spring of the Din clips (1) engages with the bottom section of the Din rail
(2).
Step 2 Push up on the Device so that the spring of DIN clips (1) compresses against the lower section of DIN rail (2) and then
rotate the Device so that the top hook of the DIN clips (1) clamps to the top section of DIN rail (2).
Step 3 To remove the Device from the DIN Rail, simply reverse the procedure.
IR1101 Industrial Integrated Services Router Hardware Installation Guide
60
Installing the IRM-1100 Expansion Module
Attaching the Bracket Onto the DIN Rail
