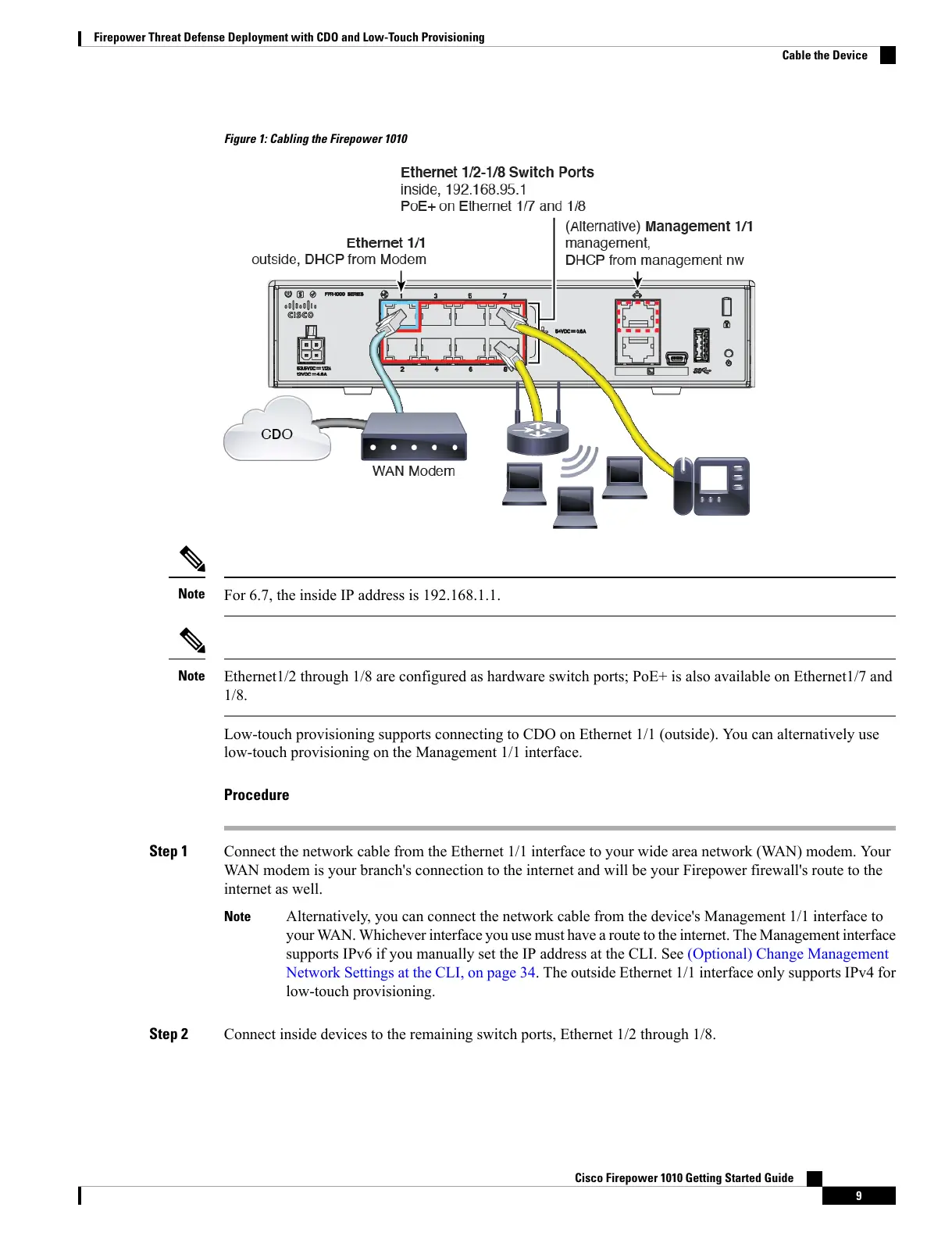

Figure 1: Cabling the Firepower 1010
For 6.7, the inside IP address is 192.168.1.1.
Note
Ethernet1/2 through 1/8 are configured as hardware switch ports; PoE+ is also available on Ethernet1/7 and
1/8.
Note
Low-touch provisioning supports connecting to CDO on Ethernet 1/1 (outside). You can alternatively use
low-touch provisioning on the Management 1/1 interface.
Procedure
Step 1 Connect the network cable from the Ethernet 1/1 interface to your wide area network (WAN) modem. Your
WAN modem is your branch's connection to the internet and will be your Firepower firewall's route to the
internet as well.
Alternatively, you can connect the network cable from the device's Management 1/1 interface to
your WAN. Whichever interface you use must have a route to the internet. The Management interface
supports IPv6 if you manually set the IP address at the CLI. See (Optional) Change Management
Network Settings at the CLI, on page 34. The outside Ethernet 1/1 interface only supports IPv4 for
low-touch provisioning.
Note
Step 2 Connect inside devices to the remaining switch ports, Ethernet 1/2 through 1/8.
Cisco Firepower 1010 Getting Started Guide
9
Firepower Threat Defense Deployment with CDO and Low-Touch Provisioning
Cable the Device
