Step 22 Place the chassis packing cushion on top of the bagged chassis as shown in View A in Figure E-3.

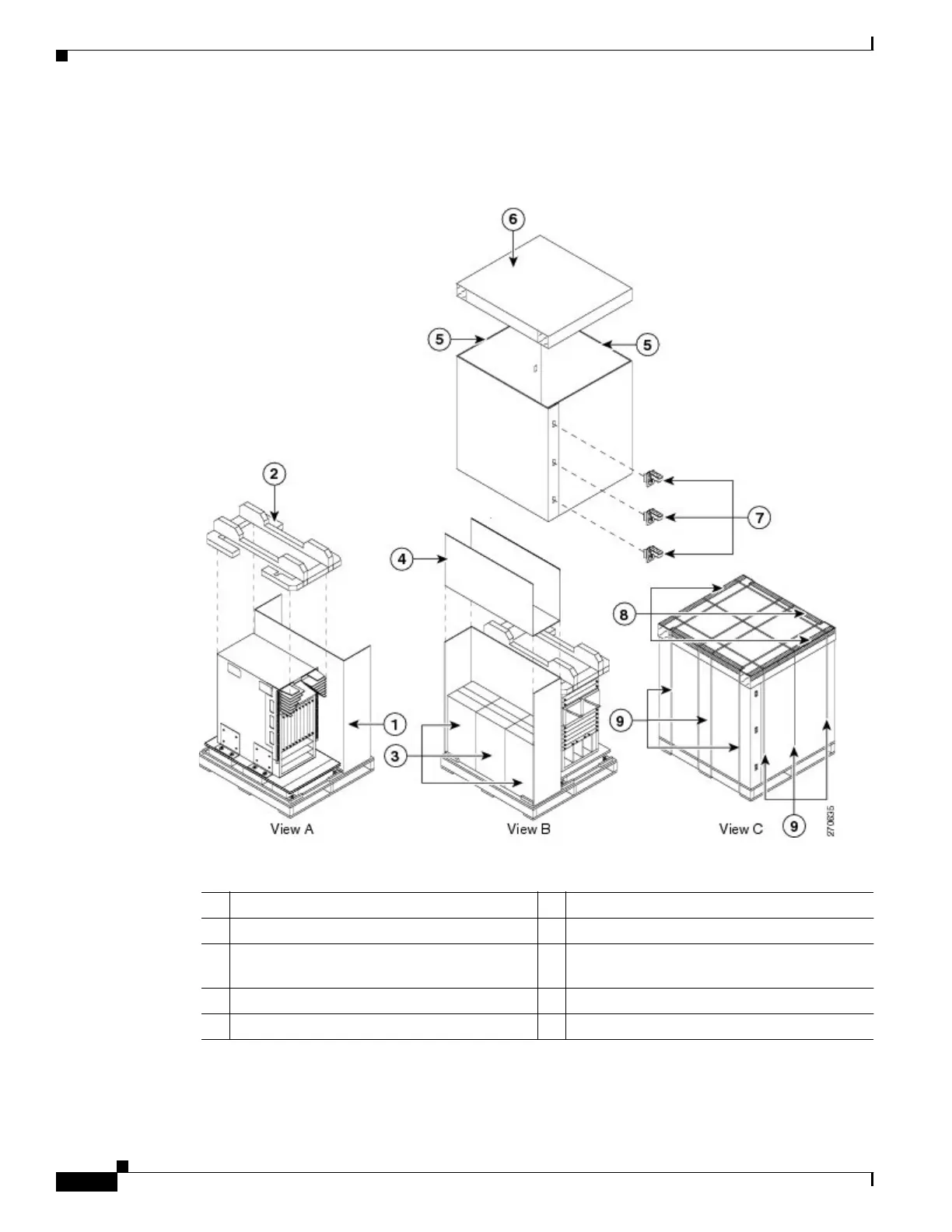

Figure E-3 Packing the System Components
Step 23
Place the larger of the two three-segment dividers beside the chassis (see Callout 1 in Figure E-3).
1 Three-segment divider 6 Corrugated cardboard lid
2 Polyethylene cushion 7 Corro clips
3 Power supply box (one box for three power
supply units or three boxes for three units)
8 Edge protectors
4 Three-segment divider 9 Packing straps
5 Two J-box halves
