Chapter 5 Installing a Cisco Nexus 7018 Chassis
Installing the Front Door and Air Intake Frame

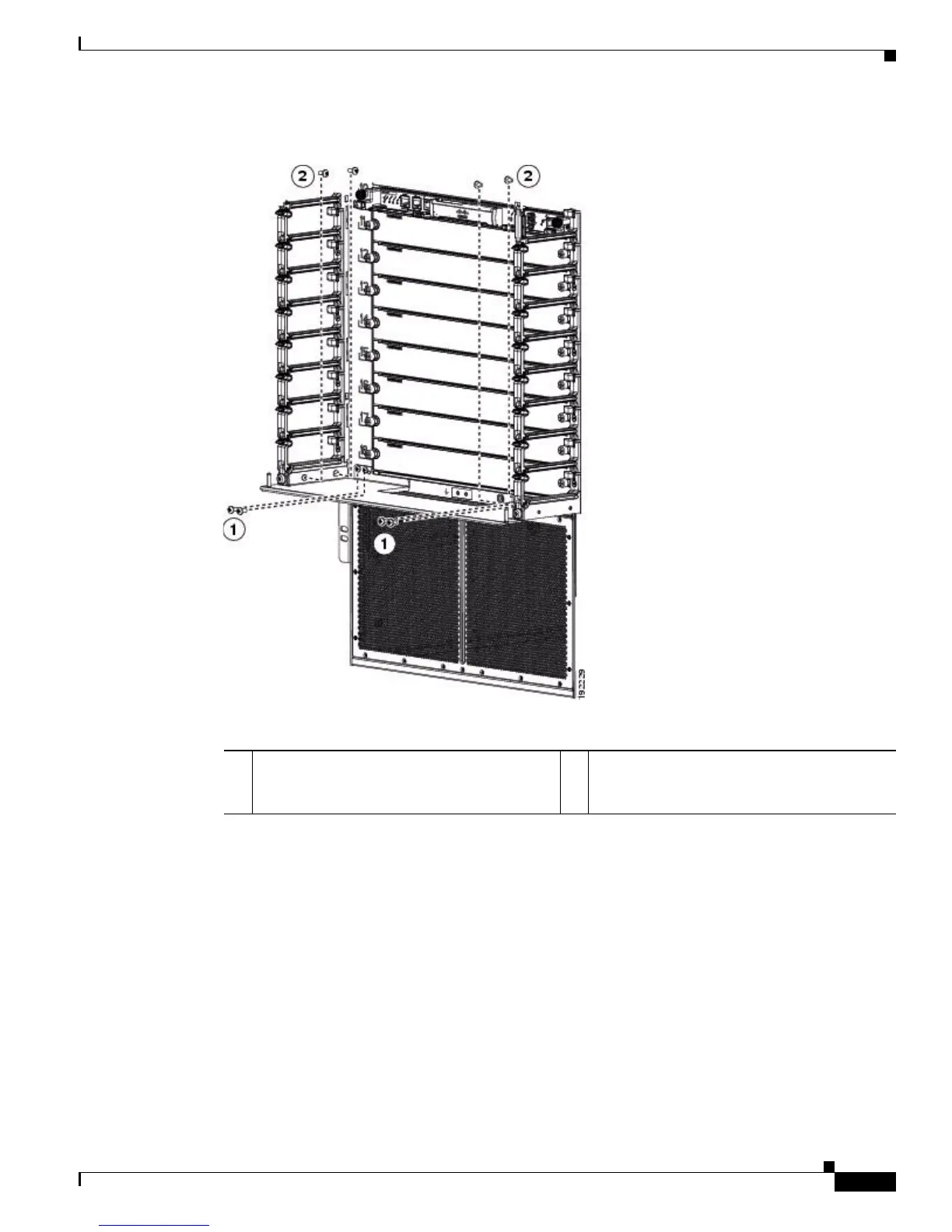

Figure 5-16 Attaching the Hinge Bracket to the Cable Management Frame and Chassis
Step 5
Tighten the four M4x8 screws that fasten the hinge bracket to the chassis to 11 to 15 in-lb (1.2 to
1.7 N·m).
Step 6 Tighten the four M4x8 screws that fasten the hinge bracket to the cable management frame to 11 to
15 in-lb (1.2 to 1.7 N·m).
Step 7 Fasten the four ball-point studs (51-5008-01), each one with a washer (49-0430-01), to the bottom
portion of the chassis, one stud by each corner of the air intake area as shown in Figure 5-17.
1 Four M4x8 pan-head screws that fasten the
hood to the chassis.
2 Four M4x8 pan-head screws that fasten the
hood to the left and right cable management
assemblies.
