Cisco RV180 Administrator's Manual

Introduction
Mounting the Cisco RV180/RV180W
Cisco RV180/RV180W Administration Guide 10
1

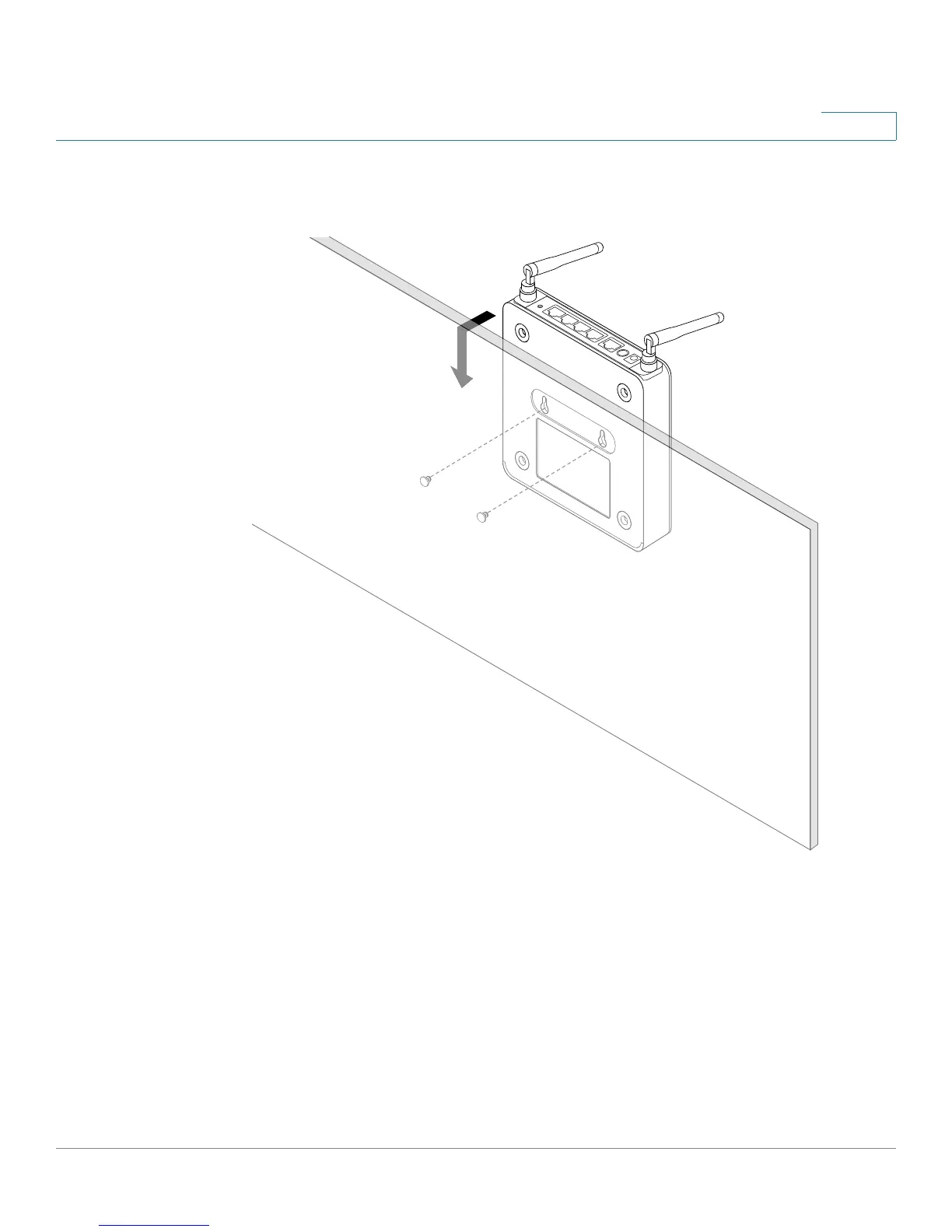

STEP 4 Place the firewall wall-mount slots over the screws and slide the firewall down until
the screws fit snugly into the wall-mount slots.
284158

Cisco RV180 Specifications

General

WAN Ports	1
LAN Ports	4
VPN Support	Yes
Wireless Support	No
Firewall	Yes
Device Type	VPN Router
VPN Tunnels	10
Authentication	MD5, SHA1
Power Supply	12V DC, 1A
Encryption	3DES, AES
VPN Protocols	IPSec
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 70 °C
Humidity	10% to 85% non-condensing
Dimensions	130 x 130 x 35 mm
Weight	0.28 kg
