4-28

Cisco Wireless LAN Controller Configuration Guide

OL-9141-03

Chapter 4 Configuring Controller SettingsWireless Device Access

Configuring Voice and Video Parameters

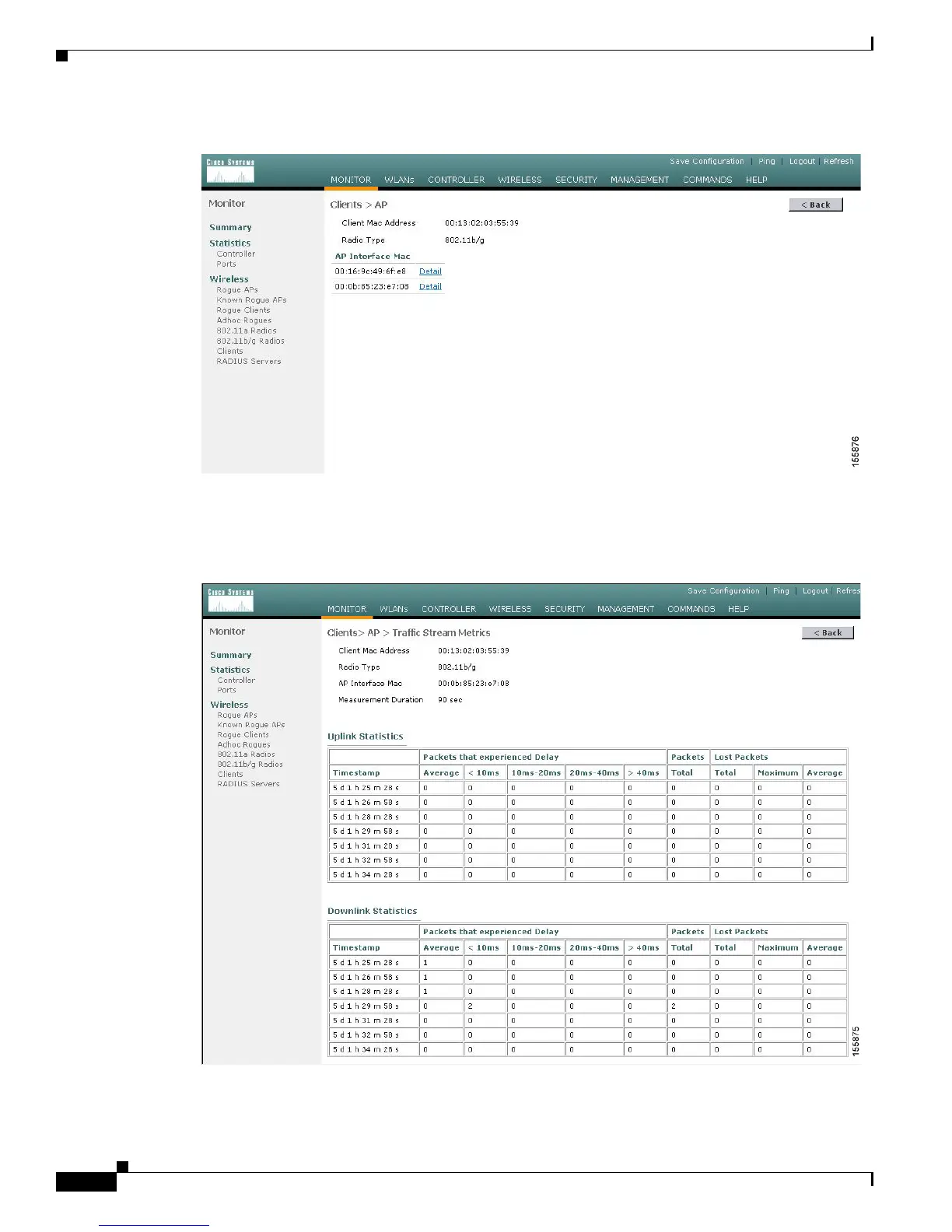

Figure 4-12 Clients > AP Page

Click the Detail link for the desired access point to access the Clients > AP > Traffic Stream Metrics

page (see Figure 4-13).

Figure 4-13 Clients > AP > Traffic Stream Metrics Page
