Cisco UCS B200 M5 User Manual

Procedure
Step 1
Grasp the front of the blade server and place your other hand under the blade to support it.

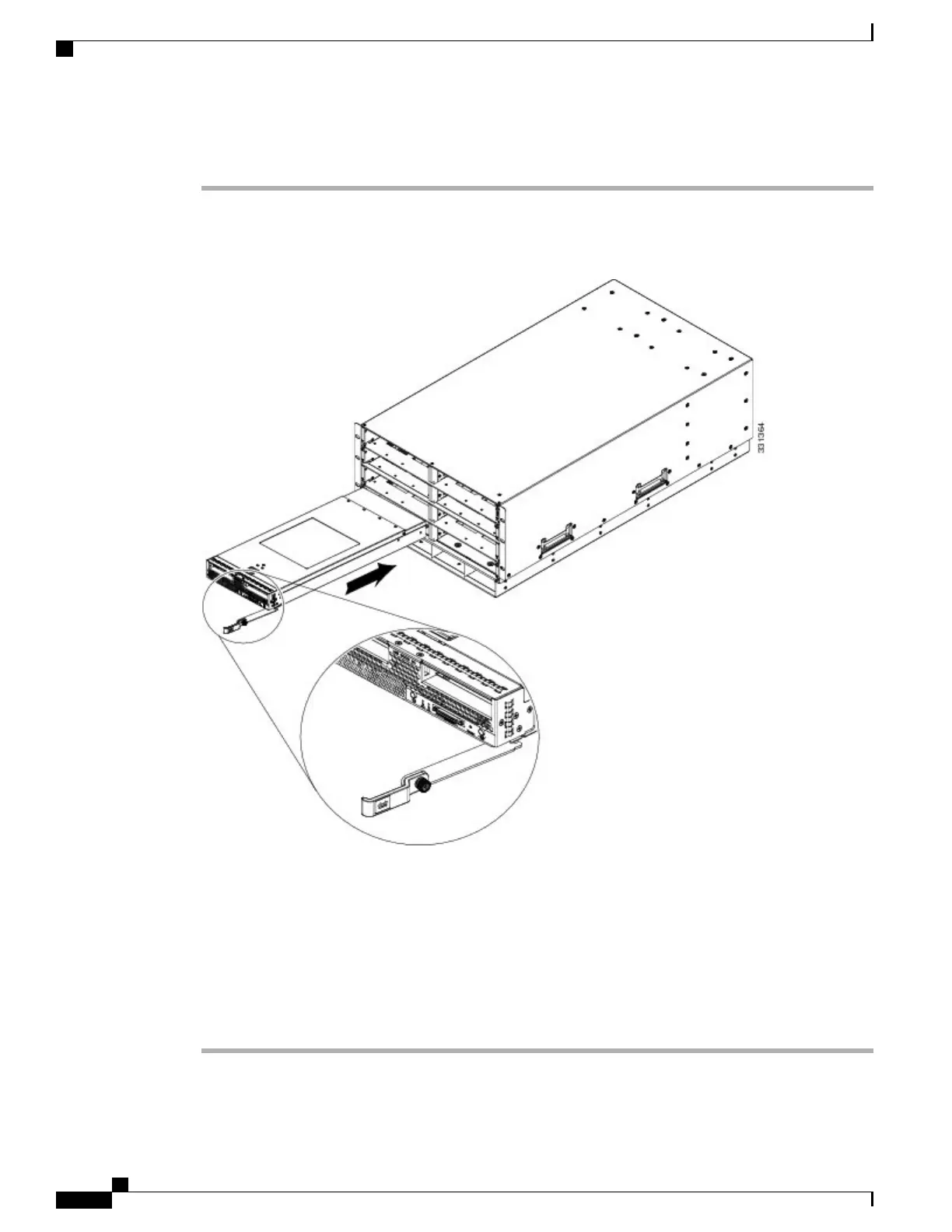

Figure 3: Positioning a Blade Server in the Chassis
Step 2
Open the ejector levers in the front of the blade server.
Step 3
Gently slide the blade into the opening until you cannot push it any farther.
Step 4
Press the ejector so that it catches the edge of the chassis and presses the blade server all the way in.
Step 5
Tighten the captive screw on the front of the blade to no more than 3 in-lbs. Tightening only with bare fingers
is unlikely to lead to stripped or damaged captive screws.
Step 6
Cisco UCS Manager automatically reacknowledges, reassociates, and recommissions the server, provided
any hardware changes are allowed by the service profile. Upon completion of discovery, power on the server
using Cisco UCS Manager.
Cisco UCS B200 M5 Blade Server Installation and Service Note
8
Installing a Blade Server
Installing a Half-width Blade Server

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
