Cisco UCS B200 M5 User Manual

NVIDIA P6 Graphics Processing Unit
The NVIDIA P6 graphics processing unit (GPU) card provides graphics and computing capabilities to the
server. There are two supported versions of the NVIDIA P6 GPU card:
•
UCSB-GPU-P6-F can be installed only in the front mezzanine slot of the server. For installation
instructions, see Installing an NVIDIA GPU Card in the Front of the Server, on page 43.
•
UCSB-GPU-P6-R can be installed only in the rear mezzanine slot (slot 2) of the server. For installation
instructions, see Installing an NVIDIA GPU Card in the Rear of the Server, on page 46.
The following figure shows the installed NVIDIA P6 GPU in the front and rear mezzanine slots.

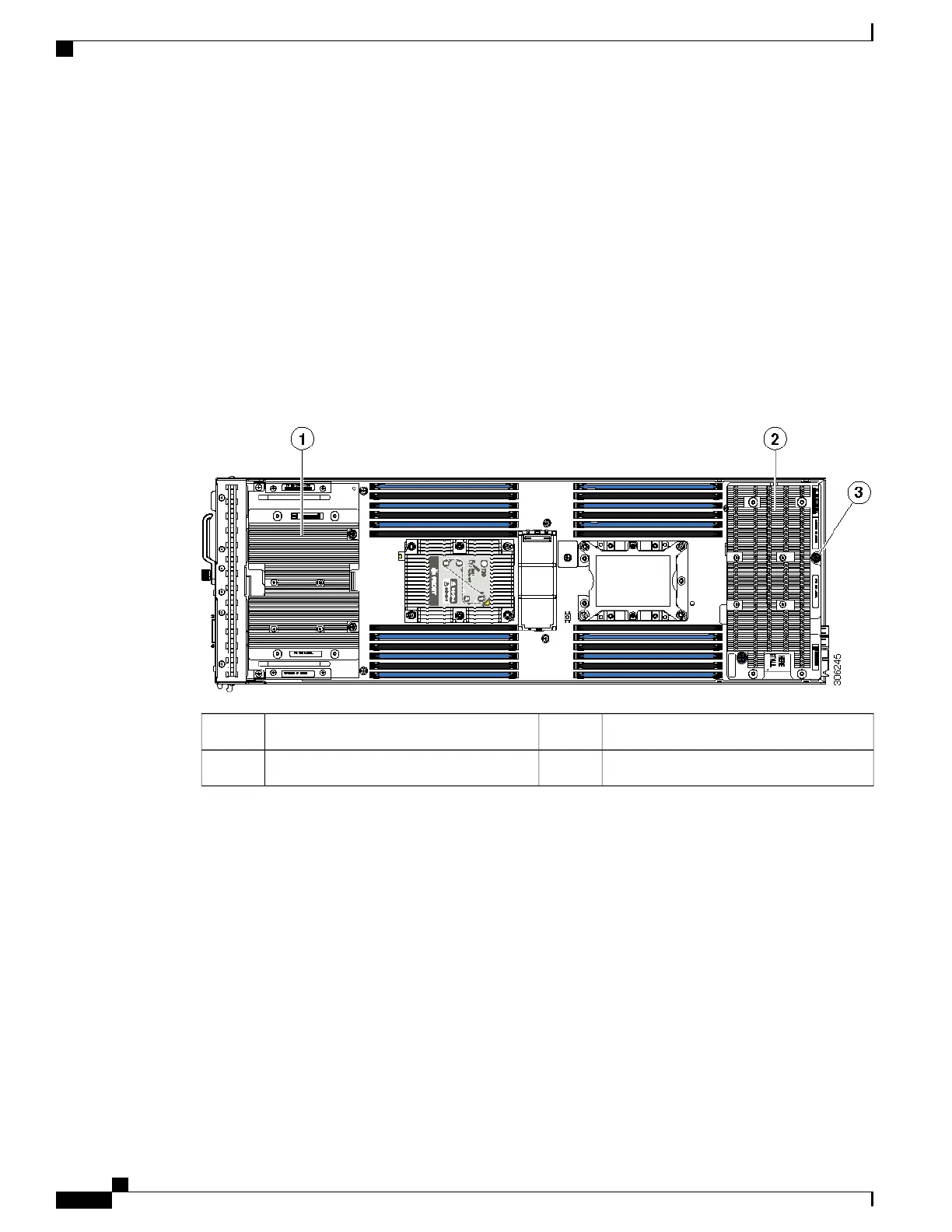

Figure 19: NVIDIA GPU Installed in the Front and Rear Mezzanine Slots
Rear GPU2Front GPU1
-Custom standoff screw3
Cisco UCS B200 M5 Blade Server Installation and Service Note
42
Servicing a Blade Server
NVIDIA P6 Graphics Processing Unit

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
