Cisco UCS B200 M5 User Manual

Removing the Mini-Storage Module
This task describes how to remove the mini-storage module.
Procedure
Step 1
Pull out on the holder clips to disengage the module.
Step 2
Pull up on the storage module to remove it.

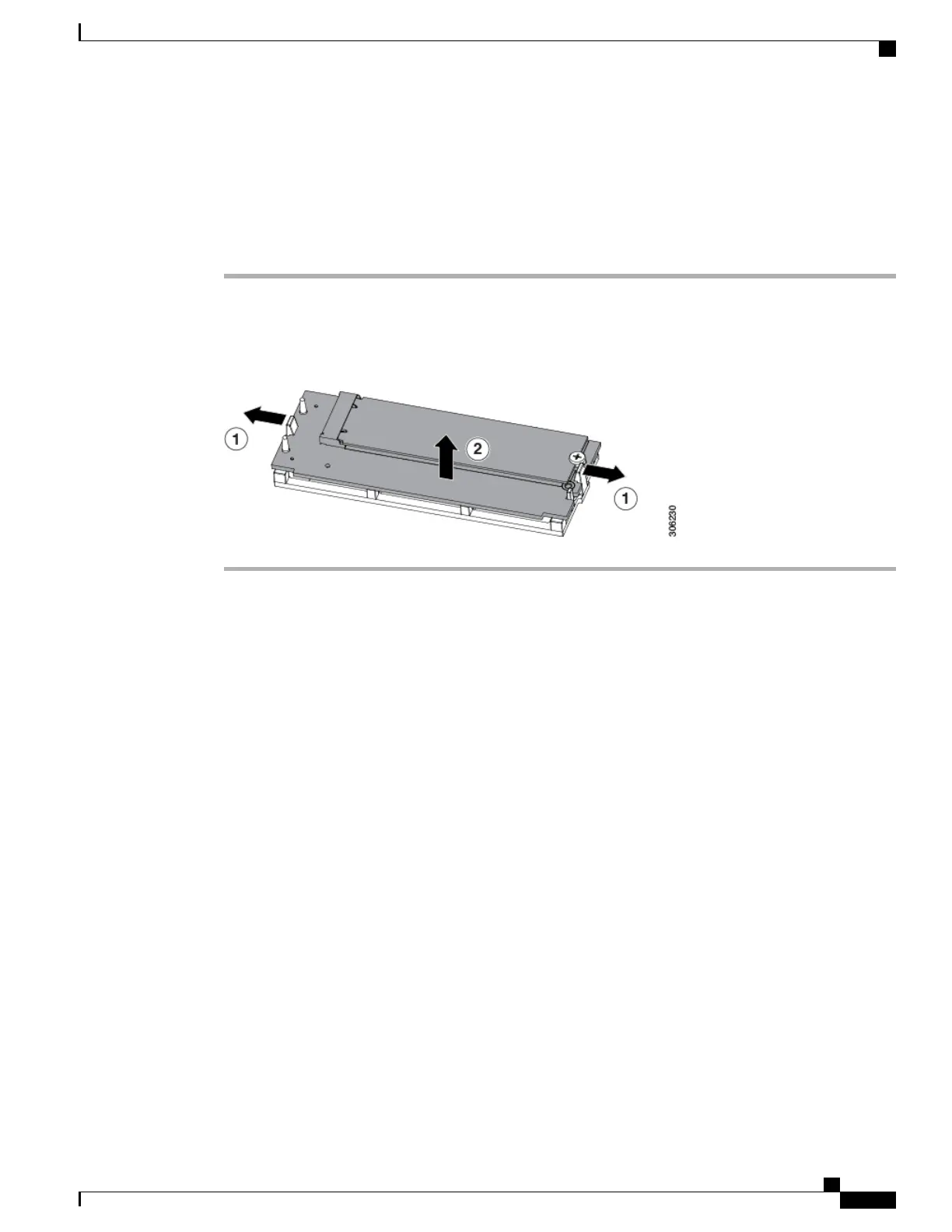

Figure 7: Removing the Mini-Storage Module
Installing the Mini-Storage Module
This task describes how to install the mini-storage module.
Cisco UCS B200 M5 Blade Server Installation and Service Note
25
Servicing a Blade Server
Removing the Mini-Storage Module

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
