Installing a DIMM or DIMM Blank
To install a DIMM or a DIMM blank (UCS-DIMM-BLK=) into a slot on the blade server, follow these steps.
Procedure
Step 1
Open both DIMM connector latches.
Step 2
Press evenly on both ends of the DIMM until it clicks into place in its slot.
Ensure that the notch in the DIMM aligns with the slot. If the notch is misaligned, it is possible to
damage the DIMM, the slot, or both.
Note
Step 3
Press the DIMM connector latches inward slightly to seat them fully.
Step 4
Populate all slots with a DIMM or DIMM blank. A slot cannot be empty.

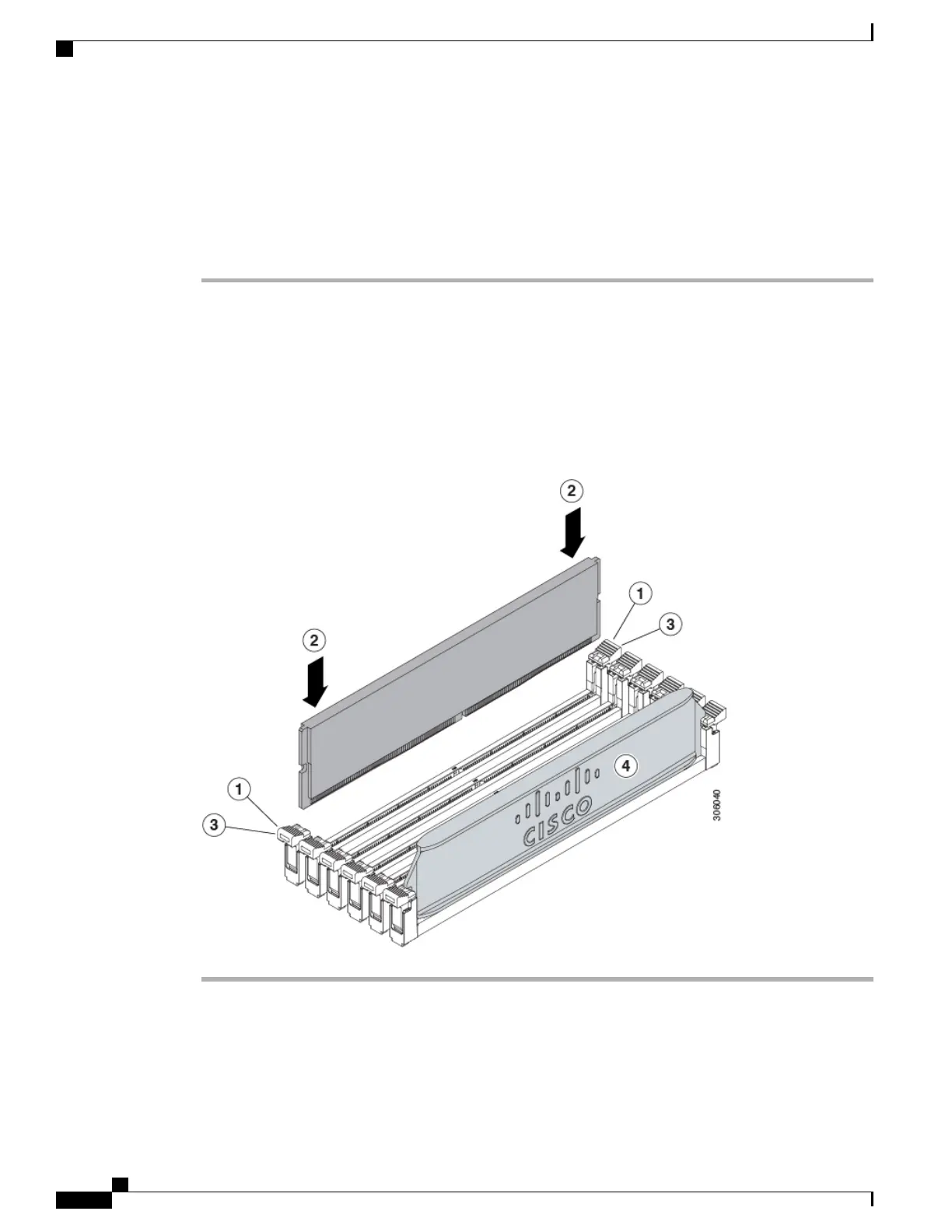

Figure 15: Installing Memory
Cisco UCS B200 M5 Blade Server Installation and Service Note
36
Servicing a Blade Server
Installing a DIMM or DIMM Blank

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
