Cisco UCS B200 M5 User Manual

Installing an NVIDIA GPU Card in the Rear of the Server
If you are installing the UCSB-GPU-P6-R to a server in the field, the option kit comes with the GPU itself
(CPU and heatsink), a T-shaped installation wrench, and a custom standoff to support and attach the GPU to
the motherboard. The following figure shows the three components of the option kit.

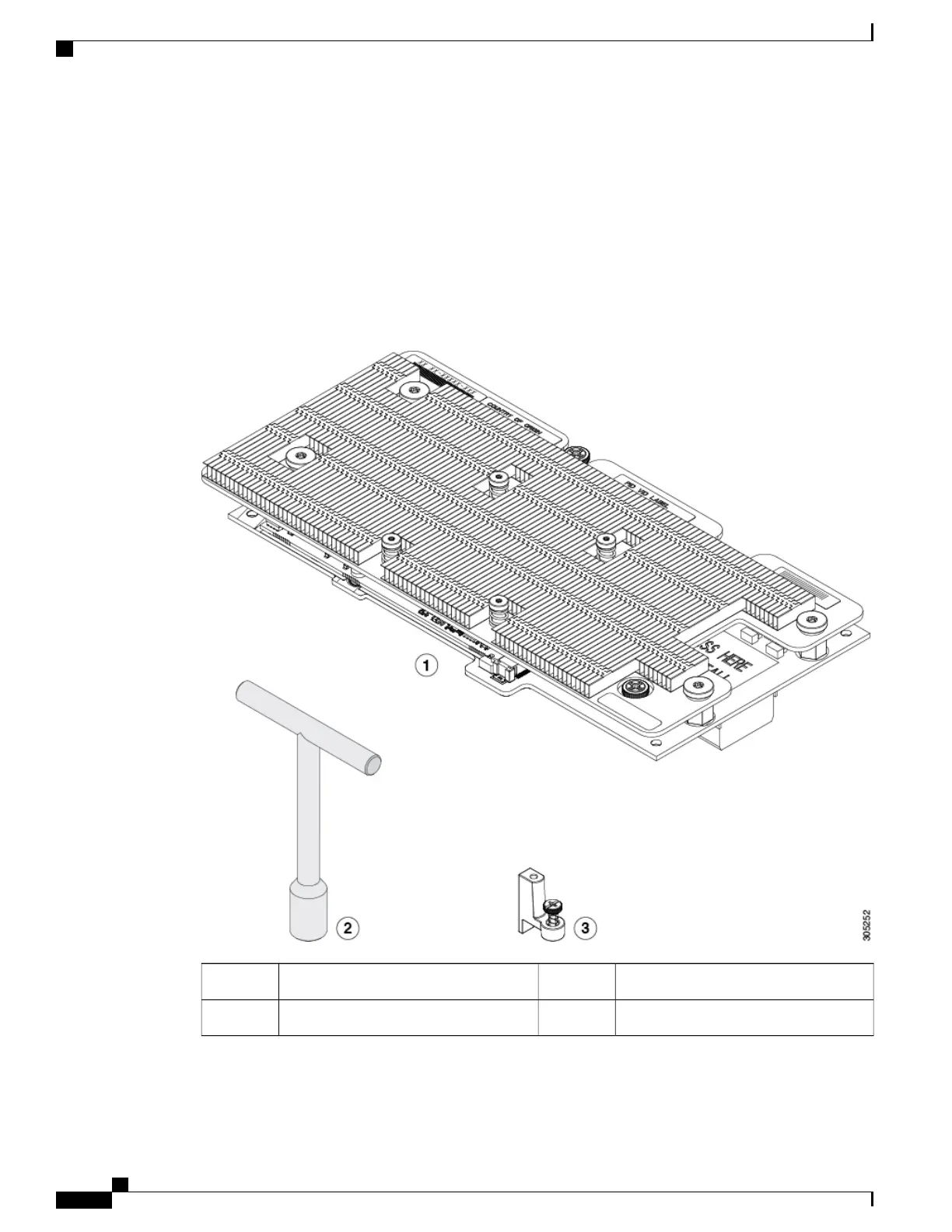

Figure 23: NVIDIA P6 GPU (UCSB-GPU-P6-R) Option Kit
T-shaped wrench2NVIDIA P6 GPU (CPU and heatsink)1
-Custom standoff3
Cisco UCS B200 M5 Blade Server Installation and Service Note
46
Servicing a Blade Server
Installing an NVIDIA GPU Card in the Rear of the Server

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
