Cisco UCS B200 M5 User Manual

Procedure
Step 1
Position the GPU in the correct orientation to the front of the server (callout 1) as shown in the following
figure.
Step 2
Install the GPU into the server. Press down on the handles (callout 5) to firmly secure the GPU.
Step 3
Tighten the thumb screws (callout 3) at the back of the GPU with the standoffs (callout 4) on the motherboard.
Step 4
Tighten the thumb screws on the legs (callout 2) to the motherboard.
Step 5
Install the drive blanking panels.

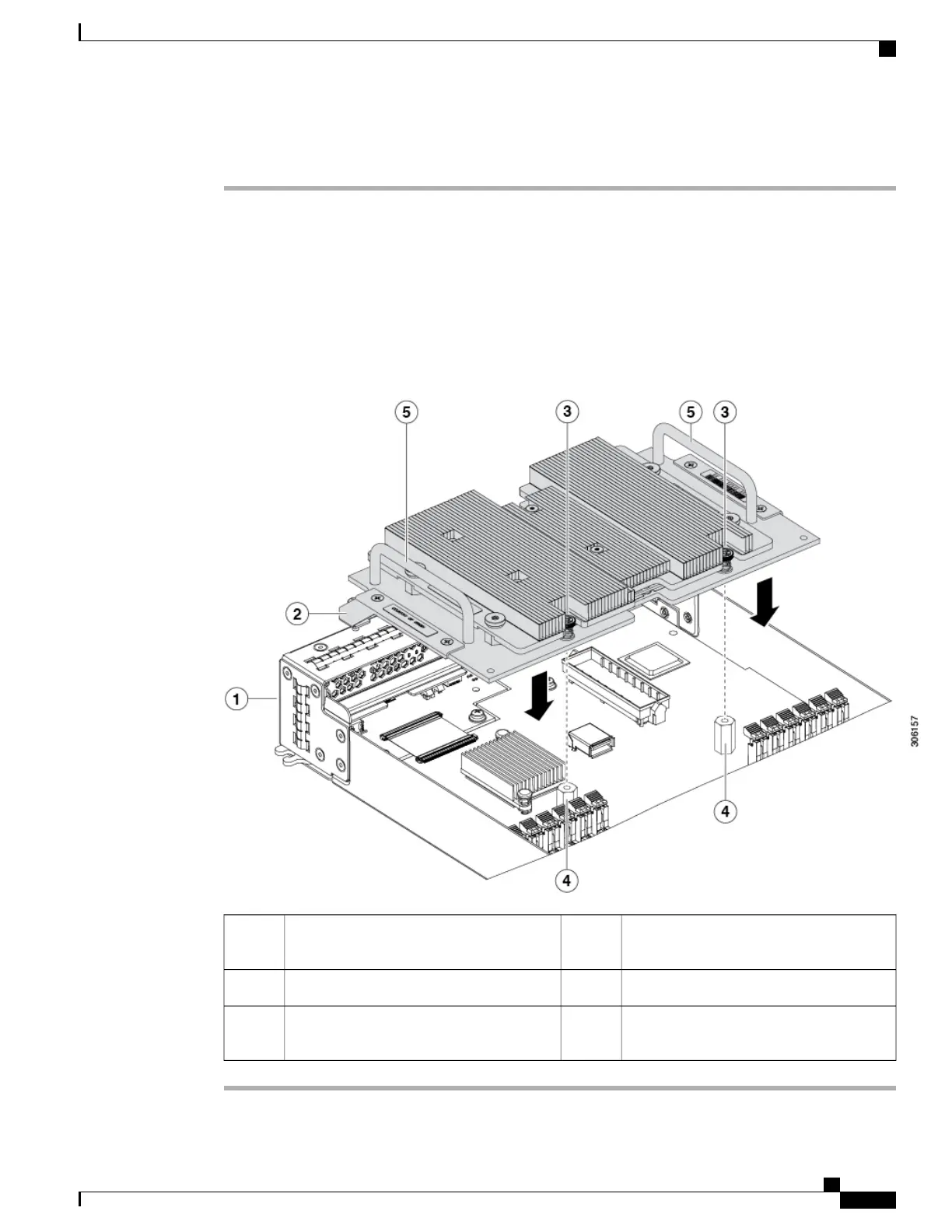

Figure 22: Installing the NVIDIA GPU in the Front of the Server
Leg with thumb screw that attaches to the
motherboard
2Front of the server1
Standoff on the motherboard4Thumbscrew to attach to standoff below3
–
Handle to press down on to firmly install
the GPU
5
Cisco UCS B200 M5 Blade Server Installation and Service Note
45
Servicing a Blade Server
Installing an NVIDIA GPU Card in the Front of the Server

Cisco UCS B200 M5 Specifications

General

Form Factor	Blade
Processor	Intel Xeon Scalable Processors
Management	Cisco UCS Manager
Processor Sockets	2
Product Type	Blade Server
Memory	Up to 3 TB DDR4
Memory Slots	24 DIMM slots
Storage	Up to 2 x SAS/SATA drives
Expansion Slots	Mezzanine card
RAID Support	RAID 0, 1
Network	10 Gigabit Ethernet, 25 Gigabit Ethernet
Power Supply	Part of UCS Blade Server Chassis
