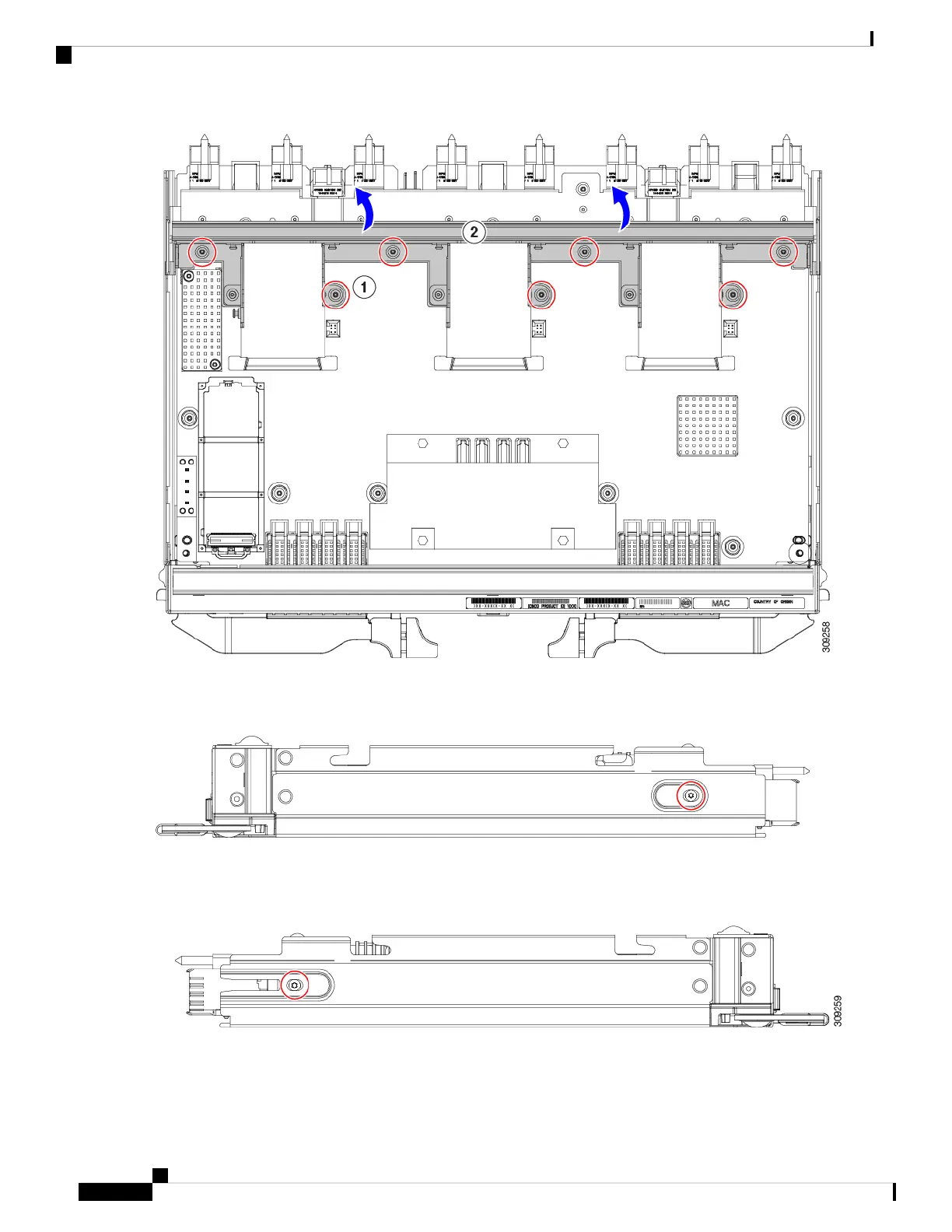

Step 3 Remove the horizontal rear bracket.
a) Using a T8 screwdriver, remove the M3 screws on the exterior of the IFM.
b) Using a T10 screwdriver, remove the M3 screws on the interior of the IFM.
c) Grasp the bracket and remove it.
Cisco UCS X9508 Server Chassis Installation Guide
96
Installing and Removing Components
Recycling the UCS 9108 25G IFM PCBs
