Setting Up and Configuring the WRVS4400N Wireless-N Router

Configuring the L2 Switch Settings

Cisco WRVS4400N Wireless-N Gigabit Security Router with VPN Administration Guide 147

• Administration State—Select one of the following options from the drop-

down menu:

- Auto—Controlled port state is set by the RADIUS mode.

- Force Authorized—Controlled port state is set to Force-Authorized

(forward traffic). All connections can be made. This is the default value.

- Force Unauthorized—Controlled port state is set to Force-

Unauthorized (discard traffic). All connections are blocked.

STEP 3 Click Save.

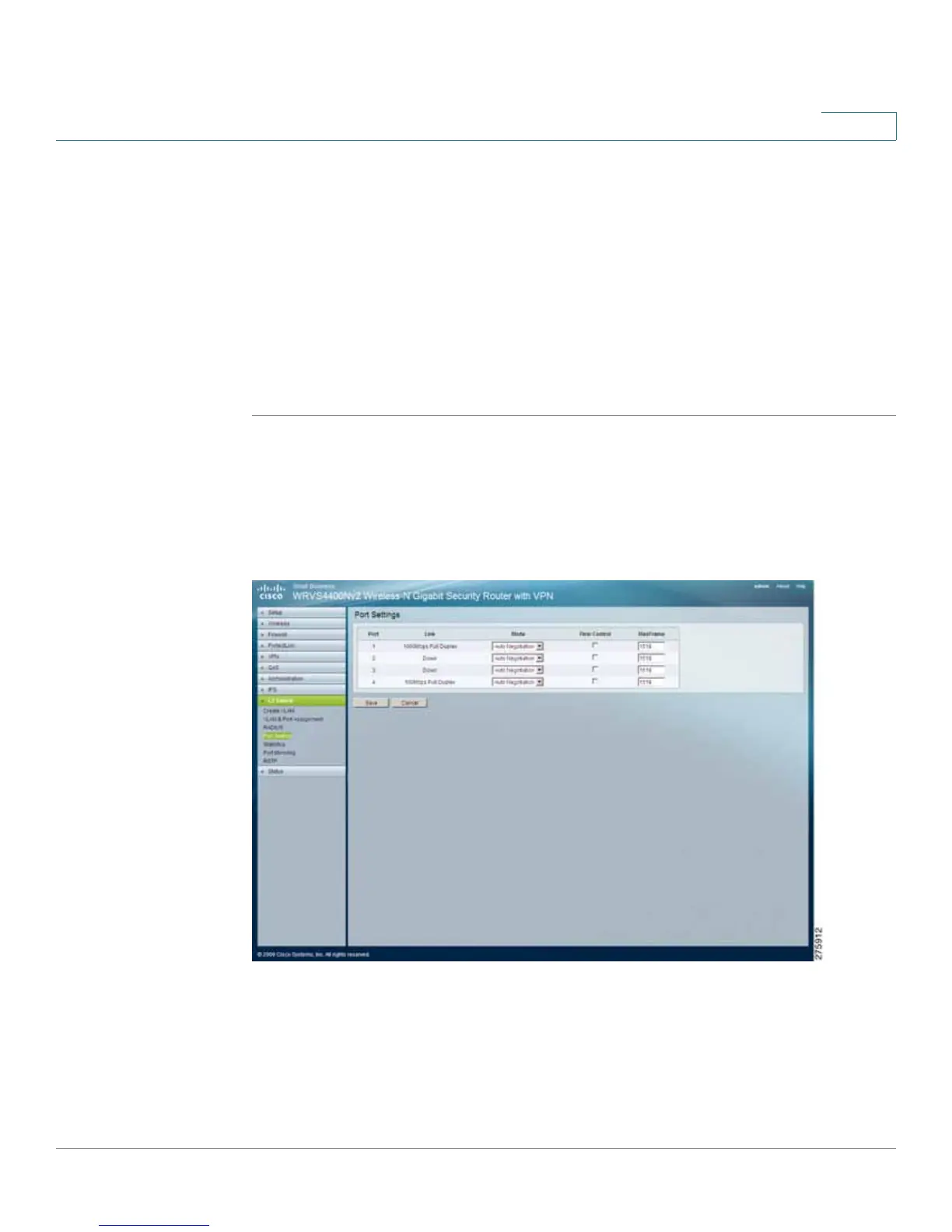

Configuring Port Settings

The L2 Switch > Port Settings window displays the settings for configuring the

LAN ports of the router.

Cisco WRVS4400N - Small Business Wireless-N Gigabit Security Router - Page 147
