CITO RSP System 2.0 - Design of the RSP System 2.0; RSP Base Plate; RSP Grid Sheet; RSP Protective Impression Cylinder Jacket

1 2 3
50
Operating Manual
Printstart
Printstart
Achtung Printstart! Attention Printstart!
Atención Printstart! Attenzione Printstart!
GO!
Hinterkante lösen und ausspannen!
Basisplatte zuerst hier an der
GO!
here on rear edge first!
Unfix and unclamp Base Plate
STOP
Base Plate on rear edge first!
Unfix and unclamp
RSP System 2.0
patented
STOP
Basisplatte zuerst an der
Hinterkante lösen und ausspannen!
1 2 3
ab
a
b
c
d
cc

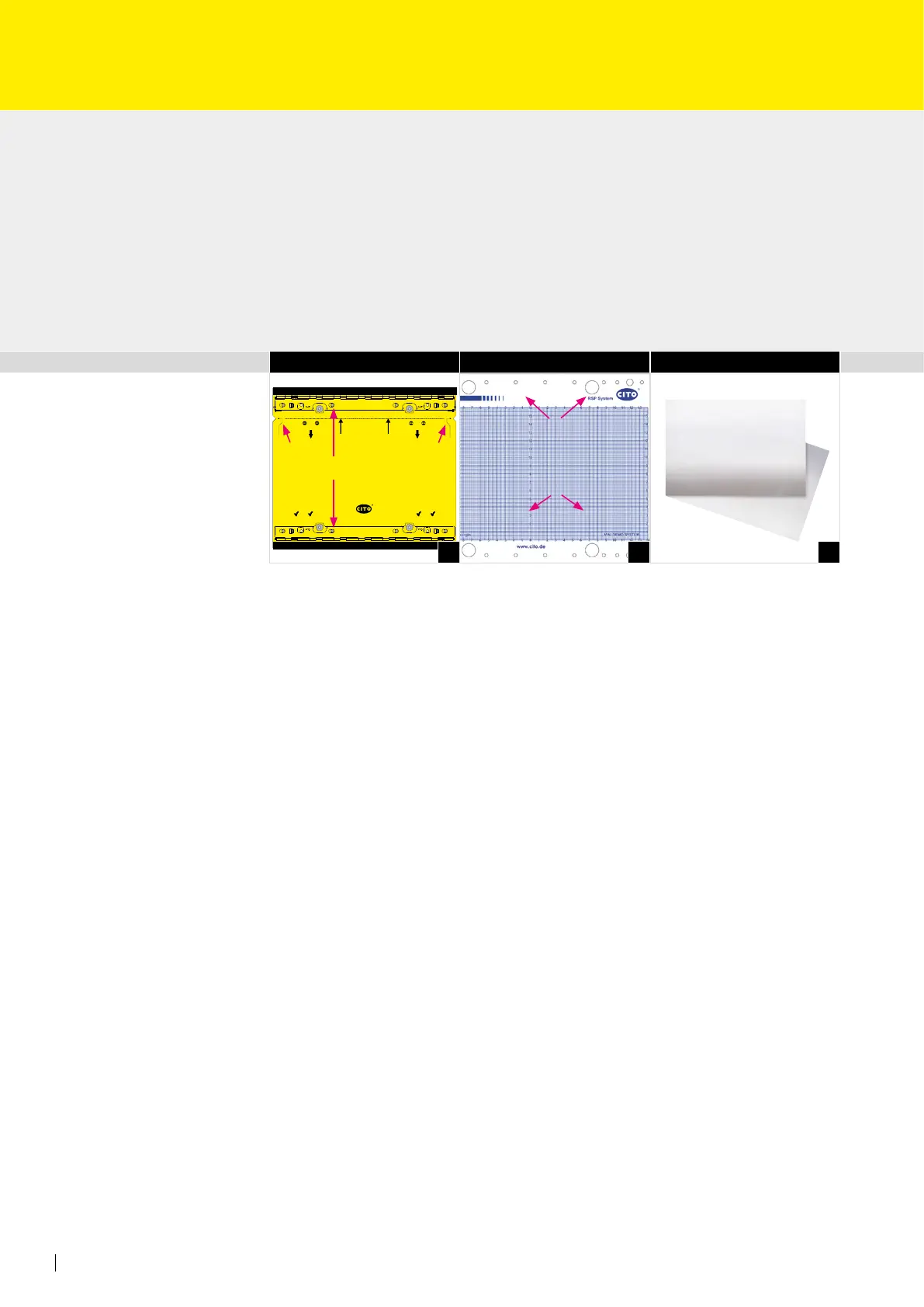

1. RSP base plate
a) Yellow special plastic plate
b) Locking hinges for hanging the RSP grid sheet or the RSP direct t exible die.
c) Marking for the positioning of the base plate at the print start line of the blanket cyl-
inder
2. RSP grid sheet
a) Dimensionally stable grid sheet
b) Cut-out for hanging the grid sheet onto the pins of the lower hinge section on the RSP
base plate.
c) Millimetre scale, circumferentially reduced in order to enable register-true mounting of
the RSP form outside the machine
d) Marking of gripper margin
3. RSP protective impression cylinder jacket, self-adhesive
Stainless steel sheet coated with a special adhesive tape for protection of the impression
cylinder for smooth and coarse impression surfaces (but not suitable for Perfect Jackets)
1. Design of the RSP System 2.0
