7. Determining the
cylinder packing thickness
Determining the cylinder packing thickness in connection with the
RSP System 2.0
Fundamental Rule: Do not mount the RSP System 2.0 above cylinder bearer level!

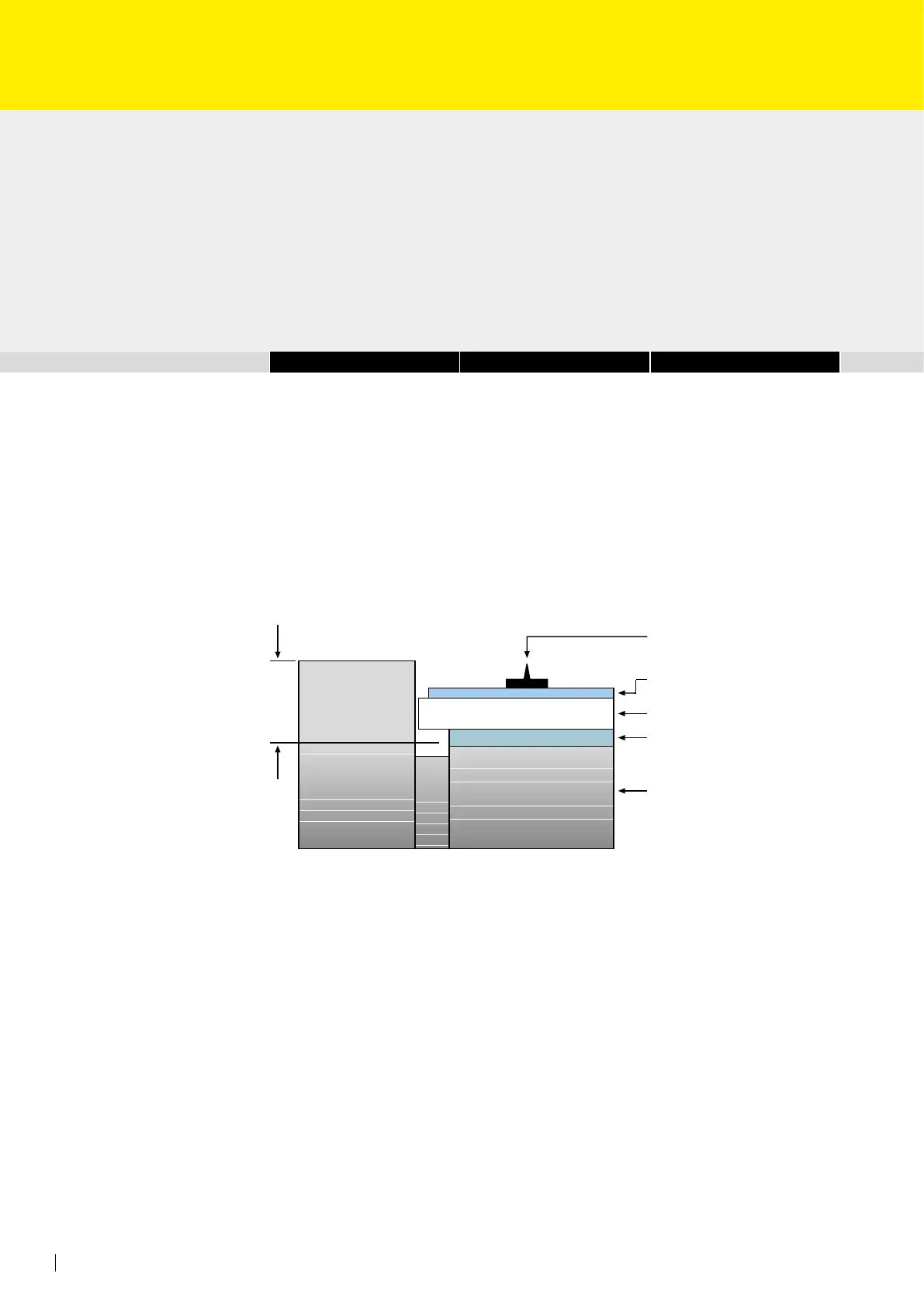

Determination of the cylinder packing thickness depending on the blanket cylinder under-
cuts
RSP processing rule or
RSP exible die
RSP grid sheet or
RSP direct t exible die
RSP base plate
Calibrated packing sheets
Blanked cylinder
