4.6 KBA Rapida 105/106 Coater
Note: The RSP System 2.0 KBA Rapida 105/106 730 mm is only designed for use in
the semi-automatic coater. The grid sheet and register exible die must be installed
manually on the rear edge. This version does not support automatic clamping of the
grid sheet or register exible die.
Use of a grid sheet and register cutting plate
Note: Before installing the grid sheet, unclamp the coating plate (see the operating
manual for your printing press for procedure) and remove the base adhered to
the coating plate. The system may not be operated with additional bases, only the
respective base plate for the grid sheet or register exible die may be used.
Note: Plate exchange with exible coating plate must be activated on the control
station (after availability of the software).

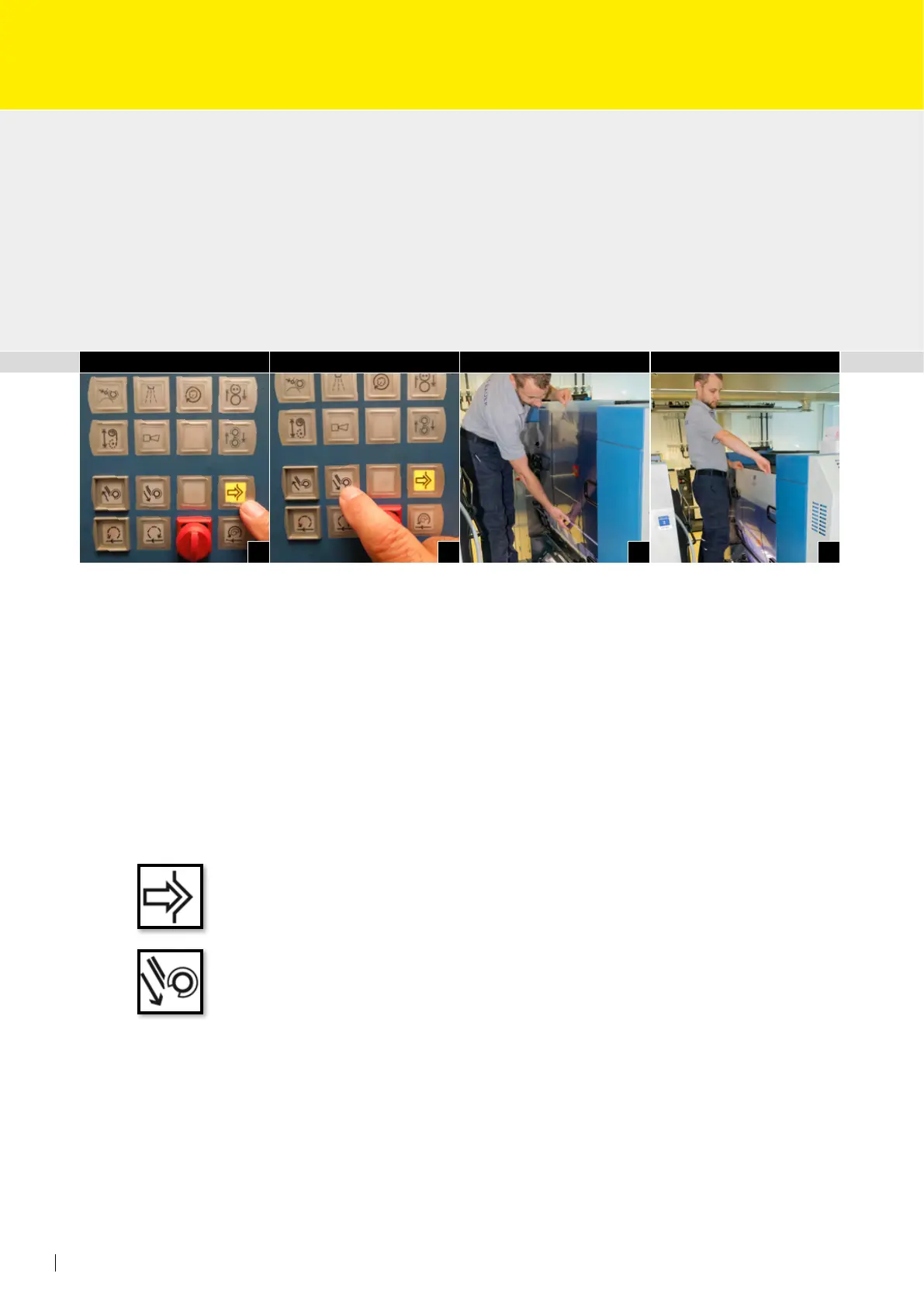

Press the button (Fig. 1) twice in quick succession to activate the clamping program.
1. Clamp grid sheet / register exible die
Press the button (Fig. 2) twice in quick succession to clamp the coating plate. The
machine will turn to the initial printing position.
Open guard downward.
Insert grid sheet / register exible die (Fig. 3) into the clamping bar for the start
of printing by the front edge. Observe dowel pins, grid sheet / register exible die
must be rmly against the dowel pins.
Press button. Plate clamp start of printing closes.
