CITO RSP System 2.0 - CD 74; XL 75 Coating Unit: Grid Sheet Use

1 2 3
64
Operating Manual
321
4.3 CD 74 / XL 75 Coating Unit
Attention: When using a register exible die it is necessary to use 1.2 mm thick
packing (grey RSP register exible die packing). This packing must NOT be used
with a grid sheet.
When using a grid sheet, packing with a thickness of 0.9 mm is required (2 trans-
parent RSP packing sheets). These packing sheets must NOT be used with a register
exible die.
Instructions for use with grid sheet
• Remove anilox roller
• Remove protective cover on coating cylinder
• Remove blanket

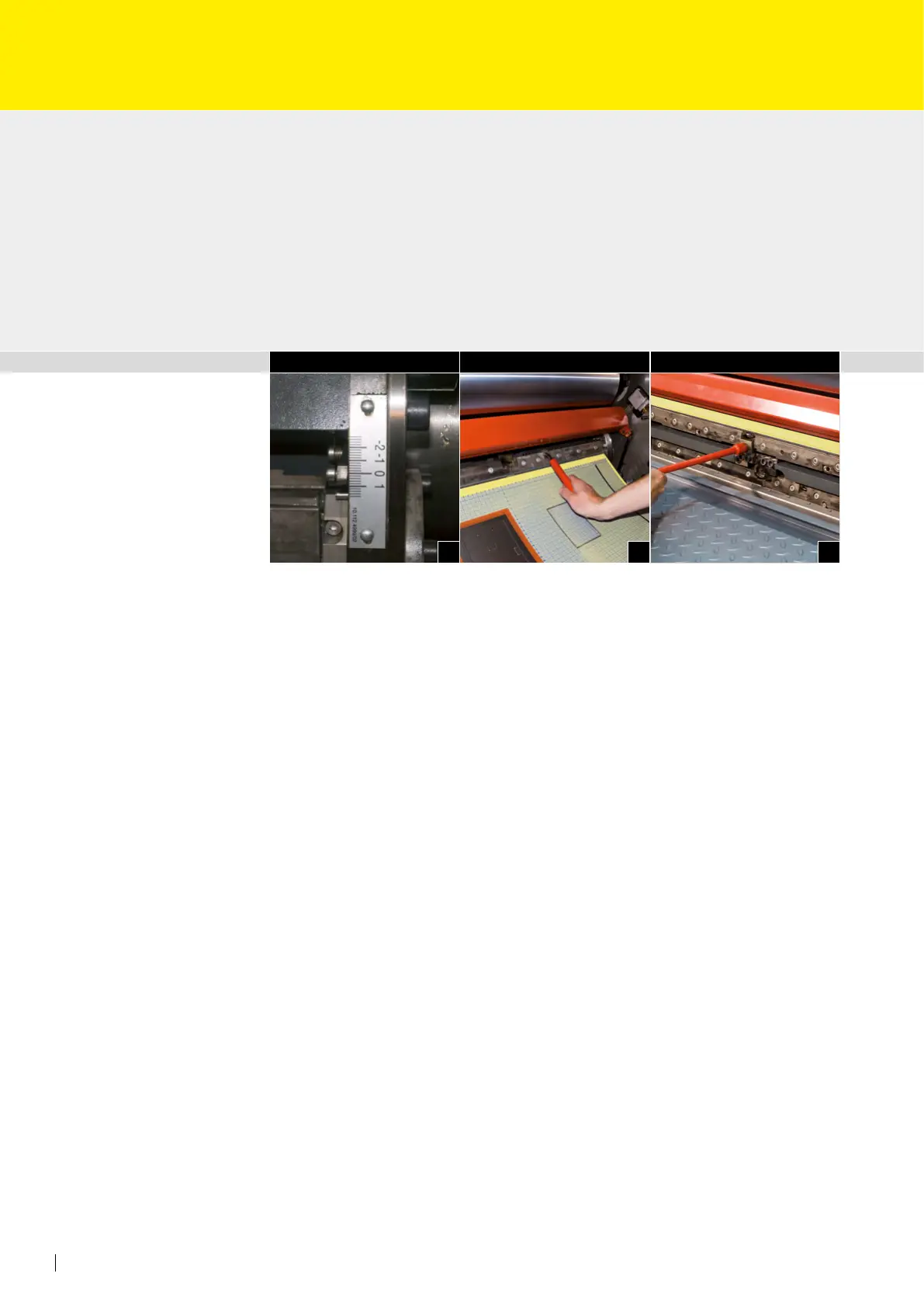

• Set print start pointer on operating side to + 0.4 mm (2 stops) (Fig. 1)
• Unscrew front and rear clamp eccentrics
• Fasten 2 RSP packing sheets each 0.45 mm thick into pass rail and retaining rail.
• Ensure that no packing foils are attached to blanket cylinder, otherwise adjust packings
as necessary.
• Fit retaining rail into holes on cylinder channel
• Insert plastic base plate with clamping rail into front clamping rail mounting
• Hang grid sheet into front clamping rail and close the eccentric (Fig. 2)
• Activate the pressure roller
• Draw in the grid sheet
• Hang the grid sheet into rear clamping rail and close the eccentric
• Release the pressure roller
• Clamp grid sheet with clamping bolts on rear edge using torque wrench set to 25 Nm
(Fig. 3)
• Tighten front tightening shaft to zero position.
• Check correct tensioning of grid sheet and correct positioning of grid sheet and pack-
ings.
• Reattach protective cover on coating cylinder
