CITO RSP System 2.0 - CD 74; XL 75 Coating Unit: Register Flexible Die Use

1 2 3
65
Operating Manual
3
21
Instructions for use with register exible die
• Remove anilox roller
• Remove protective cover on coating cylinder
• Remove blanket
• Unscrew front and rear clamp eccentrics

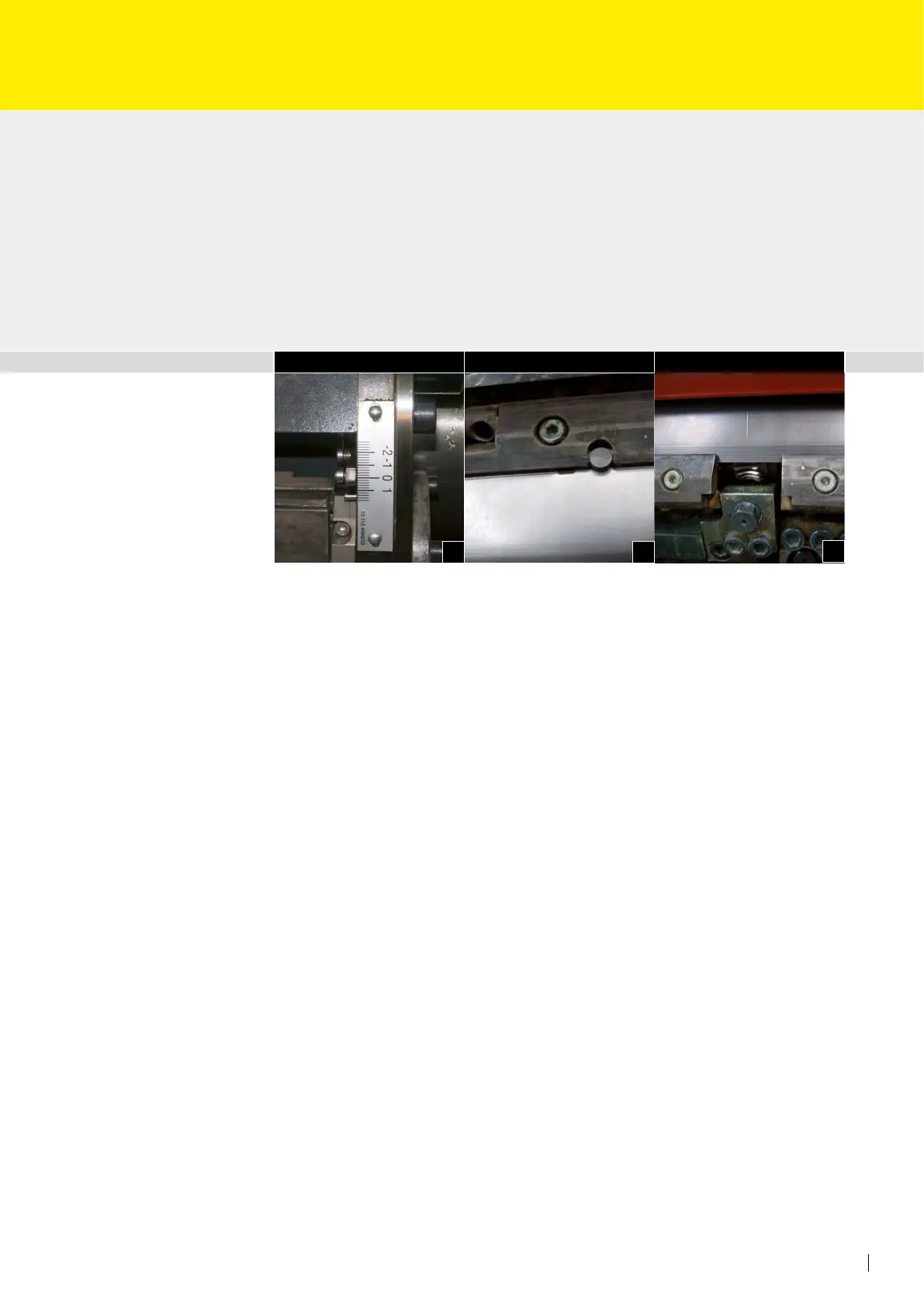

• Set the print start pointer on operating side to + 0.2 mm (1 stop) (Fig. 1)
• Fasten RSP register exible die packing 1.20 mm thick in the pass rail and retaining rail.
• Ensure that no packing foils are attached to the blanket cylinder, otherwise adjust the
packings as necessary.
• Fit retaining rail into holes on cylinder channel
• Insert plastic base plate with clamping rail into front clamping rail mounting
• Hang RSP register exible die into front clamping rail and close the eccentric (Fig. 2)
• Activate the pressure roller
• Draw in the register exible die
• Hang the register exible die into rear clamping rail and close eccentric
• Disengage the pressure roller
• Clamp register exible die with clamping bolts on rear edge using torque wrench set
to 30 Nm (Fig. 3)
• Tighten front tightening shaft until zero position
• Check correct tensioning of register exible die and correct positioning of register
exible die and packings
• Reattach protective cover on coating cylinder
