Operating Manual
4a3a2a
• Check that all retaining hooks in the upper section of the closure hinge are correctly
engaged
• Draw in the RSP grid sheet or RSP direct t exible die together with the base plate
by inching forward

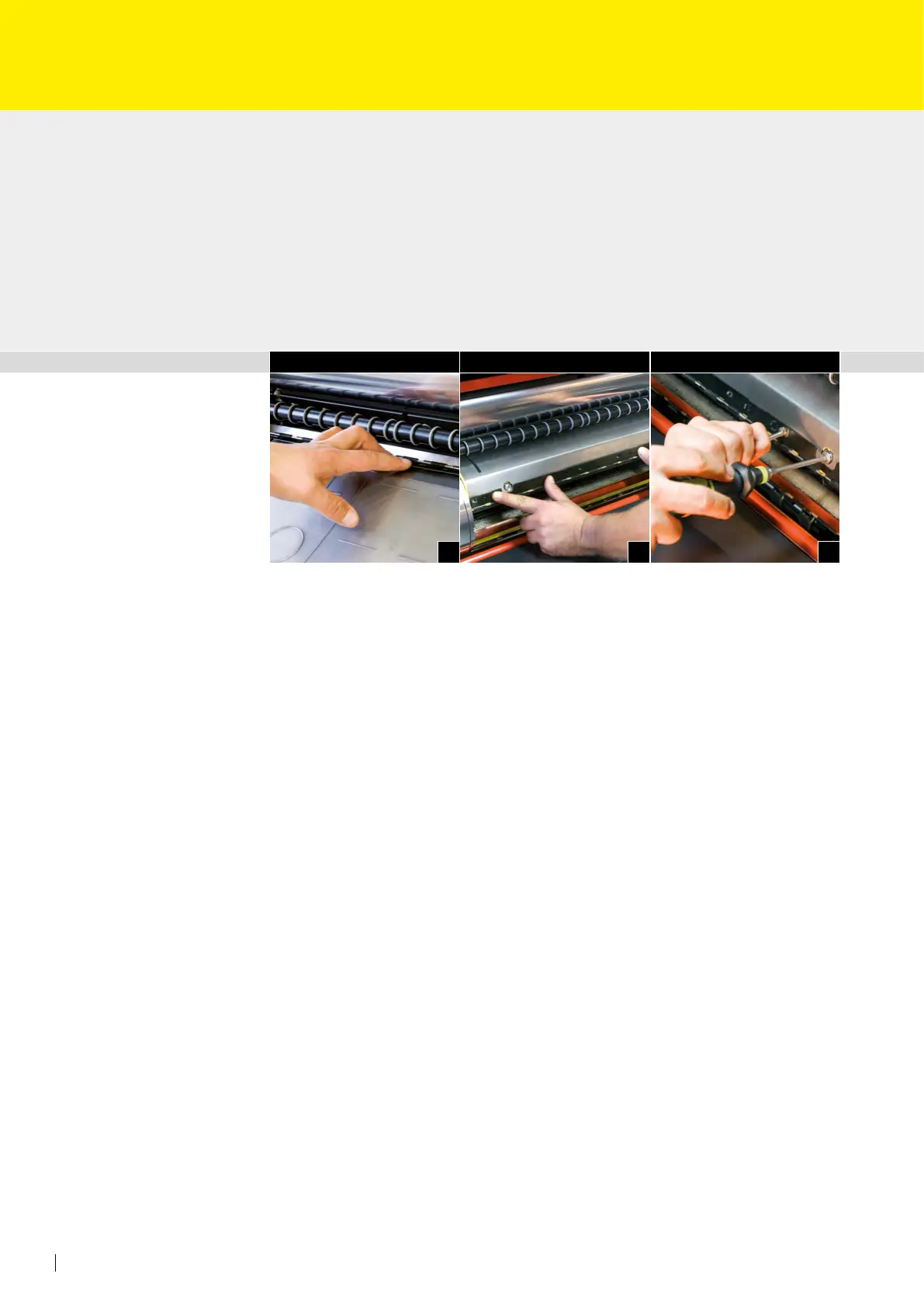

• Loosen the locking screws of the rear closure hinge (Fig. 3)
• Open the rear closure hinge using the unlocking tool
• Hang the RSP grid sheet or RSP direct t exible die in the dome of the rear hinge
lower section and close the closure hinge by pressing together (Fig. 3a)
• Check that all retaining hooks in the upper section of the closure hinge are correctly
engaged
• Now insert the unlocking tool in the recess in the rear closure hinge, pull the lock-
ing hinge downwards to tension the RSP grid sheet or RSP direct t exible die, and
simultaneously tighten the locking screws using the pre-set RSP TX 20 torque screw-
driver (1.2 Nm) (Fig. 4/4a)
• Check that the RSP grid sheet or RSP direct t exible die is lying and in contact with
the RSP base plate at the rear and front edges. If not, repeat the tensioning of the grid
sheet
