CITO RSP System 2.0 - XL 105 Coating Unit: Register Flexible Die Use

67
Operating Manual
876
5
Instructions for use with register exible die
Attention: Set rough register adjustment to zero position prior to installation

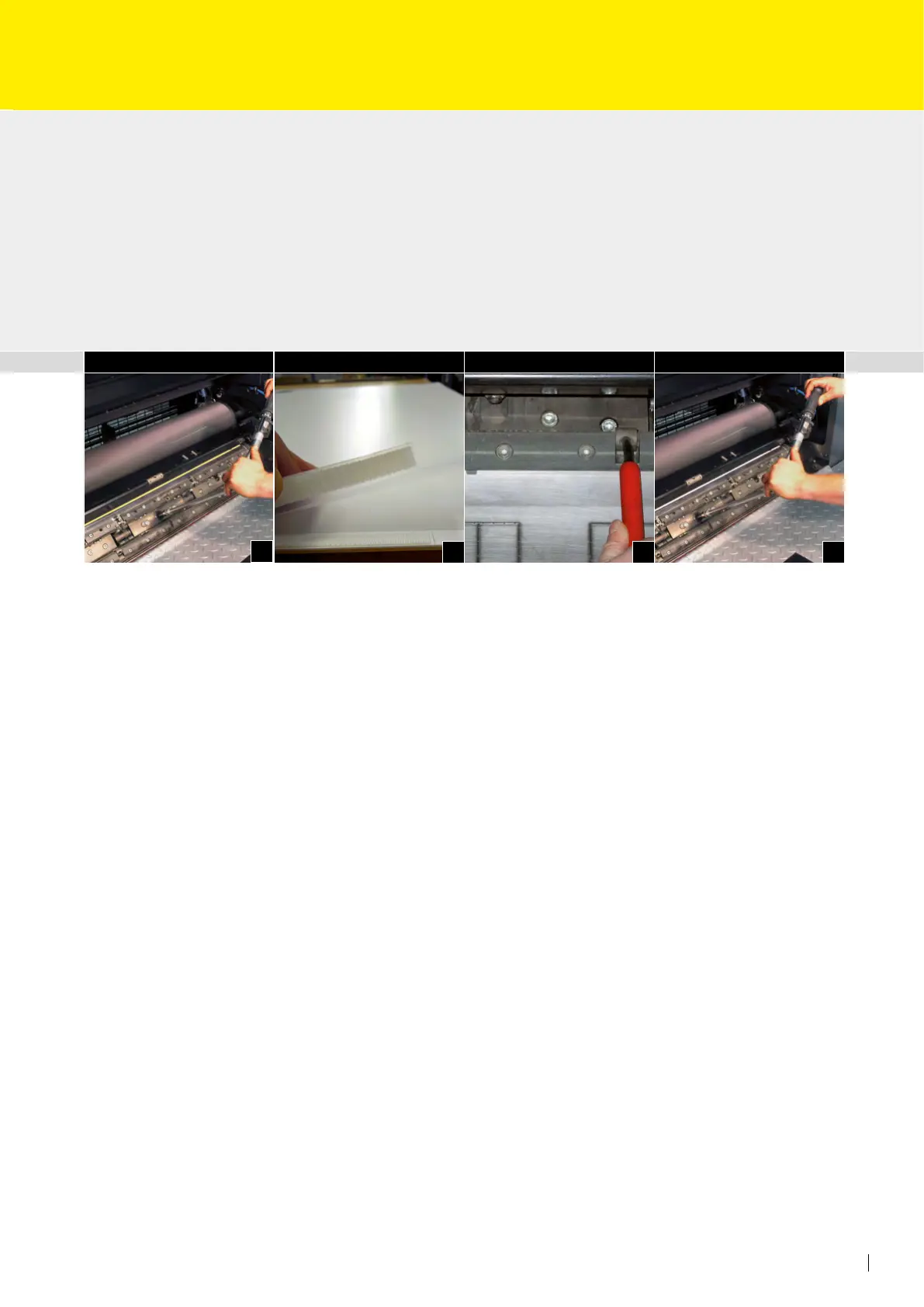

(Fig. 1)
• Remove anilox roller
• Remove channel cover on coating cylinder
• Loosen clamping shafts on coating cylinder
• Remove coating blanket/coating plate and packings
• Connect RSP base plate with a thickness of 1.9 mm with the addition-
al packing with a thickness of 0.5 mm by means of hook and loop fasten-
er (Fig. 6), secure into packing clamping rail and hang into the machine (Fig. 2).
Ensure that no packing foils are attached to the blanket cylinder; if these are present
the adhered packing foils should be removed.
• Move register exible die into the front clamping device and pay attention to correct
tting on the register pins, close clamp eccentric on the front clamping device (Fig. 7)
• Inch the register exible die forwards
• Insert the register exible die into rear clamping device, activate manual pressure roll-
er, then close the centre clamp eccentric. Then close the right-hand and left-hand
clamp eccentrics (Fig. 4)
• Disengage the manual and pneumatic pressure roller once more
• Clamp register exible die using torque wrench set to 35 Nm (Fig. 8)
• Reattach channel cover on coating cylinder
