T-Series Traffic Director Installation, Configuration and Administration Guide B-3
Replacing an AC Power Supply

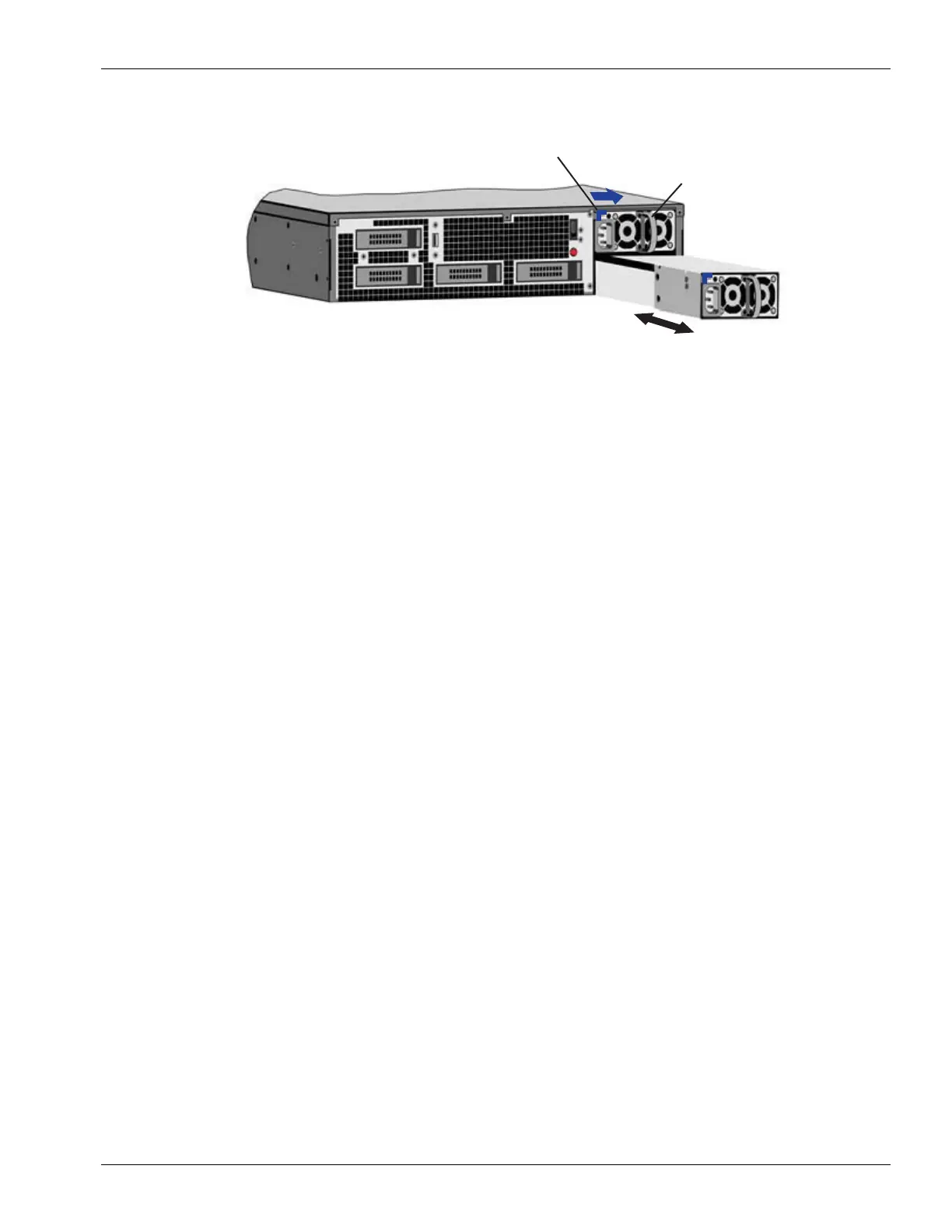

Figure B-1 Replacing a Power Supply (AC or DC)
Step 3
Disconnect the power cord from the power supply that you are removing.
Step 4 Grasp the power-supply handle. Use the release latch to free the power supply from the bay.
See Figure B-1.
Step 5 Pull the power supply part of the way out of the bay, then release the latch and support the
power supply as you pull it the rest of the way out of the bay.
Step 6 Slide the replacement power supply into the bay until the retention latch clicks into place.
Step 7 Connect the power cord for the new power supply to the power-cord connector on the power
supply. See Figure B-2.
Handle
Use lever to release
power supply
