T-Series Traffic Director Installation, Configuration and Administration Guide 1-11
Common Hardware Features
Model T1200 Hardware

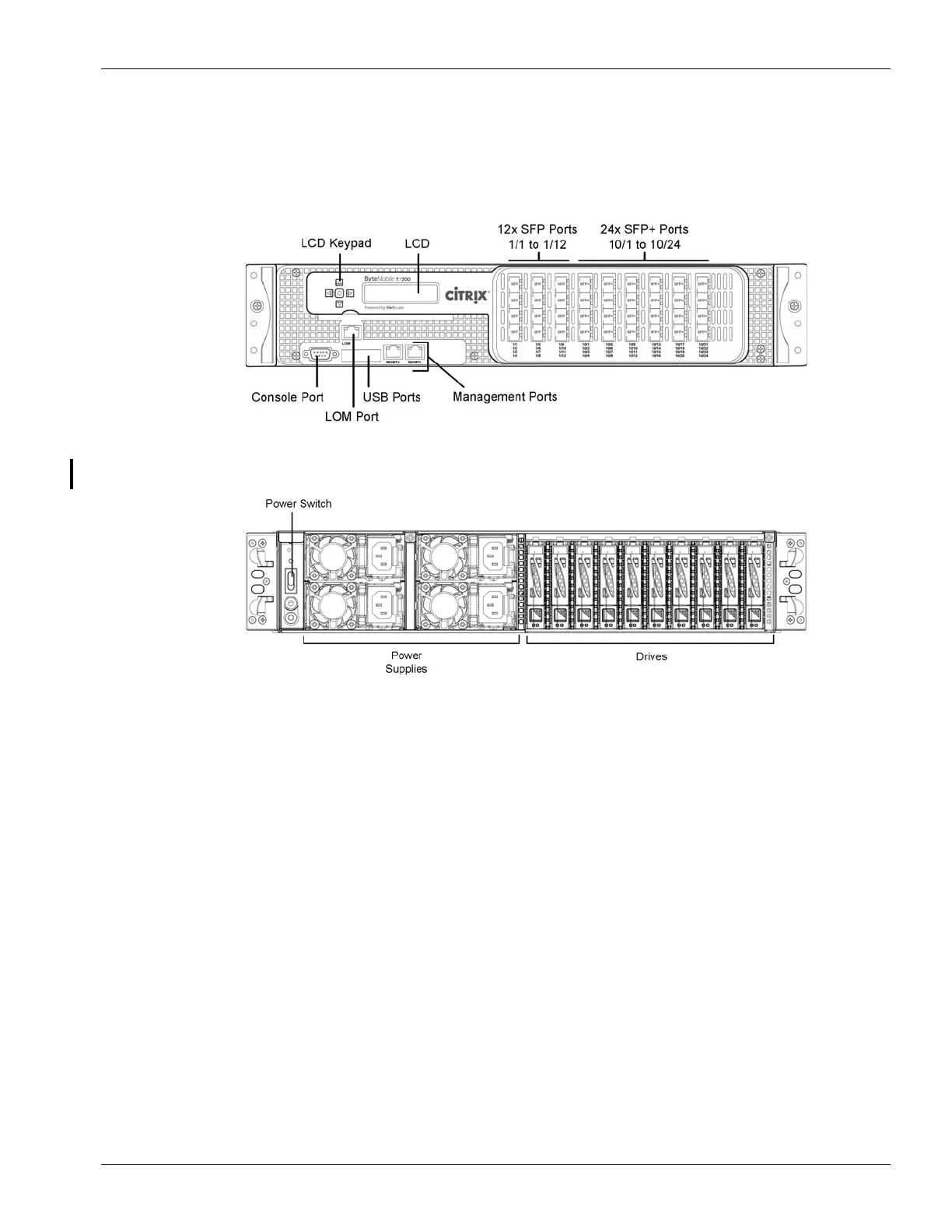

The T1200 front panel is shown in Figure 1-7, and the rear panel is shown in Figure 1-8.
Figure 1-7 T1200 Front Panel
Figure 1-8 T1200 Rear Panel
Each T1200 has front panel and back panel hardware components. The front panel has an
LCD display with keypad, a lights-out management port (LOM), RS-232 console port, two
Ethernet management ports, a set of twelve (12) 1G SFP data plane ports and twenty-four
(24) 10G SFP+ data plane ports. The back panel provides access to the power supplies, fans,
hard disk drives, and a USB port.
Common Hardware Features
LCD Display
The LCD display on the front of every T1000 displays messages about the current operating
status of the T1000. These messages communicate whether your T1000 has started properly
and is operating normally. If the T1000 is not operating normally, the LCD displays
troubleshooting messages.
The LCD displays real-time statistics, diagnostic information, and active alerts. The
dimensions of the LCD limit the display to two lines of 16 characters each, causing the
displayed information to flow through a sequence of screens. Each screen shows
information about a specific function.
