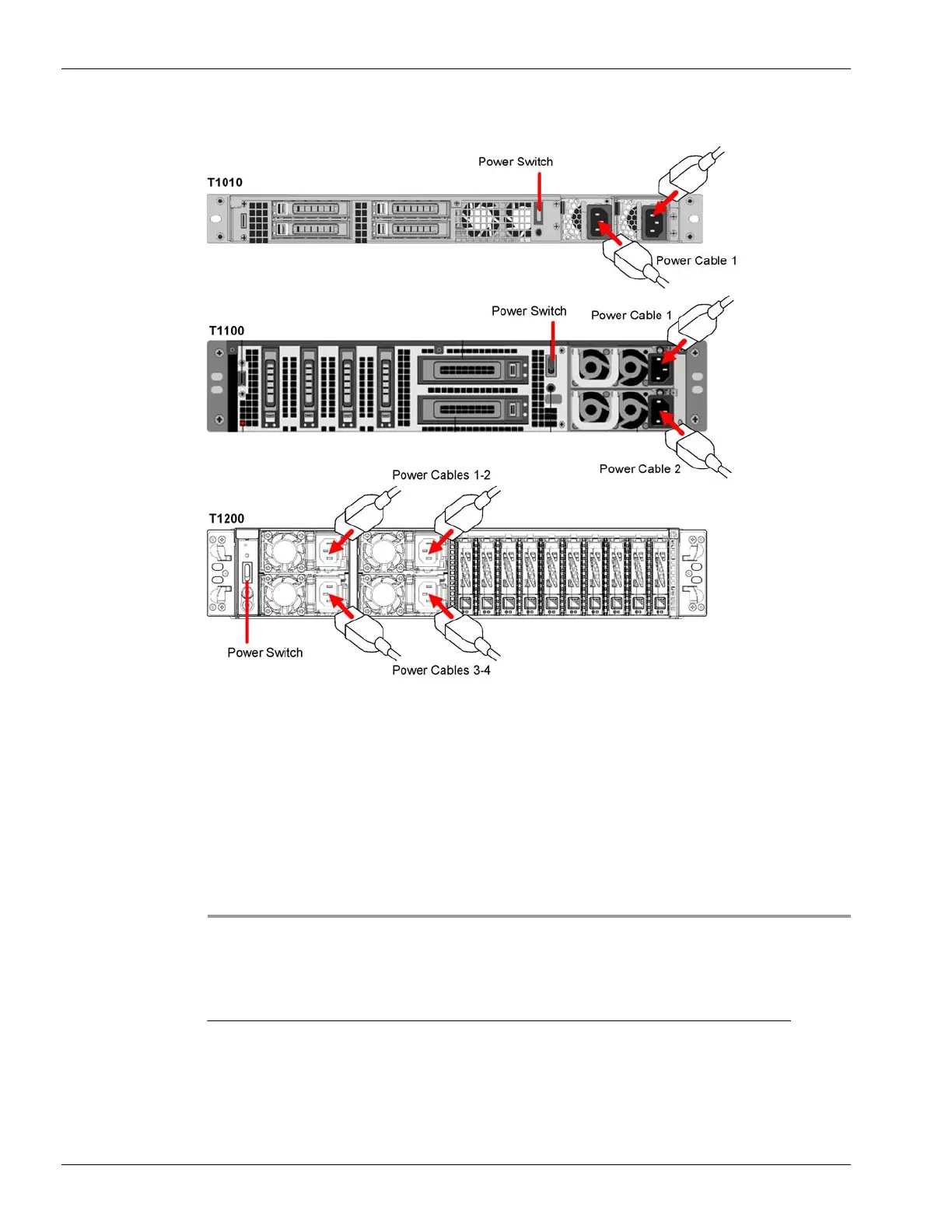

Figure B-2 Connecting AC Power
Step 8
Route the power cord through the power-supply handle and through any cable clamps on the
rear of the server, to prevent the power cord from being accidentally pulled out when you
slide the server in and out of the rack.
Step 9 Connect the power cord to a properly grounded electrical outlet.
Step 10 Make sure that the error LED on the power supply is not lit, and that the dc power LED and
ac power LED on the power supply are lit, indicating that the power supply is operating
correctly.
Step 11 Return or dispose of the failed unit in accordance with your facility’s procedures and local
environmental regulations.
Replacing a DC Power Supply
Attention: Only trained service personnel other than Bytemobile service technicians are
authorized to install and remove the -48 volt DC power supply, and make the
connections to and disconnections from the -48 volt DC power source.
