T-Series Traffic Director Installation, Configuration and Administration Guide 2-11
Making Data Plane Connections

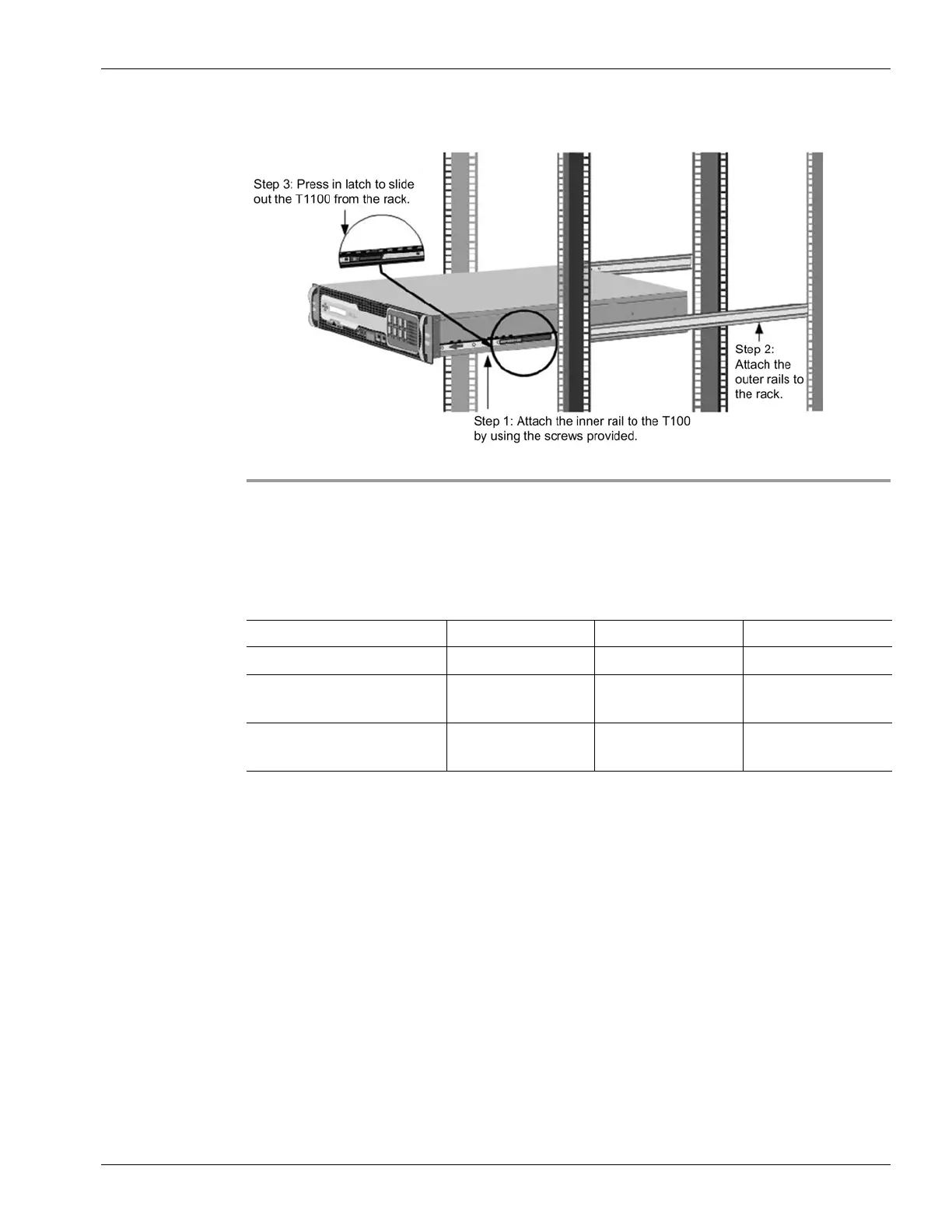

Figure 2-4 Rack Mounting the T1000
Making Data Plane Connections
The T1000 has a set of of RJ45, SFP, and/or SFP+ ports that are used to connect the T1000
data plane to intermediate switches. Refer to the following table and figure:
Ports T1010 T1100 T1200
Data Plane Ports: 1G RJ45
6 none none
Data Plane Ports:
1000BASE-X SFP
6none12
Data Plane Ports:
10GBASE-X SFP+
none
8 or 16
24
