2-10 T-Series Traffic Director Installation, Configuration and Administration Guide
Chapter 2 Installing the T1000
For round-hold, threaded racks, remove the studs and discard. Secure the rail to the rack by
using the flathead screws that were holding the studs in place. For square-hole and
round-hole non-threaded racks, insert studs into hole in the rear of the rack.

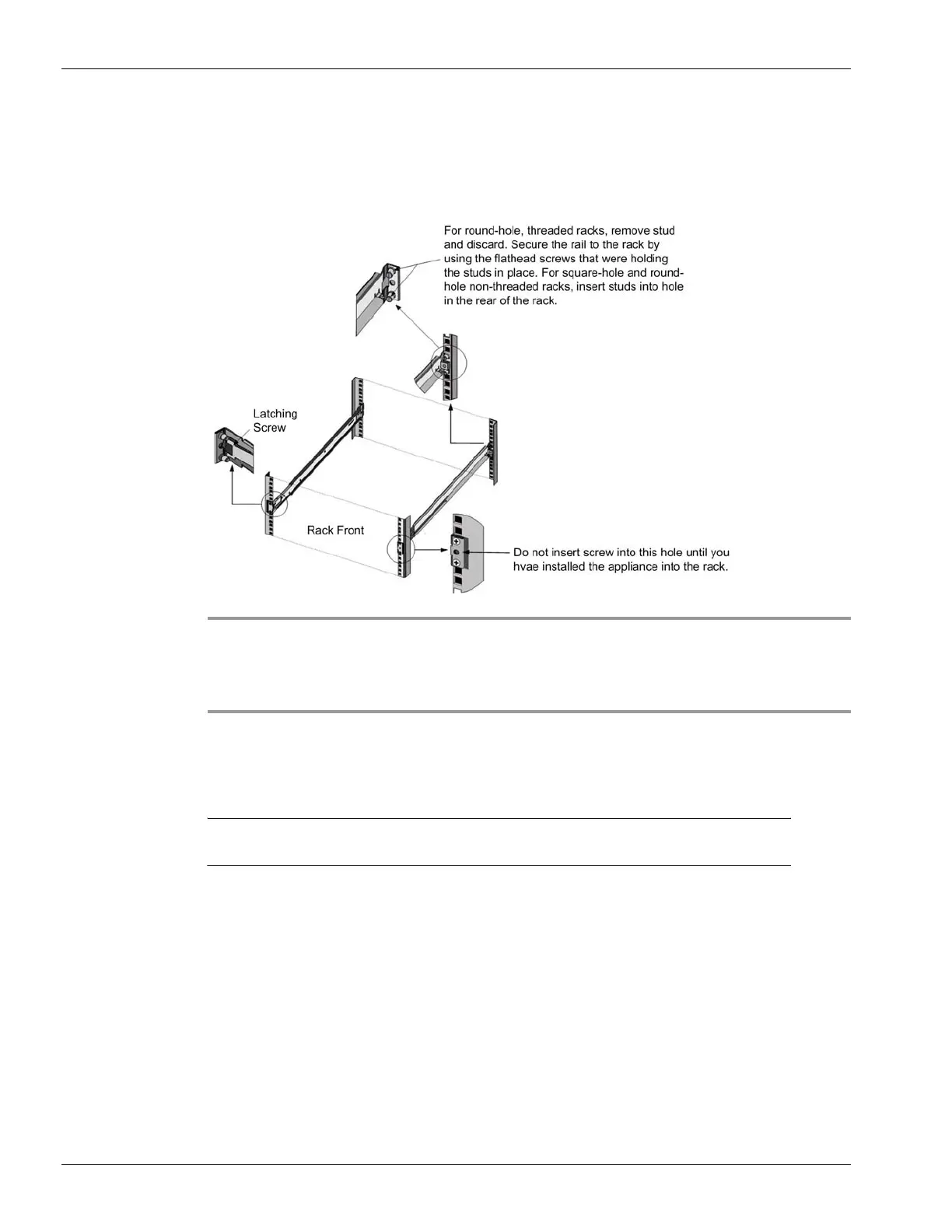

Figure 2-3 Installing the Rail Assembly to the Rack
Installing the T1000 in the Rack
Step 1 Align the inner rails, attached to the T1000, with the rack rails.
Step 2 Slide the T1000 into the rack rails, keeping the pressure even on both sides.
Step 3 Verify that the T1000 is locked in place by pulling it forward out of the rack.
Note: The following figure shows the T1100 hardware model. Procedure and rail
location are similar for T1010 and T1200 models.
