T-Series Traffic Director Installation, Configuration and Administration Guide 2-9
Rack Mounting the T1000

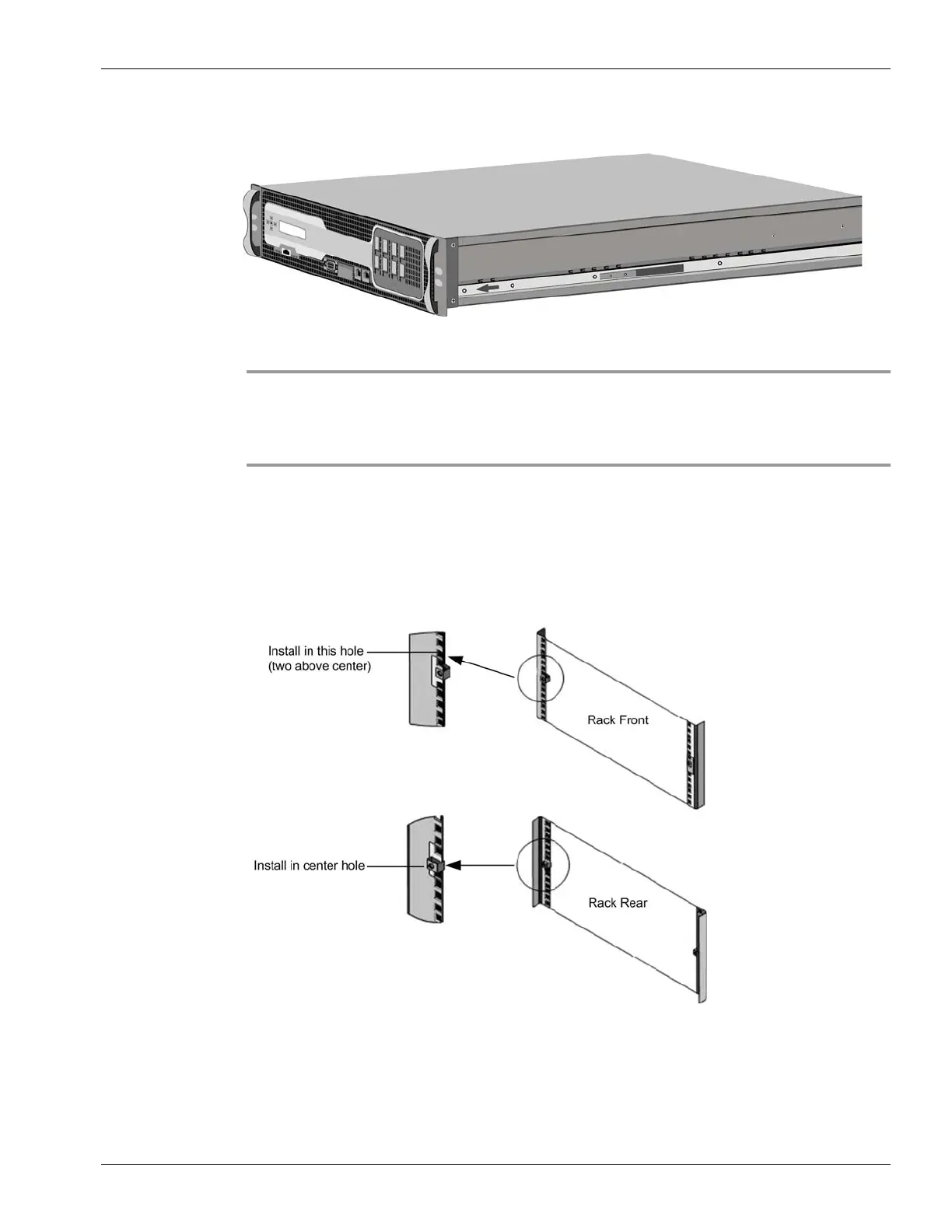

Figure 2-1 Attaching Inner Rails
Step 4
Repeat steps 1 through 3 to install the left inner rail on the other side of the T1000.
Installing the Rack Rails on the Rack
Step 1 If you have a round-hole, threaded rack, skip to step 3.
Step 2 Install square nut retainers into the front post and back post of the rack as shown in the
following figures. Before inserting a screw, be sure to align the square nut with the correct
holes. The three holes are not evenly spaced.
Figure 2-2 Installing Retainers into the Rack Posts
Step 3
Install the adjustable rail assembly into the rack as shown in the following figures. Use a
screw to lock the rear rail flange into the rack. With the screw securing the rail in place, you
can optionally remove the latching spring.
