CleaverBrooks FLE - Page 25

750-192 2-9

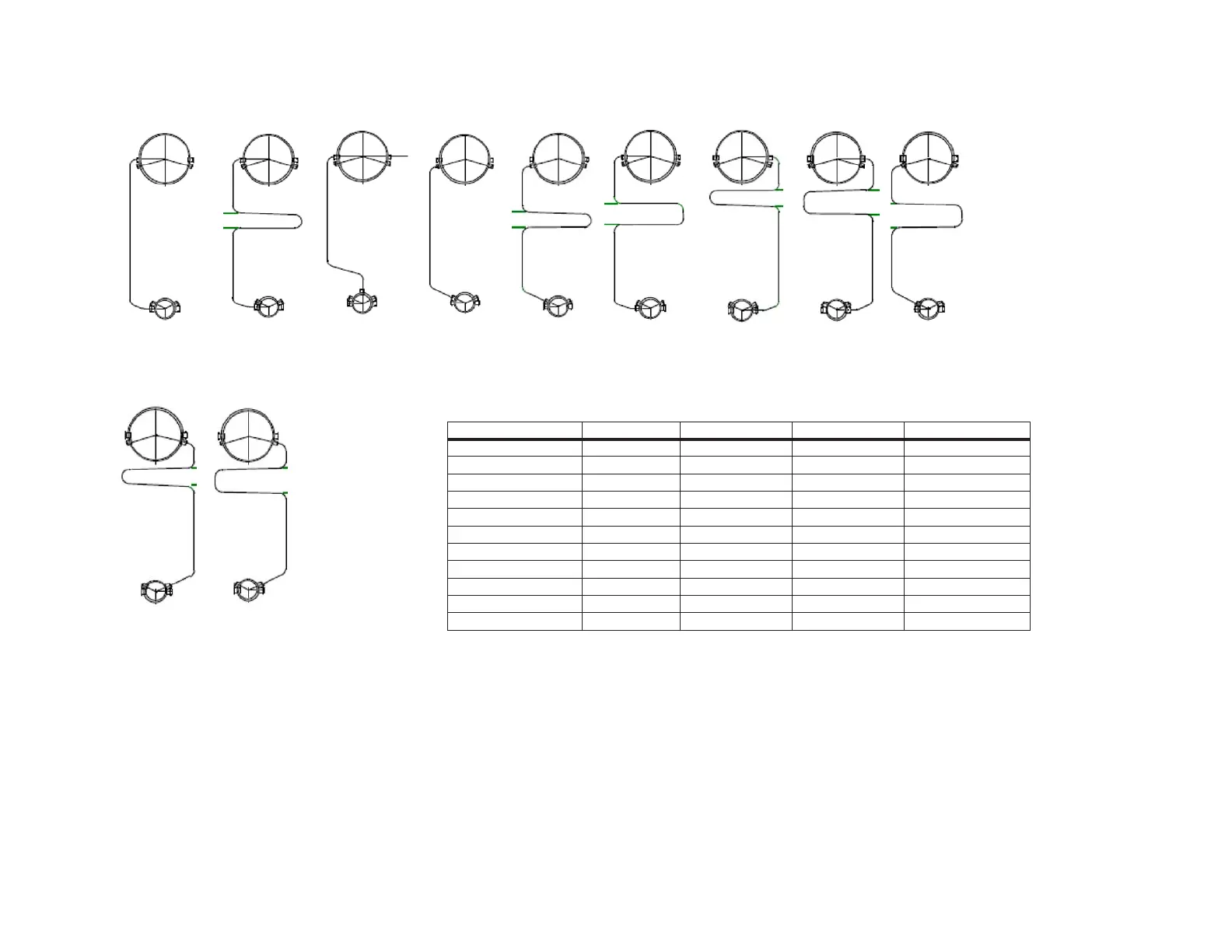

TUBE PATTERNS, STEAM
1 2 3 4 5 6 7 8 9
10 11
Figure 2-18. Tube Patterns - Steam
BOILER SIZE 150-250 300-350 400-600 700-1200
P/N TUBE # 1 93-3200 93-3211 93-3222 93-3233
P/N TUBE # 2 93-3201 93-3212 93-3223 93-3234
P/N TUBE # 3 93-3202 93-3213 93-3224 93-3235
P/N TUBE # 4 93-3203 93-3214 93-3225 93-3236
P/N TUBE # 5 93-3204 93-3215 93-3226 93-3237
P/N TUBE # 6 93-3205 93-3216 93-3227 93-3238
P/N TUBE # 7 93-3206 93-3217 93-3228 93-3239
P/N TUBE # 8 93-3207 93-3218 93-3229 93-3240
P/N TUBE # 9 93-3208 93-3219 93-3230 93-3241
P/N TUBE # 10 93-3209 93-3220 93-3231 93-3242
P/N TUBE # 11 93-3210 93-3221 93-3232 93-3243
