2-10 750-192
T
UBE PATTERNS, HOT WATER
1 2 3 4 5 6 7 8 9
10 11

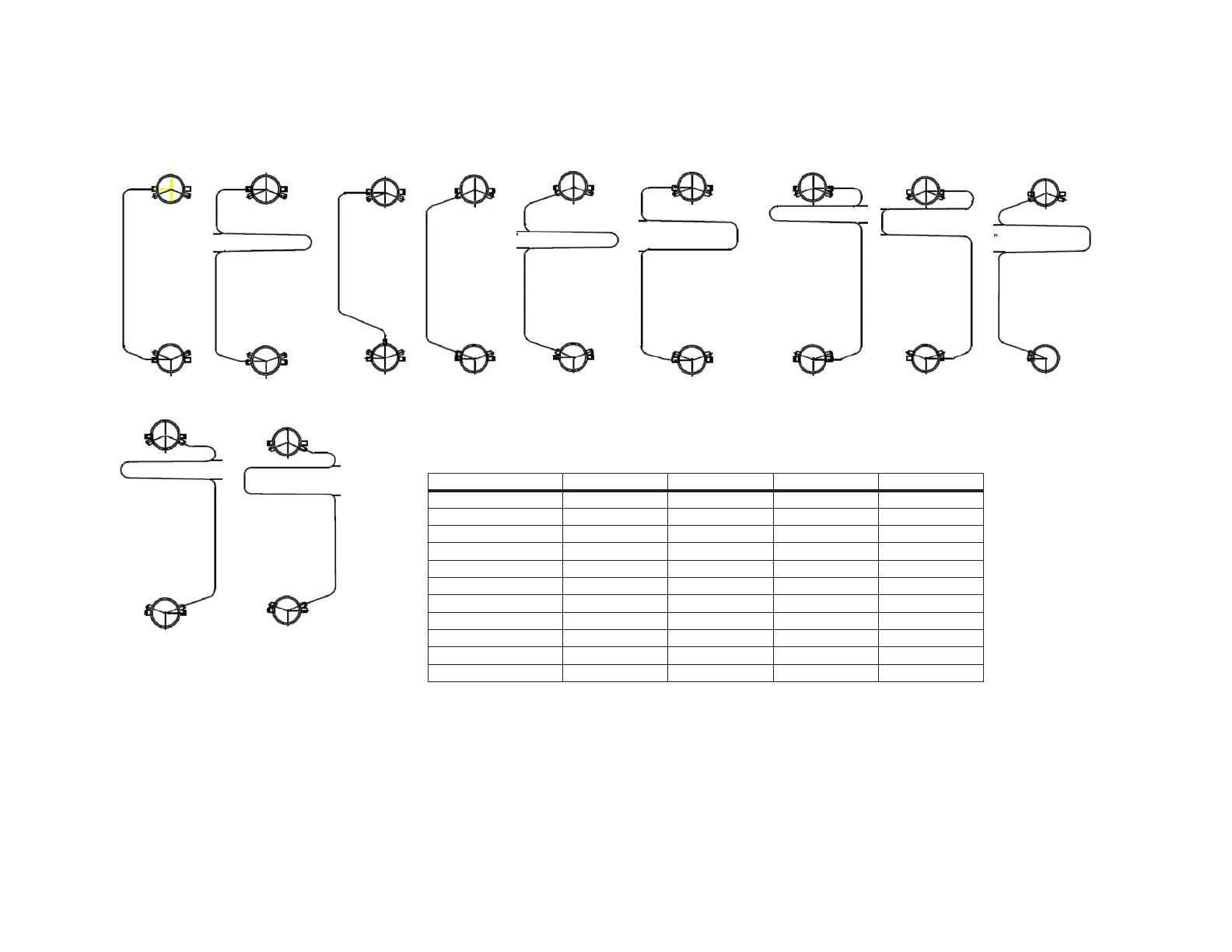

Figure 2-17. Tube Patterns - Hot Water
BOILER SIZE 150-250 300-350 400-600 700-1200
P/N TUBE #1 93-2685 93-2696 93-2707 93-2718
P/N TUBE #2 93-2686 93-2697 93-2708 93-2719
P/N TUBE #3 93-2687 93-2698 93-2709 93-2720
P/N TUBE #4 93-2688 93-2699 93-2710 93-2721
P/N TUBE #5 93-2689 93-2700 93-2711 93-2722
P/N TUBE #6 93-2690 93-2701 93-2712 93-2723
P/N TUBE #7 93-2691 93-2702 93-2713 93-2724
P/N TUBE #8 93-2692 93-2703 93-2714 93-2725
P/N TUBE #9 93-2693 93-2704 93-2715 93-2726
P/N TUBE #10 93-2694 93-2705 93-2716 93-2727
P/N TUBE #11 93-2695 93-2706 93-2717 93-2728
