CleaverBrooks FLE - Page 27

750-192 2-11
STEAM
HOT WATER

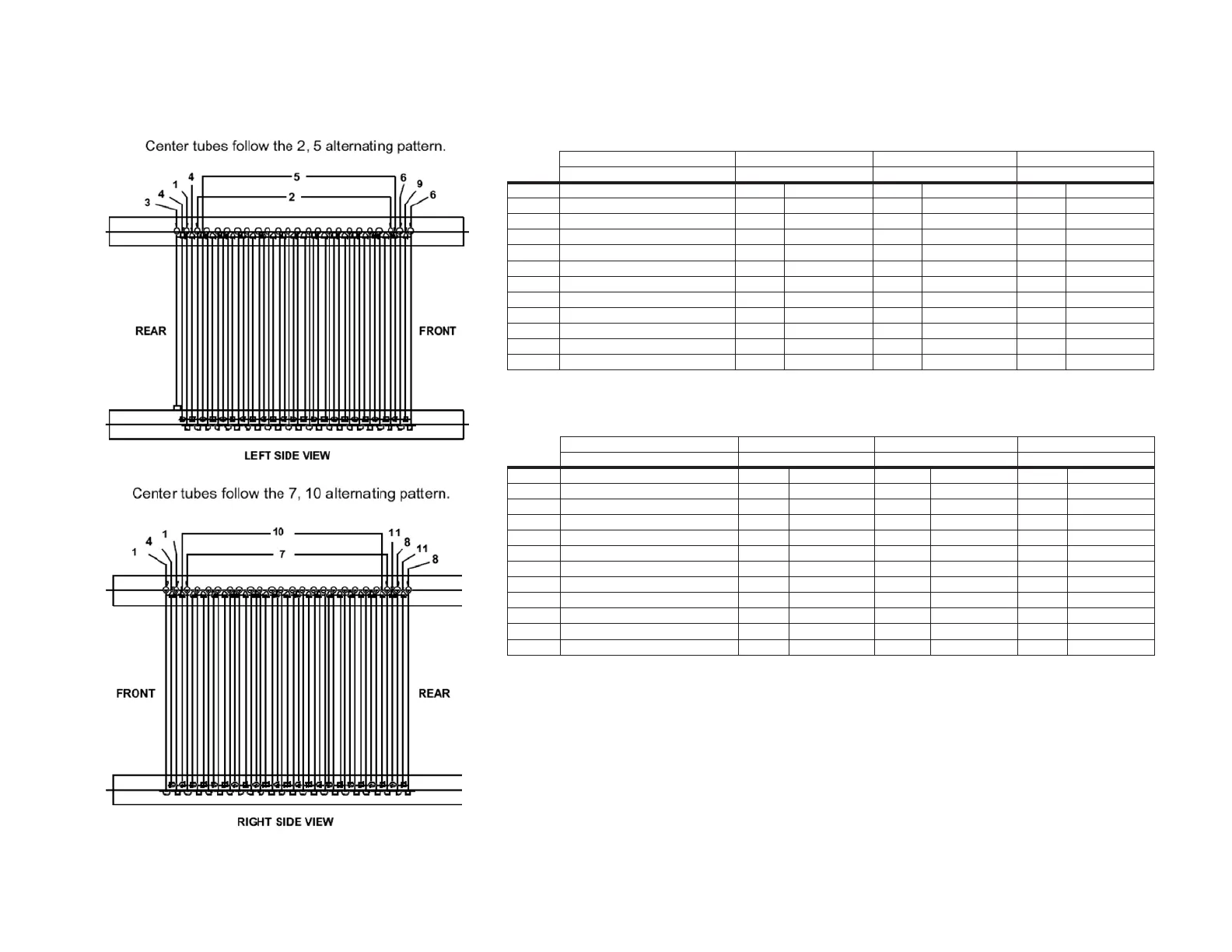

Figure 2-19. Tube Arrangement, Boiler Sizes 150 to 600
Boiler Sizes 150-250 300-350 400-600
Assembly Part No. 93-3244 93-3245 93-3246
ITEM DESCRIPTION REQ PART NO REQ PART NO REQ PART NO
1 TUBE PATTERN, NO. 1 3 93-3200 3 93-9211 3 93-3222
2 TUBE PATTERN, NO. 2 15 93-3201 17 93-9212 24 93-3223
3 TUBE PATTERN, NO. 3 1 93-3202 1 93-9213 1 93-3224
4 TUBE PATTERN, NO. 4 3 93-3203 3 93-9214 3 93-3225
5 TUBE PATTERN, NO. 5 15 93-3204 17 93-9215 24 93-3226
6 TUBE PATTERN, NO. 6 2 93-3205 2 93-9216 2 93-3227
7 TUBE PATTERN, NO. 7 15 93-3206 17 93-9217 24 93-3228
8 TUBE PATTERN, NO. 8 2 93-3207 2 93-9218 2 93-3229
9 TUBE PATTERN, NO. 9 1 93-3208 1 93-9219 1 93-3230
10 TUBE PATTERN, NO. 10 15 93-3209 17 93-9220 24 93-3231
11 TUBE PATTERN, NO. 11 2 93-3210 2 93-9221 2 93-3232
Boiler Sizes 150-250 300-350 400-600
Assembly Part No. 93-2729 93-2737 93-2738
ITEM DESCRIPTION REQ PART NO REQ PART NO REQ PART NO
1 TUBE PATTERN, NO. 1 3 93-2685 3 93-2696 3 93-2707
2 TUBE PATTERN, NO. 2 15 93-2686 17 93-2697 24 93-2708
3 TUBE PATTERN, NO. 3 1 93-2687 1 93-2698 1 93-2709
4 TUBE PATTERN, NO. 4 3 93-2688 3 93-2699 3 93-2710
5 TUBE PATTERN, NO. 5 15 93-2689 17 93-2700 24 93-2711
6 TUBE PATTERN, NO. 6 2 93-2690 2 93-2701 2 93-2712
7 TUBE PATTERN, NO. 7 15 93-2691 17 93-2702 24 93-2713
8 TUBE PATTERN, NO. 8 2 93-2692 2 93-2703 2 93-2714
9 TUBE PATTERN, NO. 9 1 93-2693 1 93-2704 1 93-2715
10 TUBE PATTERN, NO. 10 15 93-2694 17 93-2705 24 93-2716
11 TUBE PATTERN, NO. 11 2 93-2695 2 93-2706 2 93-2717
