CleaverBrooks FLE - Page 28

750-192 2-12
STEAM
HOT WATER

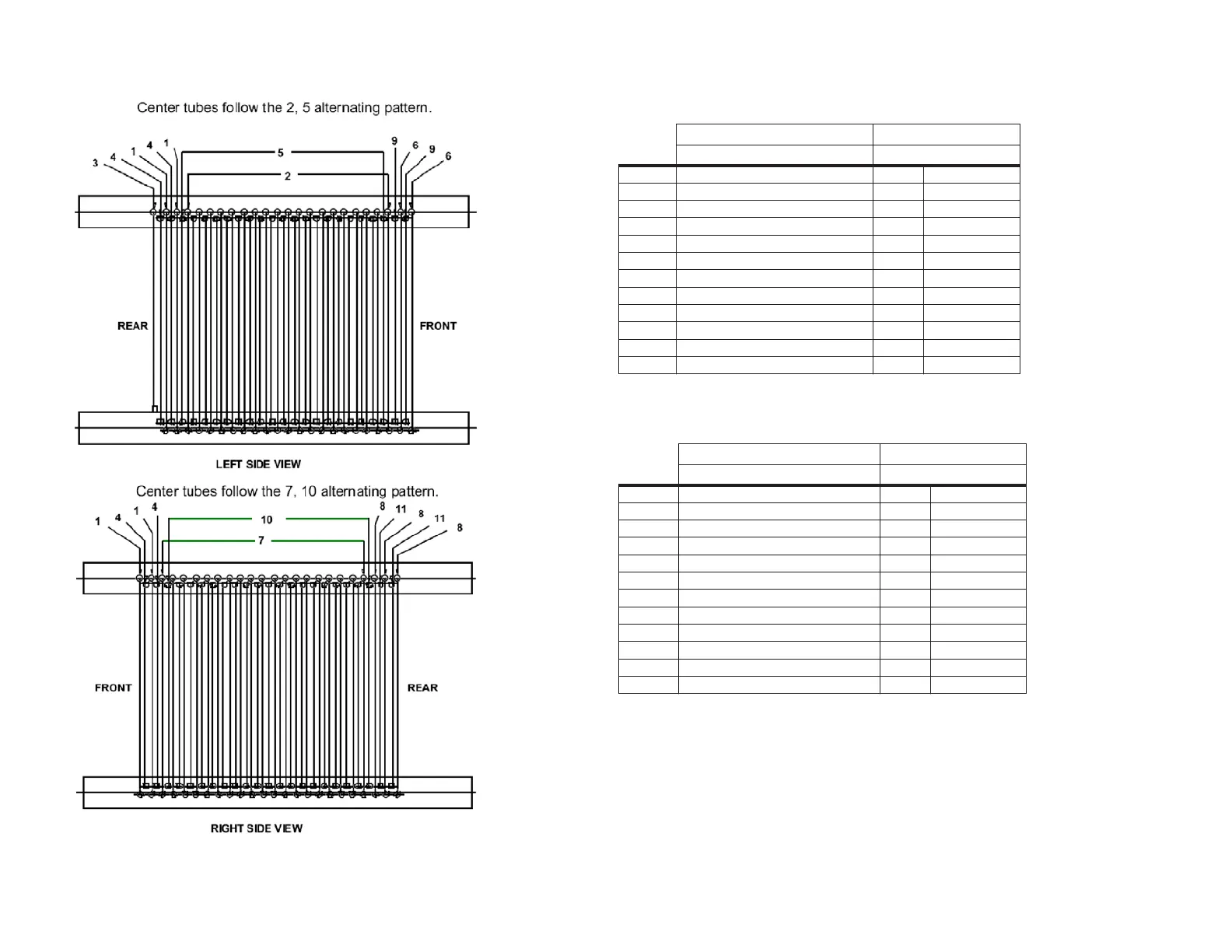

Figure 2-20. Tube Arrangement, Boiler Sizes 700 to 900
Boiler Sizes 700-900
Assembly Part No. 93-3247
ITEM DESCRIPTION REQ PART NO
1 TUBE PATTERN, NO. 1 4 93-3233
2 TUBE PATTERN, NO. 2 30 93-3234
3 TUBE PATTERN, NO. 3 1 93-3235
4 TUBE PATTERN, NO. 4 4 93-3236
5 TUBE PATTERN, NO. 5 30 93-3237
6 TUBE PATTERN, NO. 6 2 93-3238
7 TUBE PATTERN, NO. 7 30 93-3239
8 TUBE PATTERN, NO. 8 3 93-3240
9 TUBE PATTERN, NO. 9 2 93-3241
10 TUBE PATTERN, NO. 10 30 93-3242
11 TUBE PATTERN, NO. 11 2 93-3243
Boiler Sizes 700-900
Assembly Part No. 93-2730
ITEM DESCRIPTION REQ PART NO
1 TUBE PATTERN, NO. 1 4 93-2718
2 TUBE PATTERN, NO. 2 30 93-2719
3 TUBE PATTERN, NO. 3 1 93-2720
4 TUBE PATTERN, NO. 4 4 93-2721
5 TUBE PATTERN, NO. 5 30 93-2722
6 TUBE PATTERN, NO. 6 2 93-2723
7 TUBE PATTERN, NO. 7 30 93-2724
8 TUBE PATTERN, NO. 8 3 93-2725
9 TUBE PATTERN, NO. 9 2 93-2726
10 TUBE PATTERN, NO. 10 30 93-2727
11 TUBE PATTERN, NO. 11 2 93-2728
