CleaverBrooks FLE - Page 29

750-192 2-13
STEAM
HOT WATER

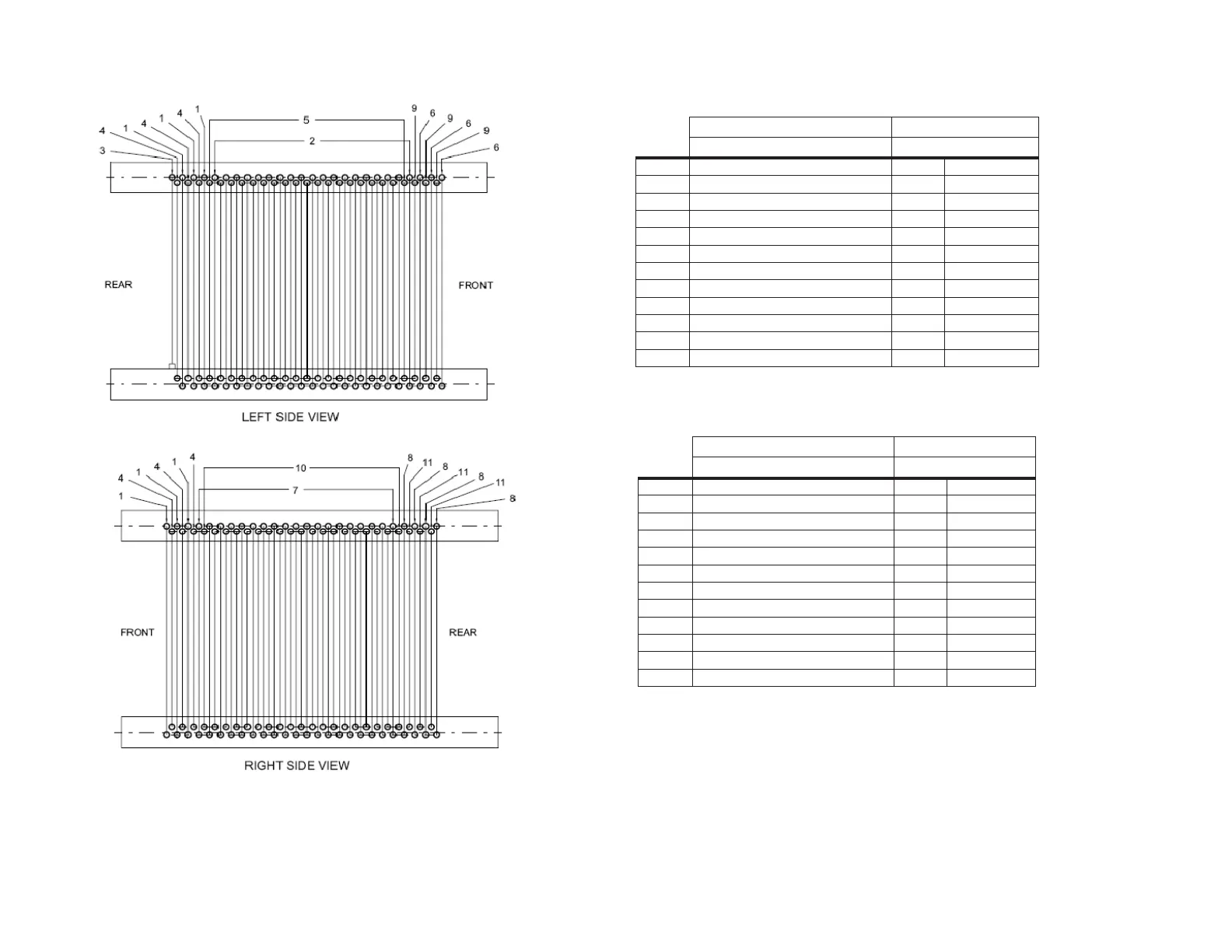

Figure 2-21. Tube Arrangement, Boiler Sizes 1000 to 1200
Boiler Sizes 1000-1200
Assembly Part No. 93-3598
ITEM DESCRIPTION REQ PART NO
1 TUBE PATTERN, NO. 1 6 93-3233
2 TUBE PATTERN, NO. 2 36 93-3234
3 TUBE PATTERN, NO. 3 1 93-3235
4 TUBE PATTERN, NO. 4 6 93-3236
5 TUBE PATTERN, NO. 5 36 93-3237
6 TUBE PATTERN, NO. 6 3 93-3238
7 TUBE PATTERN, NO. 7 36 93-3239
8 TUBE PATTERN, NO. 8 4 93-3240
9 TUBE PATTERN, NO. 9 3 93-3241
10 TUBE PATTERN, NO. 10 36 93-3242
11 TUBE PATTERN, NO. 11 3 93-3243
Boiler Sizes 1000-1200
Assembly Part No. 93-3599
ITEM DESCRIPTION REQ PART NO
1 TUBE PATTERN, NO. 1 6 93-2718
2 TUBE PATTERN, NO. 2 36 93-2719
3 TUBE PATTERN, NO. 3 1 93-2720
4 TUBE PATTERN, NO. 4 6 93-2721
5 TUBE PATTERN, NO. 5 36 93-2722
6 TUBE PATTERN, NO. 6 3 93-2723
7 TUBE PATTERN, NO. 7 36 93-2724
8 TUBE PATTERN, NO. 8 4 93-2725
9 TUBE PATTERN, NO. 9 3 93-2726
10 TUBE PATTERN, NO. 10 36 93-2727
11 TUBE PATTERN, NO. 11 3 93-2728
