Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 76

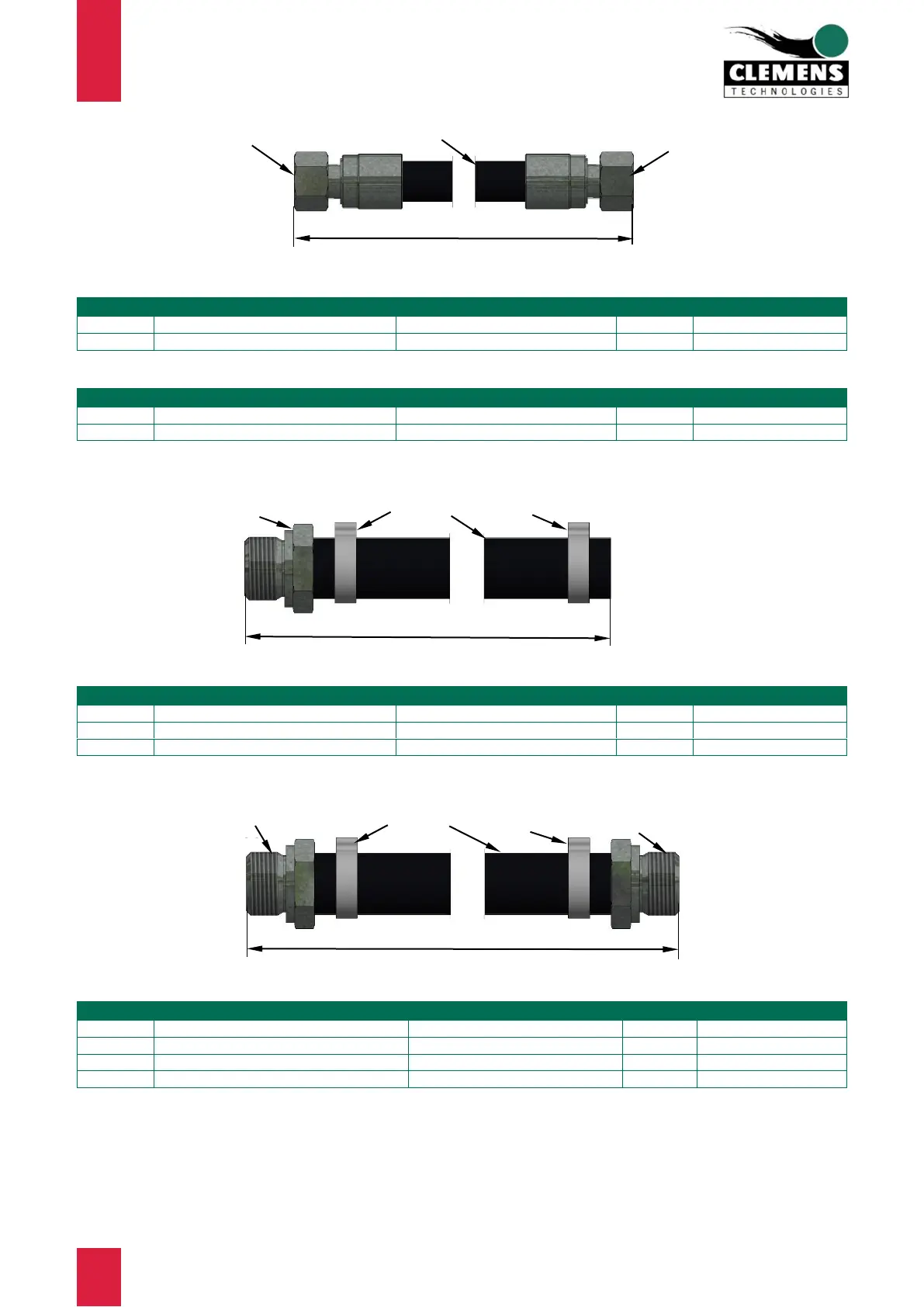

A = Pressure hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose 3000 mm (118.1“)
„L“ = length in mm
1
CW700.001300
2
Pressed fitting
2
CW710.004200
B = Pressure hose RADIUS (2x)
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose 3000 mm (118.1“)
„L“ = length in mm
1
CW700.001200
2
Pressed fitting
2
CW710.003800
C = Return oil hose RADIUS (2x)
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose 4400 mm (173.2“)
„L“ = length in mm
1
CW700.001700
2
Threaded hose stem
1
CW011.620800
3
Clip, 1 eye
2
CW500.034100
D = Return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose 2200 mm (86.6“)
„L“ = length in mm
1
CW700.002100
2
Threaded hose stem
1
CW011.620100
3
Threaded hose stem
1
CW011.620900
4
Clip, 1 eye
2
CW500.034000
“L“ = length in mm incl. pressed fittings
“L“ = length in mm incl. pressed fittings
“L“ = length in mm incl. pressed fittings
2
1
2
2
3
1
3
1
3
33
2
4
4
