WIRING INSTRUCTIONS
(Hardwired HCS)
Route the HCS conduit to a nearby junction box. Use the included
the junction box is fully sealed using appropriate electrical grade
silicone sealant.
Before connecting the HCS service
conductors, please carefully read the
section of this manual titled Installation -
Service Connections. If unsure of the type
of power provided at the service panel,
please consult with the local utility or
call a Service Representative for
assistance.
The three supplied HCS-15, 20, 25, 30 or
40 service conductors use stranded 10
AWG 90ºC copper wire. The three
supplied HCS-50, HCS-60, and HCS-80
service conductors use stranded 8 AWG,
90ºC copper wire.
The insulation of each conductor is color
coded for standard 240V AC installation:
Green: Ground
Black: Line 1 (120V AC to Ground)
Red: Line 2 (120V AC to Ground)
Les trois HCS-15, 20, 25, 30 un HCS-40
service conducteurs fournis utilisent
bloqués câble en cuivre 10 AWG 90ºC.

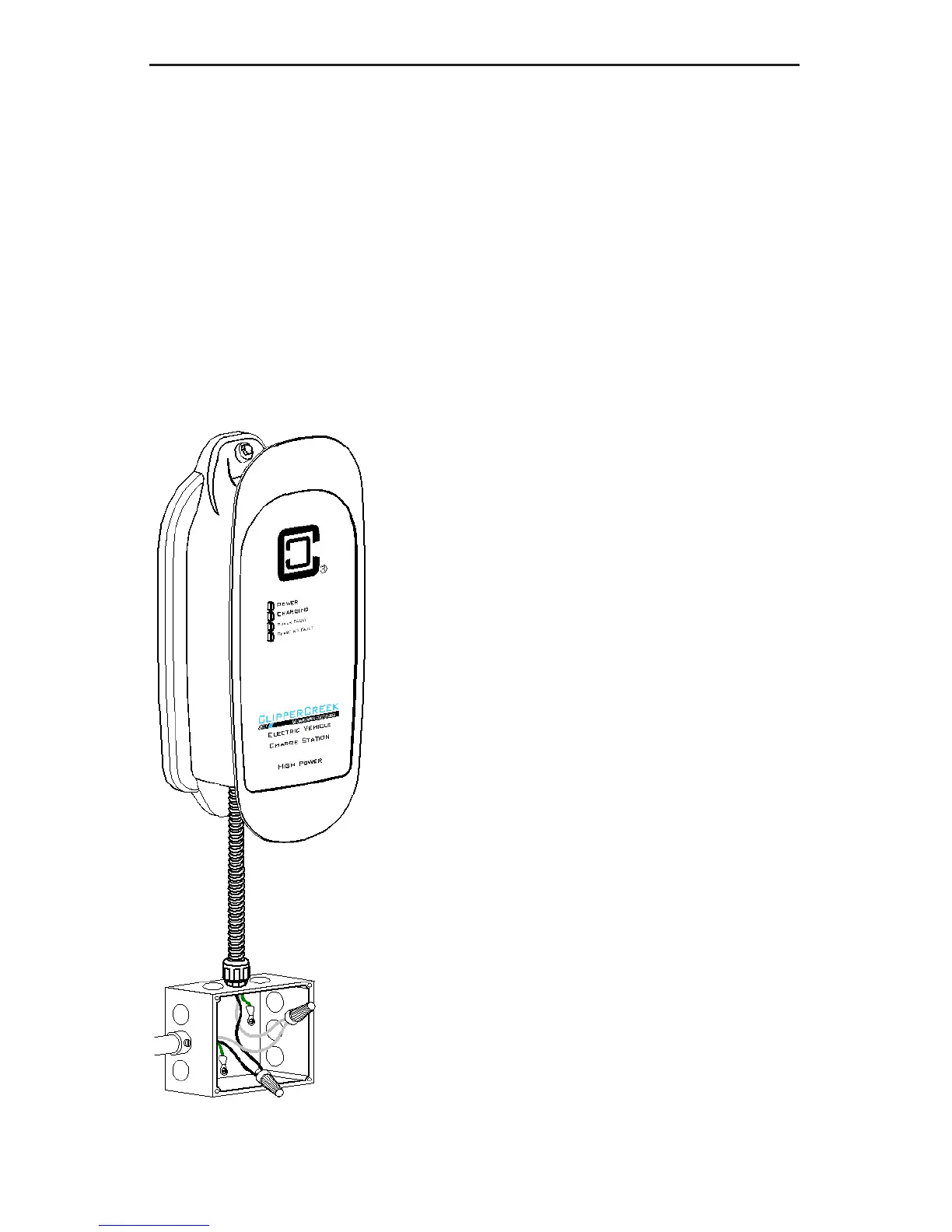

Figure 7:
Wiring the
HCS in a Junction Box
To Next Page
